Toyota CAMRY 变速器油冷却器和配管(ATM) — Figure 3514

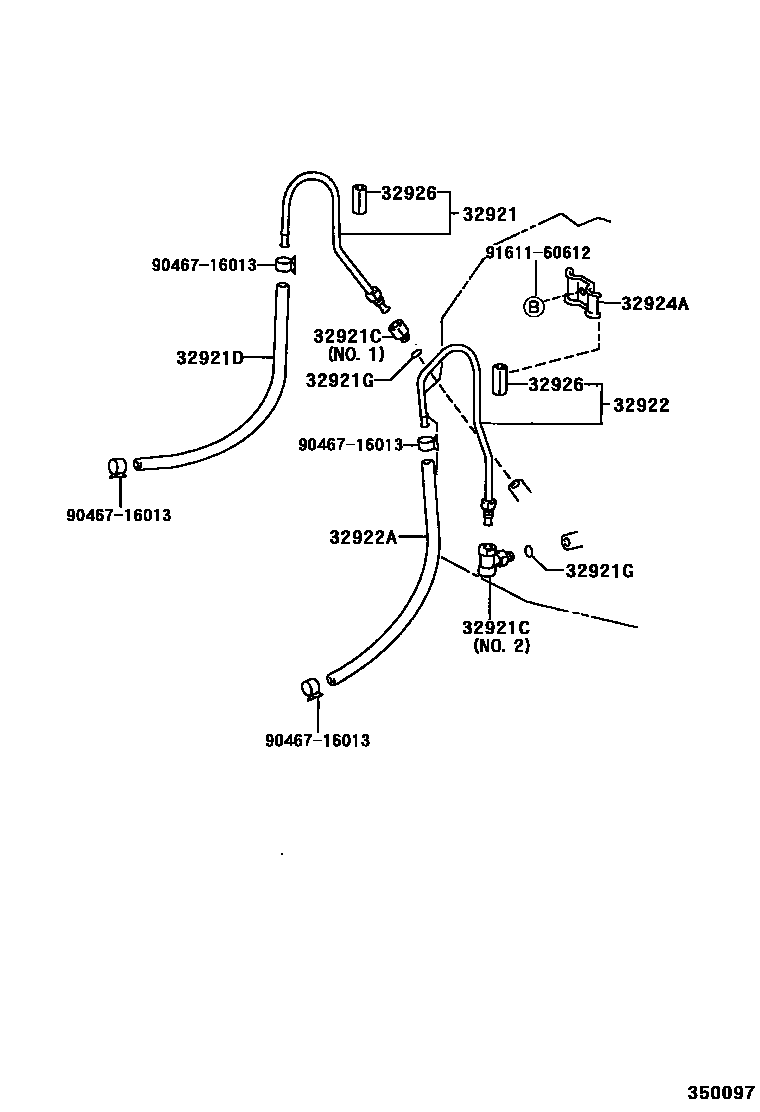

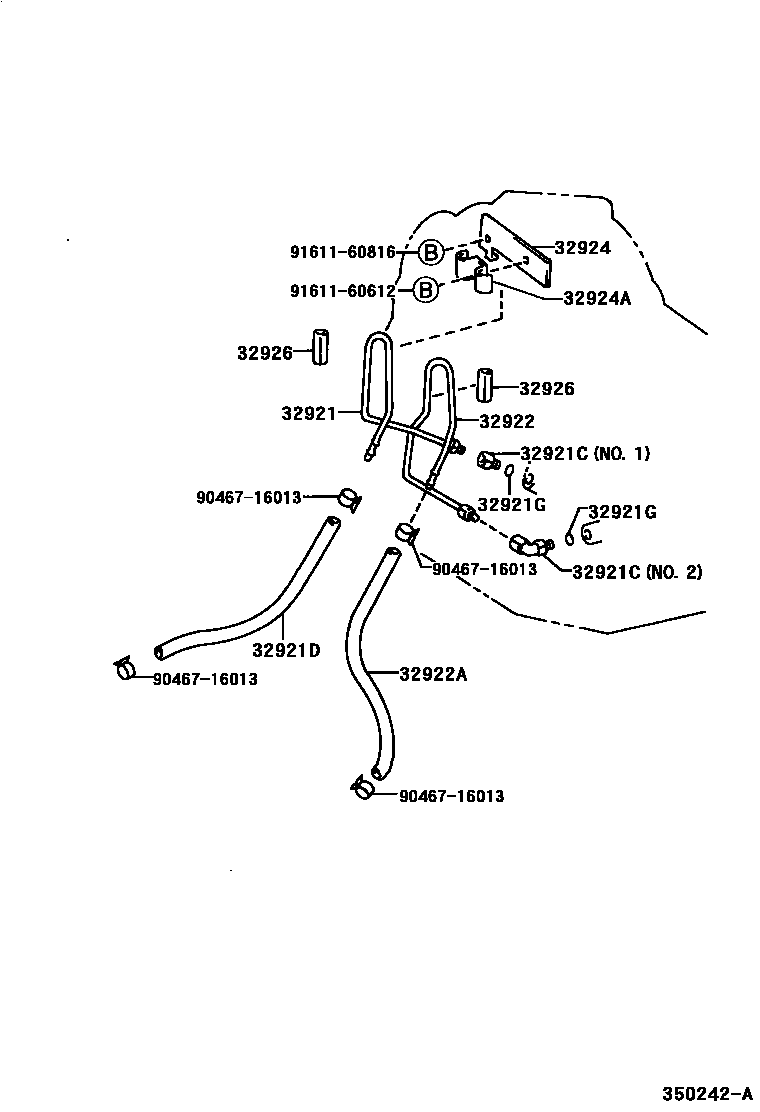

Toyota CAMRY EPC diagram 3514, 变速器油冷却器和配管(ATM), with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-33060 · 32921-33070 · 32921-33080 |
| 32921C | Fitting (for transmission oil cooler tube) | 32901-32050 · 32901-32060 · 90404-16031 |
| 32921D | Hose (for transmission oil cooler oil inlet) | 32941-33040 · 90445-17112 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10189 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-33050 · 32922-33060 |
| 32922A | Hoses (for transmission oil cooler oil outlet) | 90445-17106 |
| 32924 | No. 2 transmission oil cooler pipe clamp | 32923-20111 |
| 32924A | Clamp (for No. 2 transmission oil cooler tube) | 90462-12074 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-30020 |
