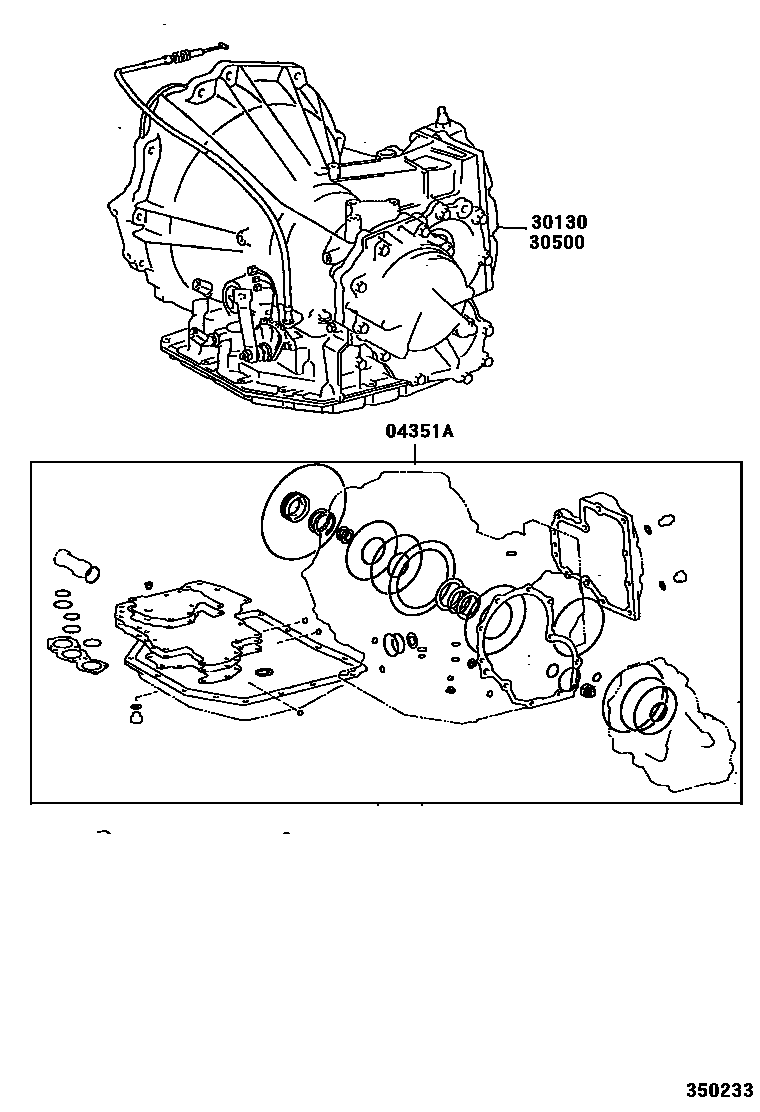

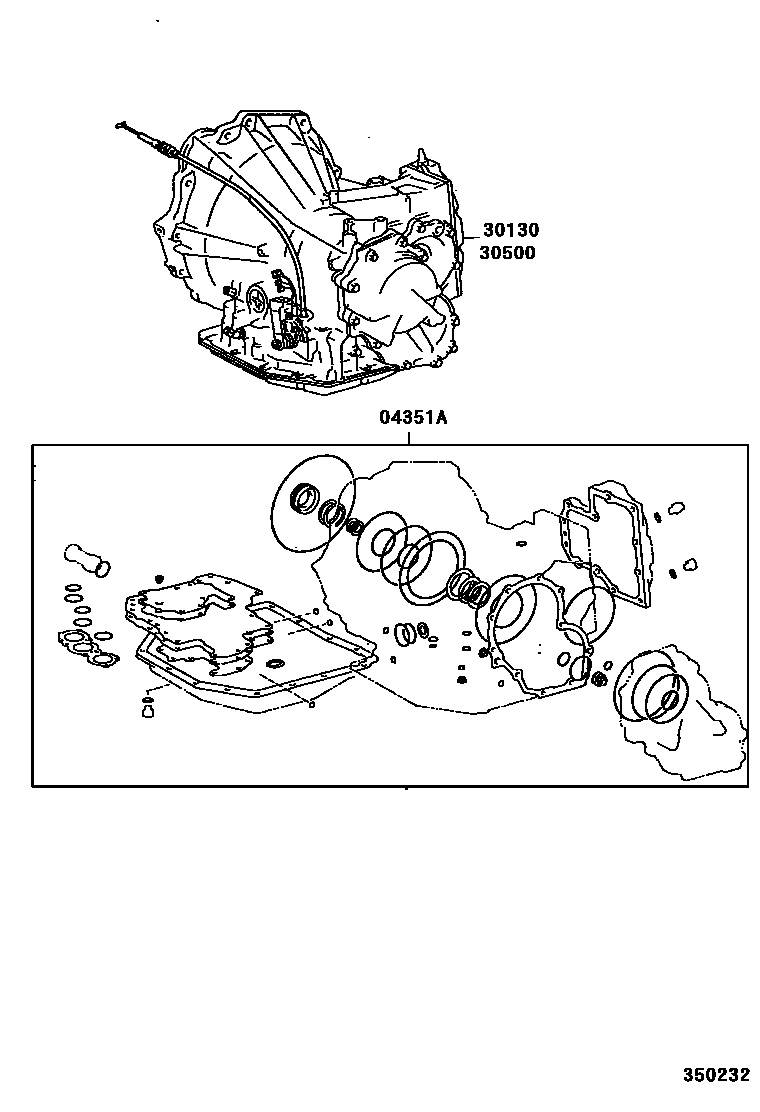

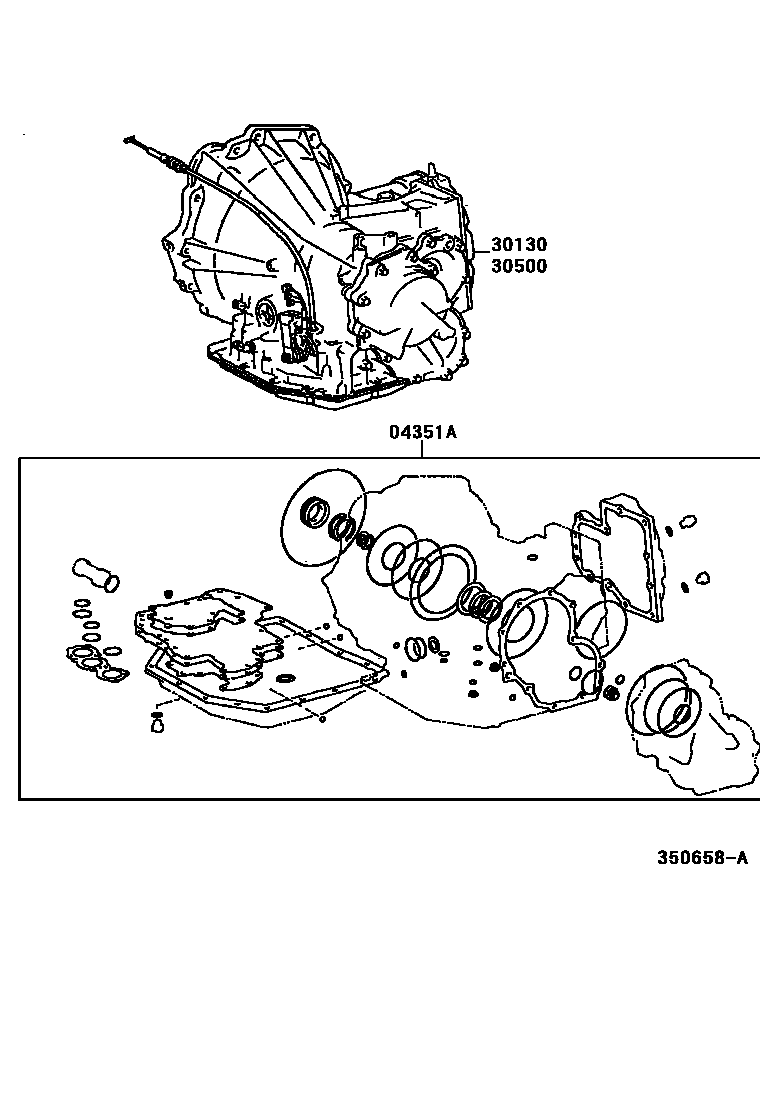

Toyota CAMRY 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501
Toyota CAMRY EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 3 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04351A | Transaxle overhaul gasket assembly (ATM) | 04351-33010 · 04351-33032 · 04351-33050 · 04351-33060 |
| 30130 | Refurbished transmission axle assembly | 30130-33250 · 30130-33251 · 30130-33260 · 30130-33280 · 30130-33290 · 30130-33320 · 30130-33340 |
| 30500 | Automatic transmission axle assembly | 30500-33250 · 30500-33251 · 30500-33260 · 30500-33280 · 30500-33290 · 30500-33320 · 30500-33340 |
