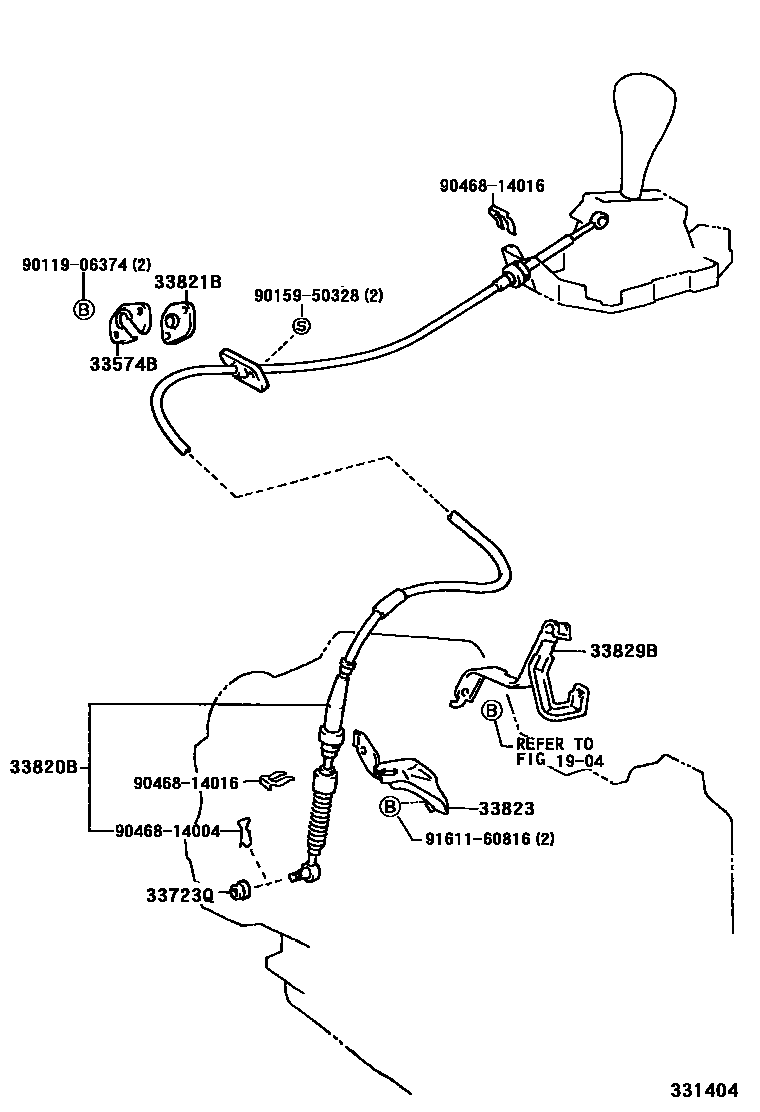

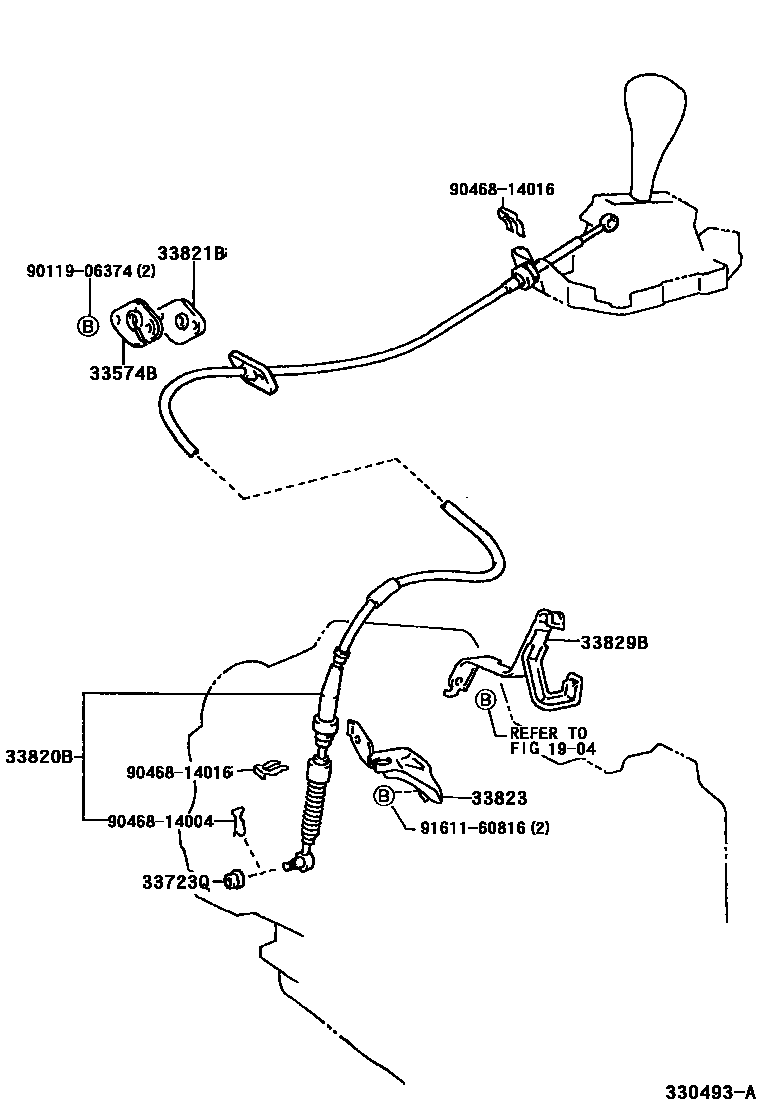

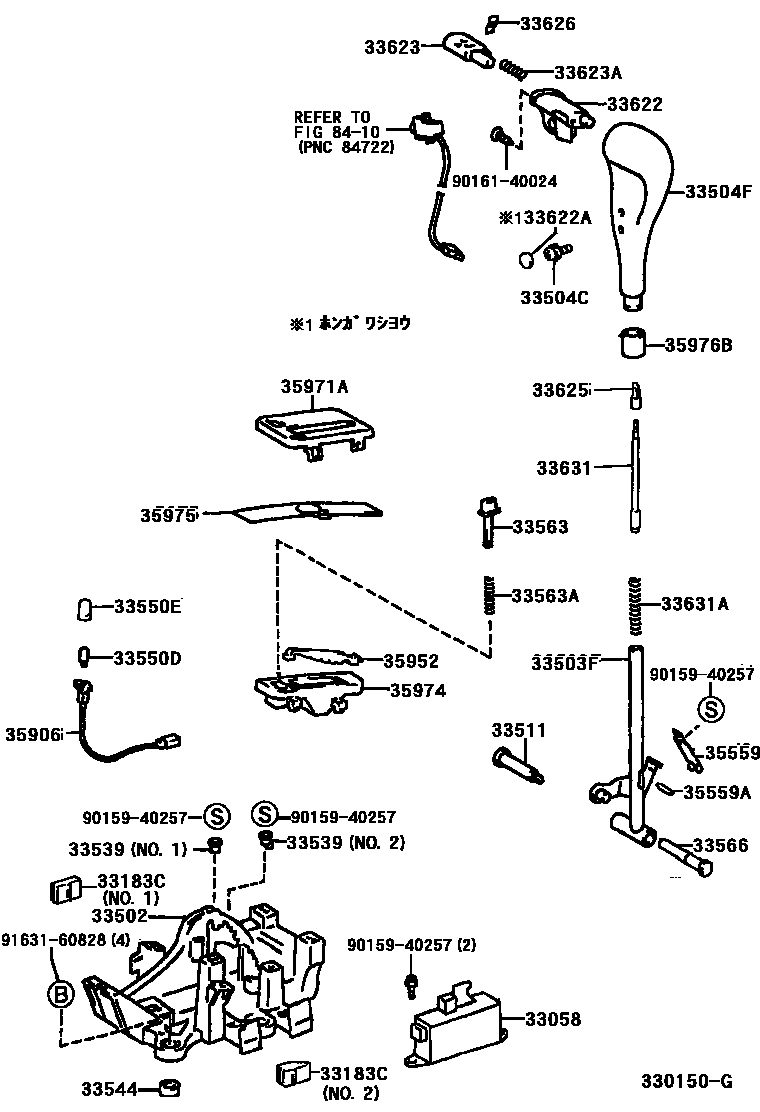

Toyota CAMRY Shift Lever & Retainer — Figure 3312
Toyota CAMRY EPC diagram 3312, Shift Lever & Retainer, with 4 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33058 | Shift lock solenoid valve bracket sub-assembly | 33560-33020 |
| 33183C | dynamic damper | 33183-33020 · 33183-33030 |
| 33502 | Shift lever base plate sub-assembly | 33521-33040 |
| 33503F | Shift lever sub-assembly (for floor shift) | 33055-33100 |
| 33504C | Screw (for securing shift lever knob) | 90159-40238 |
| 33511 | Control shaft (for floor shifting) | 33511-33020 |
| 33539 | Gear shifter anti-vibration cushion | 33539-33010 · 33539-33030 |
| 33544 | Shift lever insert No. 1 | 33544-33010 |
| 33550D | position indicator light bulb | 90981-11018 |
| 33550E | position indicator cover | 90339-04049 |
| 33563 | Shift lock release button | 33563-33080 |
| 33563A | Compression spring (for shift lock release button) | 90501-05042 |
| 33566 | shift lever stop pin | 90256-04008 |
| 33574B | No. 2 shift cable seal | 33574-33030 · 33574-33050 |
| 33623 | Shift lever handle button | 33623-33090 |
| 33623A | Compression spring (for shift lever knob button) | 90501-07116 |
| 33625 | Shift lever handle sleeve | 33625-33040 |
| 33626 | Shift lever button stop | 33626-20010 |
| 33631 | Locking lever | 33631-33060 |
| 33631A | Compression spring (for locking lever) | 90501-06091 |
| 33723Q | Nut (for connecting rod swivel joint) | 90179-08054 |
| 33820B | Transmission control cable assembly | 33820-33120 · 33820-33121 · 33820-33130 · 33820-33131 · 33820-33140 · 33820-33141 · 33820-33150 · 33820-33151 |
| 33821B | No. 2 retaining ring (for transmission control cable) | 33577-33010 · 33577-33050 |
| 33823 | No. 1 transmission control cable bracket | 33823-33010 · 33823-33030 |
| 33829B | Transmission control cable clip | 33829-33010 · 33829-33020 · 33829-33030 |
| 35559 | Manual locking spring | 35559-33030 |
| 35559A | Pin (for manual locking spring) | 90249-02005 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-33040 |
| 35952 | Position indicator lampshade | 35952-33010 |
| 35971A | Position indicator light upper shell | 35971-33050 |
| 35974 | Position indicator light lower shell | 35974-33070 |
| 35975 | Slide cover (for position indicator light) | 35975-33030 |
| 35976B | Shift lever handle cover (for floor shift) | 35976-33050 |
