Toyota CAMRY Alternator — Figure 1903

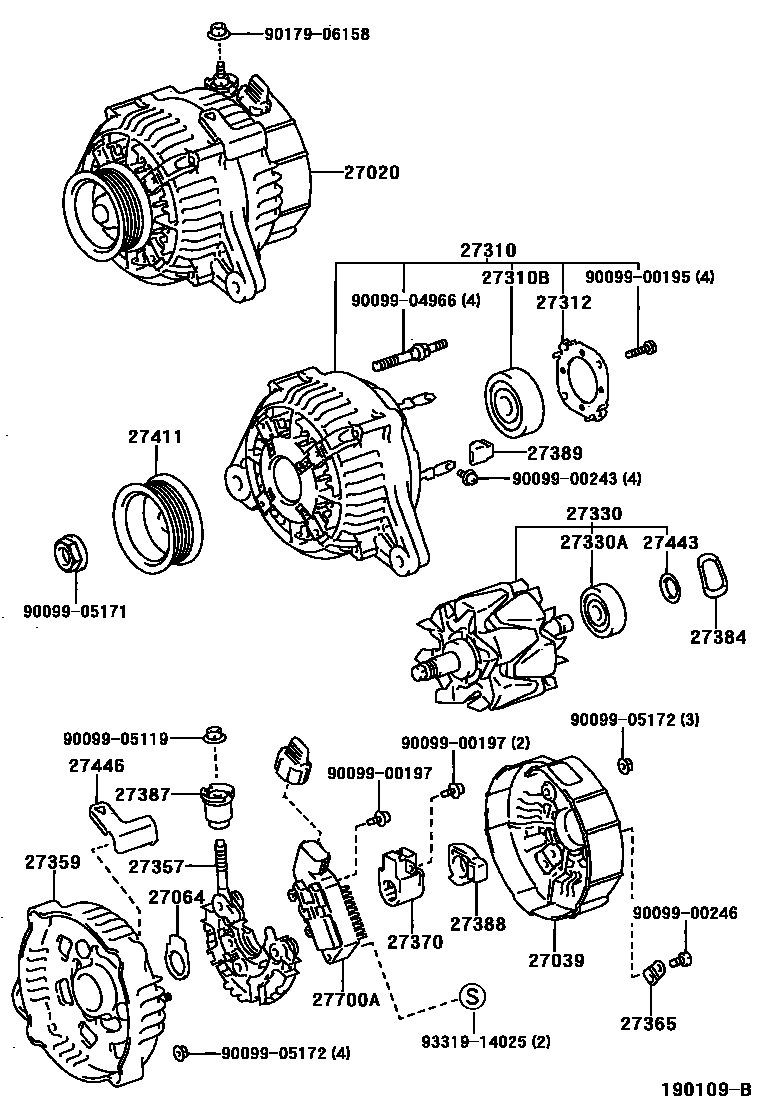

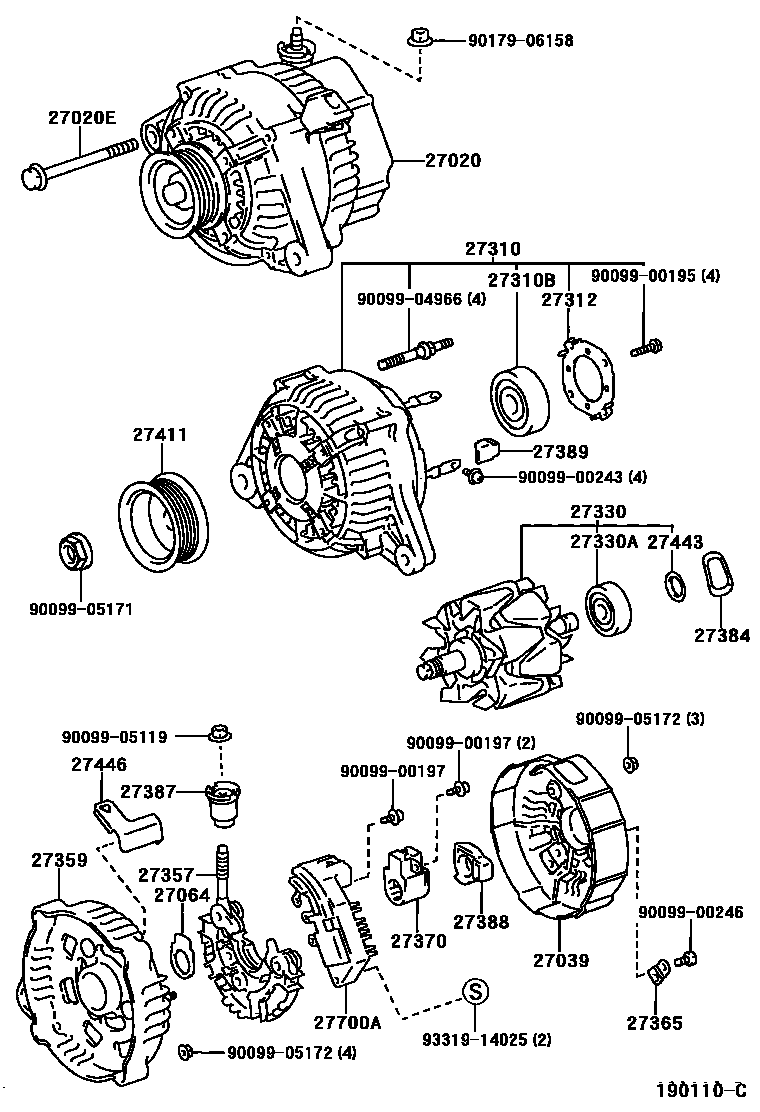

Toyota CAMRY EPC diagram 1903, Alternator, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-20080 · 27060-20090 · 27060-20140 · 27060-74650 · 27060-74690 |
| 27020E | Bolts (for generator) | 90105-10249 |
| 27039 | Alternator Rear End Cover | 27039-20060 · 27039-20160 · 27039-55080 · 27039-70470 |
| 27064 | Generator sealing plate | 27064-42010 |
| 27310 | Alternator Drive End Frame Assembly | 27310-20060 · 27310-20080 · 27310-74490 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90099-10192 |
| 27312 | Retainer Plate | 27312-42010 |
| 27330 | Alternator Rotor Assembly | 27330-20060 · 27330-20070 · 27330-64520 · 27330-72280 · 27330-74550 |
| 27330A | Bearings (for generator rotor) | 90099-10140 |
| 27357 | Generator rectifier frame | 27357-16310 · 27357-20060 · 27357-55080 |
| 27359 | Generator rectifier end frame | 27359-20060 · 27359-20080 · 27359-74550 |
| 27365 | terminal board | 27365-55080 |
| 27370 | Alternator Brush Holder Assembly | 27370-75060 |
| 27384 | Washer | 27384-50030 |
| 27387 | Terminal Insulator | 27387-42020 · 27387-42021 |
| 27388 | Generator brush cover | 27388-42010 |
| 27389 | Terminal Insulator | 27389-42010 |
| 27411 | Alternator Pulley | 27411-20020 · 27411-42030 · 27411-46080 |
| 27443 | Generator bearing cap | 27443-63020 |
| 27446 | Generator clamp | 27446-20050 · 27446-74370 |
| 27700A | Generator voltage regulator assembly | 27700-20050 · 27700-74030 · 27700-74040 |
