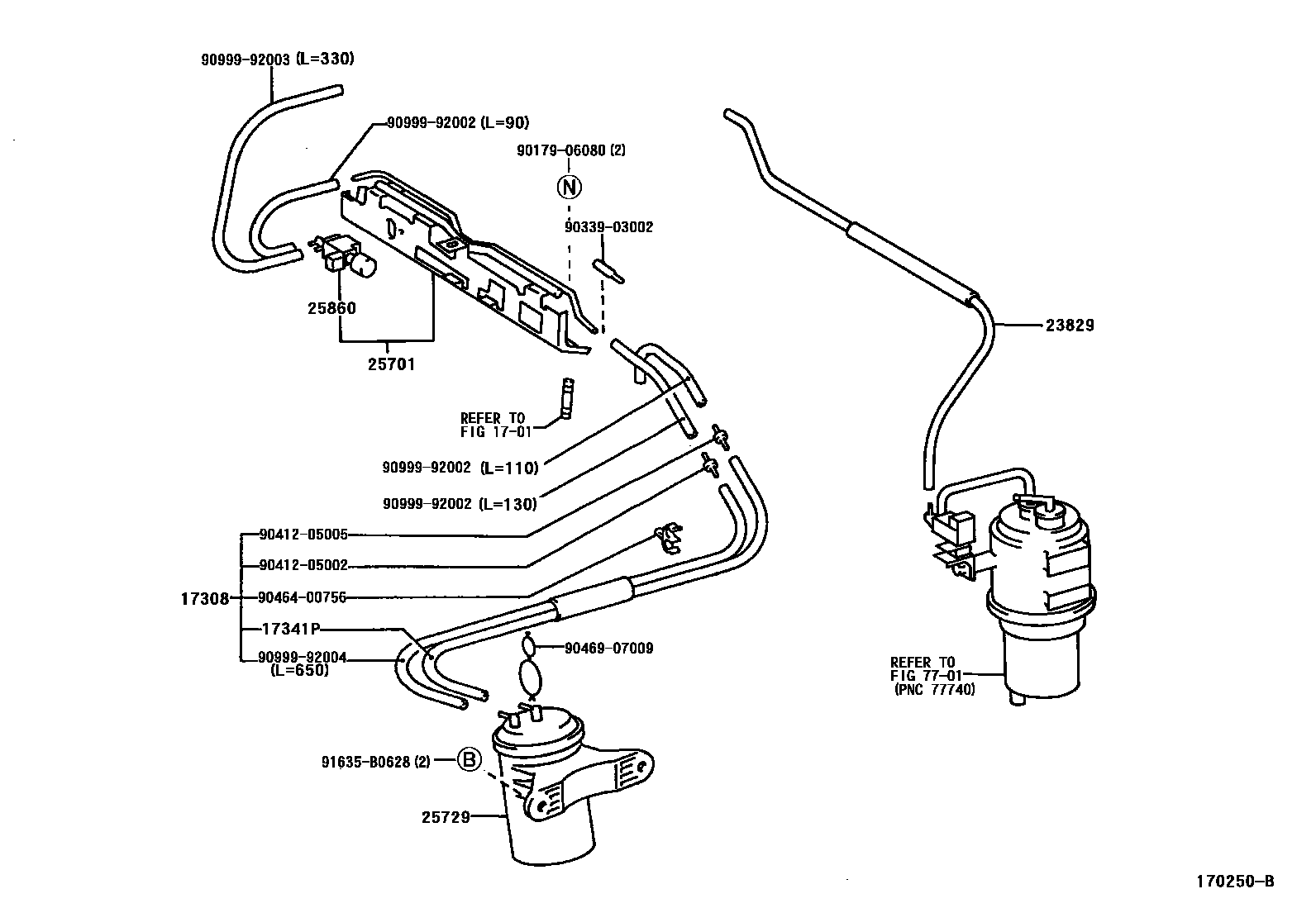

Toyota CAMRY vacuum tube — Figure 1708
Toyota CAMRY EPC diagram 1708, vacuum tube, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17308 | Vacuum hose sub-assembly (for idle boost) | 17308-20050 |
| 17341P | air hose | 17341-20040 · 17341-74810 · 17341-74890 |
| 23265 | No. 1 gas filter | 90917-11022 · 90917-11037 |
| 23829 | No. 3 fuel vapor supply hose | 23829-20020 |
| 25701 | Emission control valve assembly | 25701-20080 |
| 25729 | Vacuum pressure tank with bracket | 25729-20010 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-62010 |
