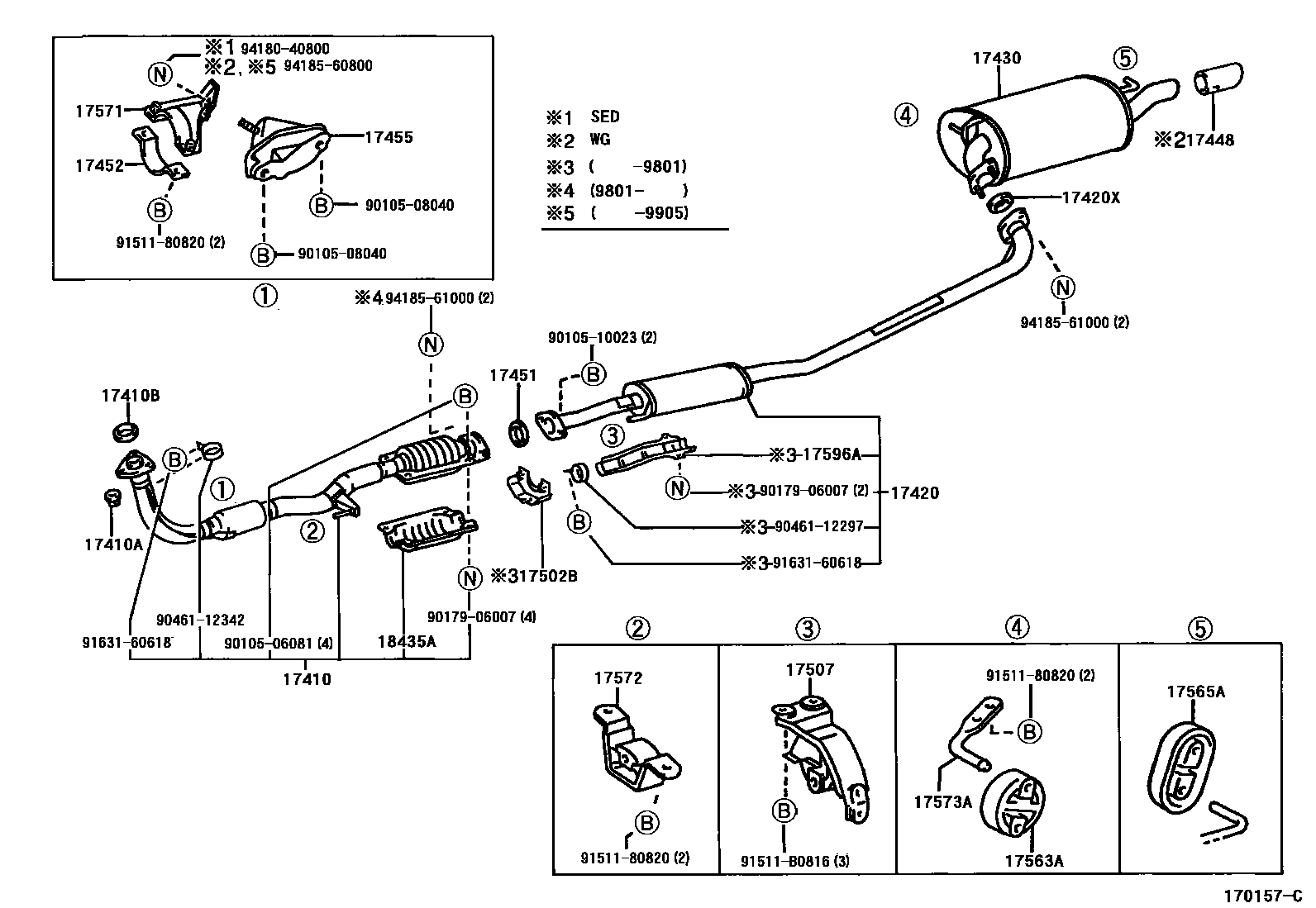

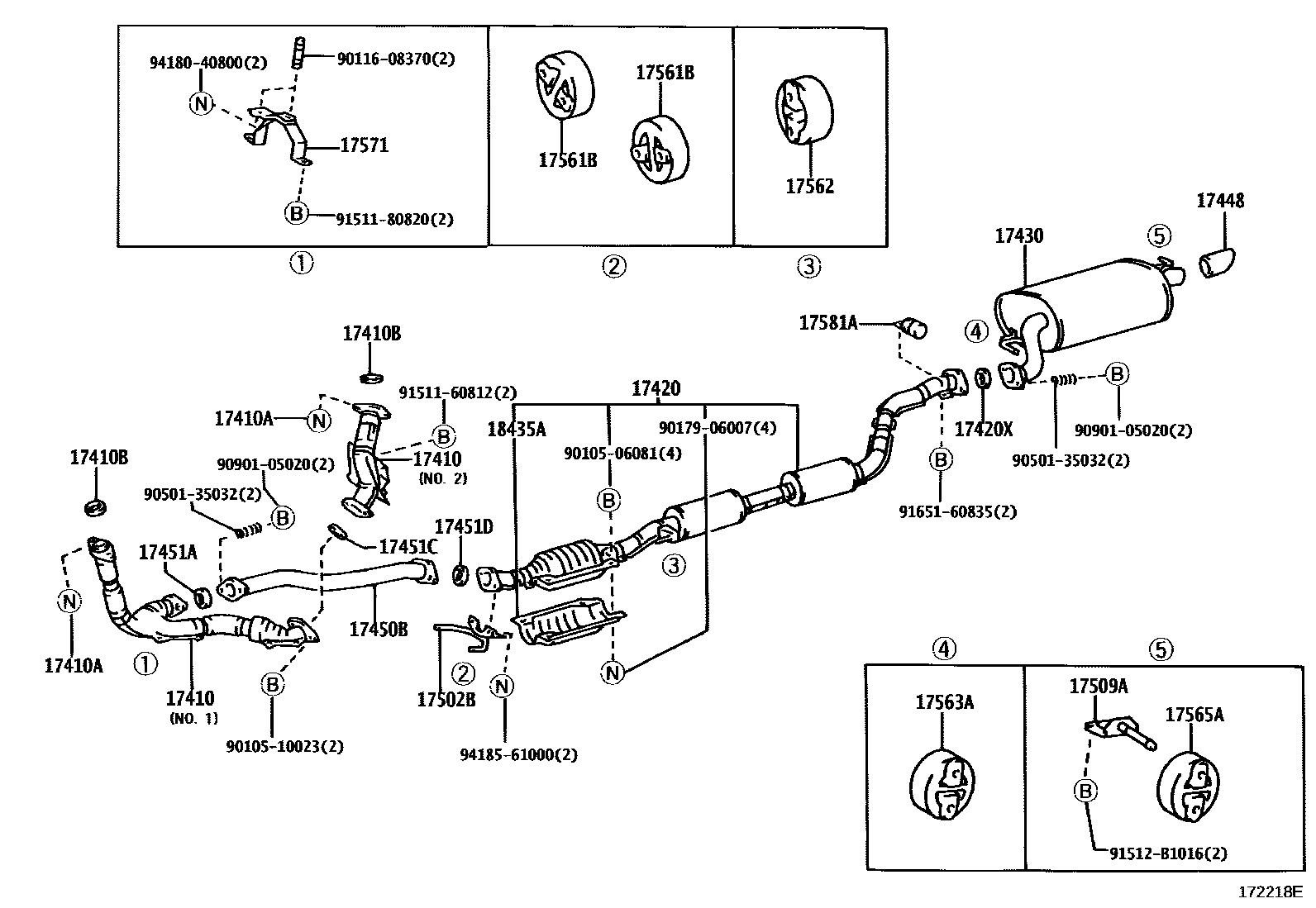

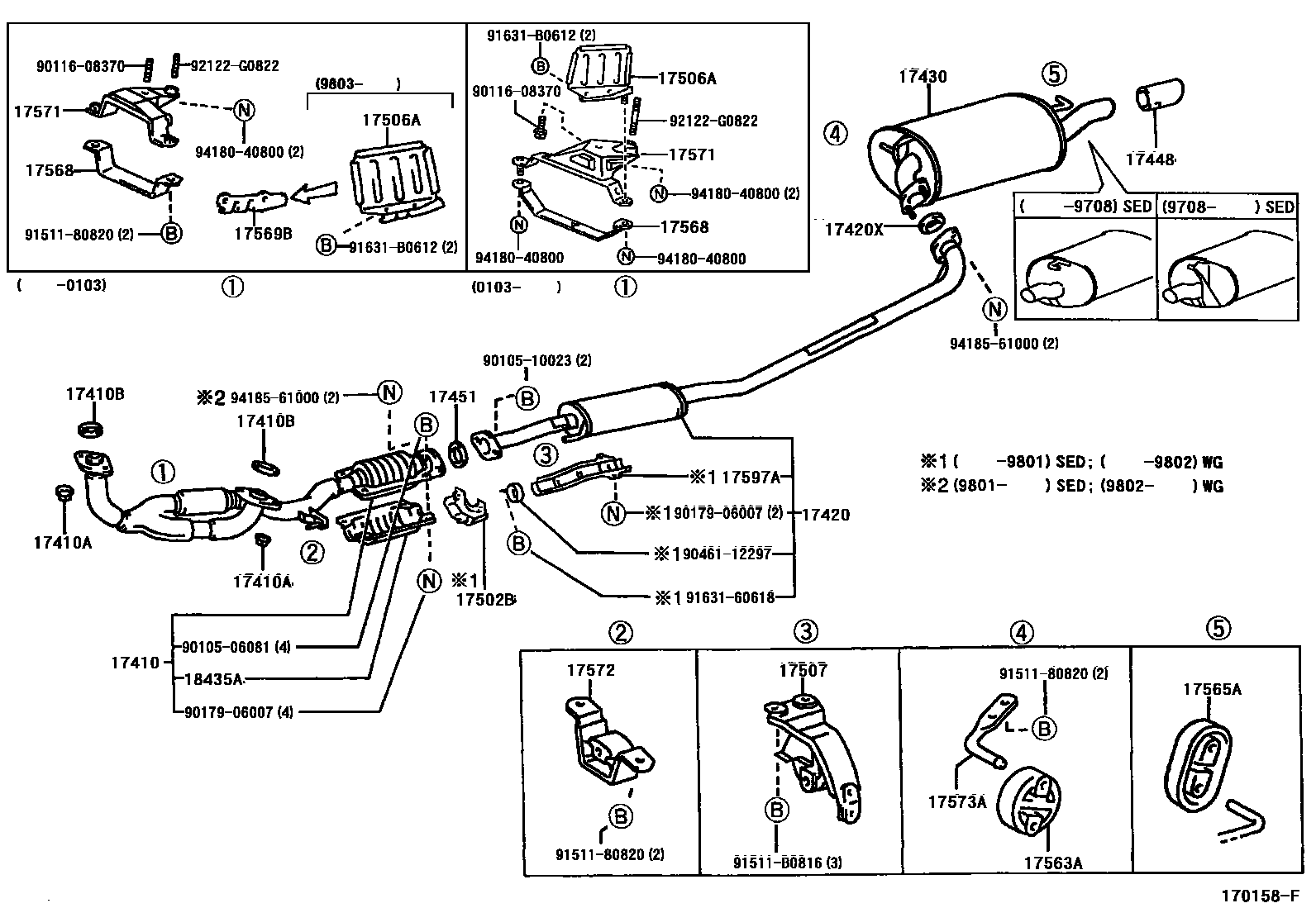

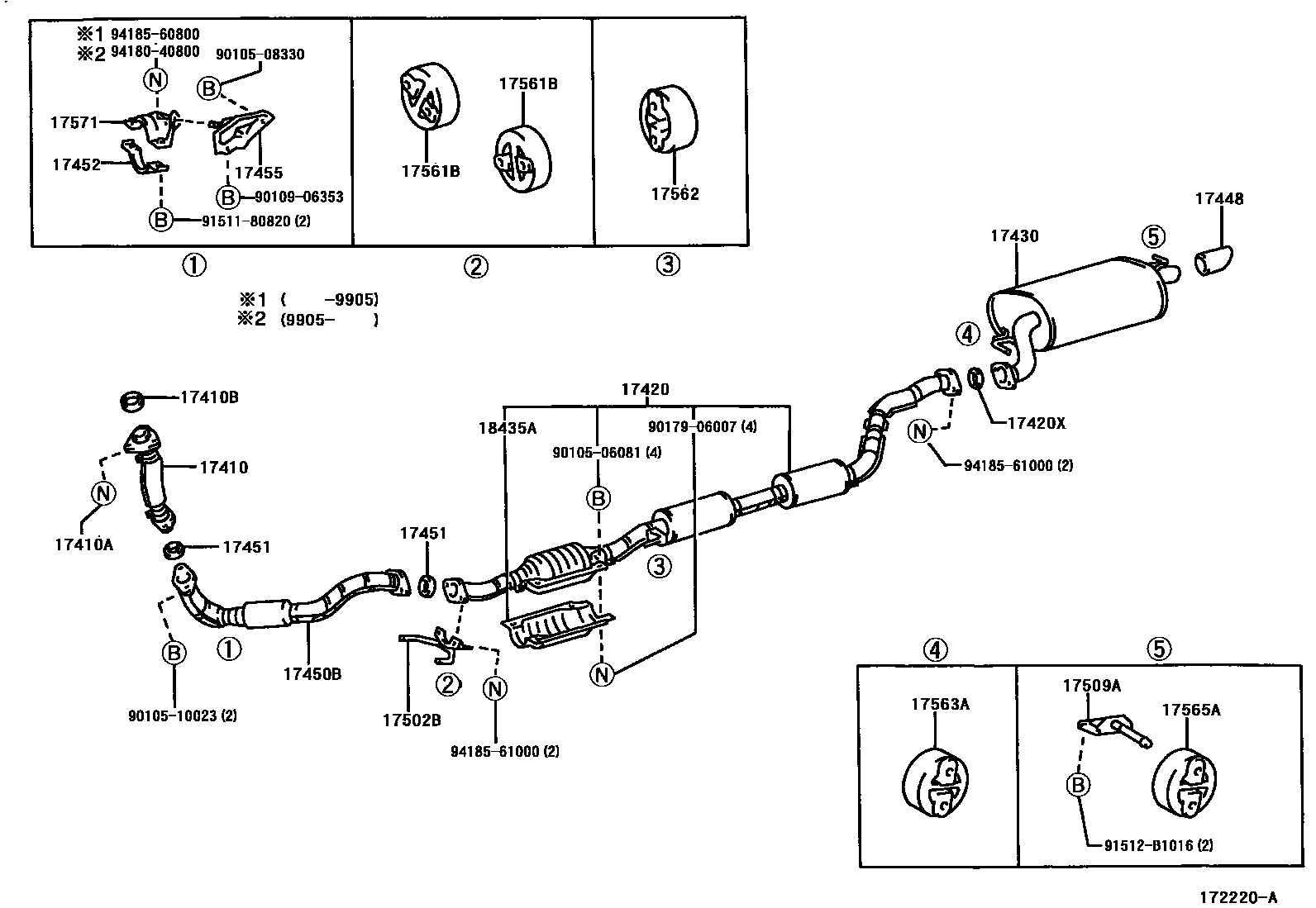

Toyota CAMRY Exhaust Pipe — Figure 1702
Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 4 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-20090 · 17410-20091 · 17410-20092 · 17410-20130 · 17410-20140 · 17410-7A450 · 17410-7A451 · 17410-7A670 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06065 · 90917-06066 |
| 17420 | Central exhaust pipe assembly | 17420-20060 · 17420-20080 · 17420-20110 · 17420-20111 · 17420-20112 · 17420-20230 · 17420-7A030 · 17420-7A031 · 17420-7A140 · 17420-7A141 · 17420-7A142 · 17420-7A270 |
| 17420X | Center exhaust pipe liner | 17451-20010 · 90917-06045 · 90917-06049 · 90917-06073 |
| 17430 | Exhaust tailpipe assembly | 17430-7A691 · 17430-7A692 · 17430-7A861 · 17430-7A862 · 17430-7A891 · 17430-7B160 · 17440-20031 · 17440-20032 · 17440-20051 · 17440-20052 · 17440-20061 |
| 17448 | Exhaust pipe tail throat | 17448-74080 · 17448-74130 |
| 17450B | No. 2 front exhaust pipe assembly | 17450-20050 · 17450-74100 |
| 17451 | Exhaust pipe gasket | 90917-06046 · 90917-06073 · 90917-06078 |
| 17451A | No. 2 exhaust pipe gasket | 17451-20010 |
| 17451C | No. 3 exhaust pipe gasket | 90917-06046 |
| 17451D | No. 4 exhaust pipe gasket | 90917-06076 |
| 17452 | Exhaust pipe clamp | 17452-74080 |
| 17455 | Exhaust pipe bracket | 17455-74080 |
| 17502B | Three-way catalytic converter front bracket sub-assembly | 17503-20010 · 17503-20020 · 17503-74090 |
| 17506A | No. 1 exhaust pipe bracket sub-assembly | 17506-20060 · 17506-20061 |
| 17507 | No. 2 exhaust pipe bracket sub-assembly | 17507-20040 |
| 17509A | No. 4 exhaust pipe bracket sub-assembly | 17509-74200 · 17509-74201 |
| 17561B | No. 1 exhaust pipe lifting lug | 17565-15140 |
| 17562 | No. 2 exhaust pipe lifting lug | 17565-15140 |
| 17563A | No. 3 exhaust pipe lifting lug | 17565-15140 · 17565-20060 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-11160 · 17565-20050 · 17565-20060 · 17565-74290 |
| 17568 | Exhaust pipe bracket stay | 17568-20080 |
| 17569B | No. 2 exhaust pipe bracket stay | 17569-20040 |
| 17571 | No. 1 exhaust pipe bracket | 17571-20070 · 17571-20071 · 17571-20100 · 17571-74370 · 17571-74490 |
| 17572 | No. 1 exhaust pipe bracket | 17572-20040 · 17572-74090 |
| 17573A | No. 3 exhaust pipe bracket | 17573-74211 |
| 17581A | Exhaust pipe damper | 17581-17020 |
| 17596A | No. 4 lower exhaust pipe protection device | 17596-74130 |
| 17597A | No. 5 lower exhaust pipe protection device | 17597-20010 |
| 18435A | Integrated three-way catalytic converter protection device | 18435-16170 · 18435-16190 |
