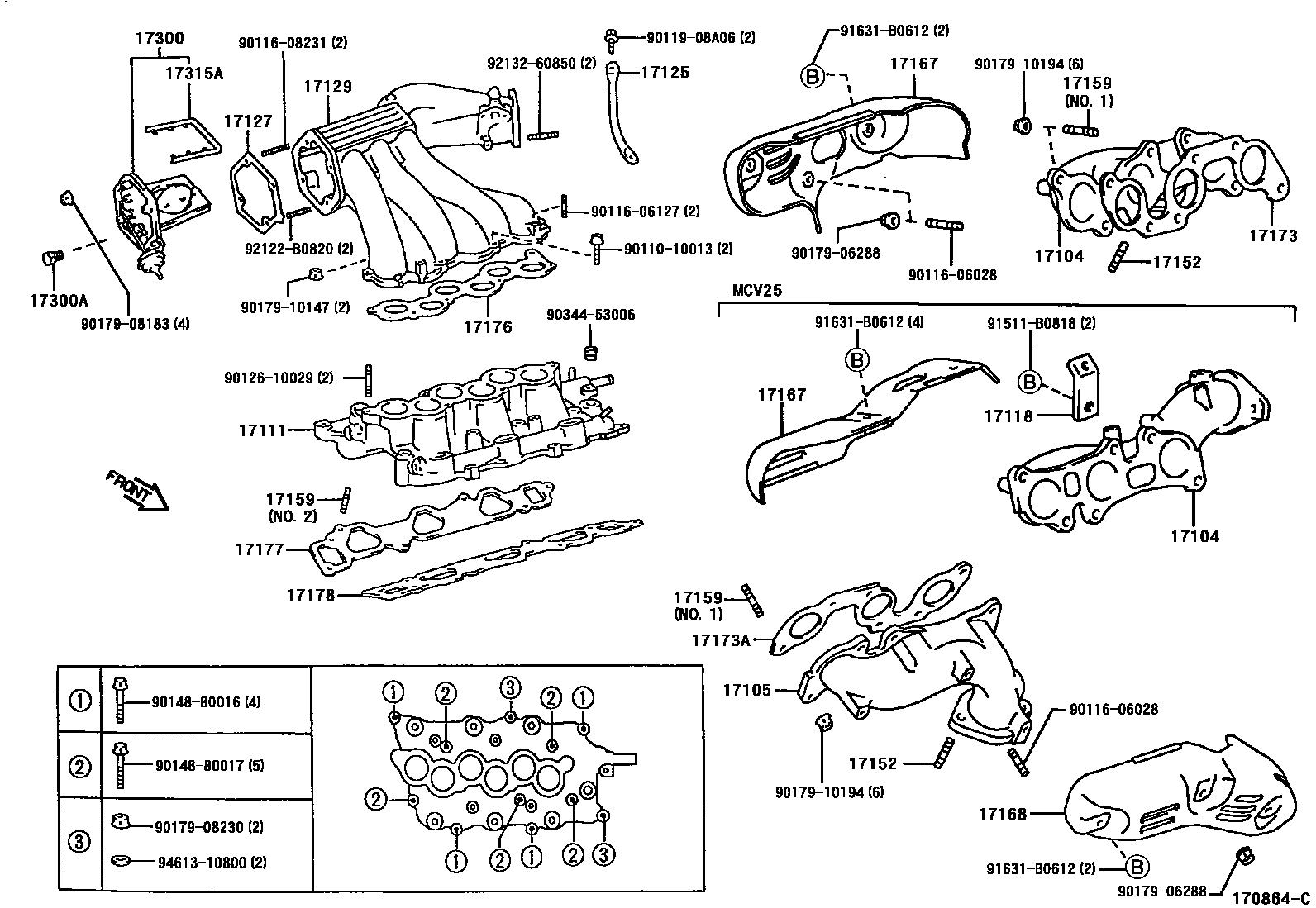

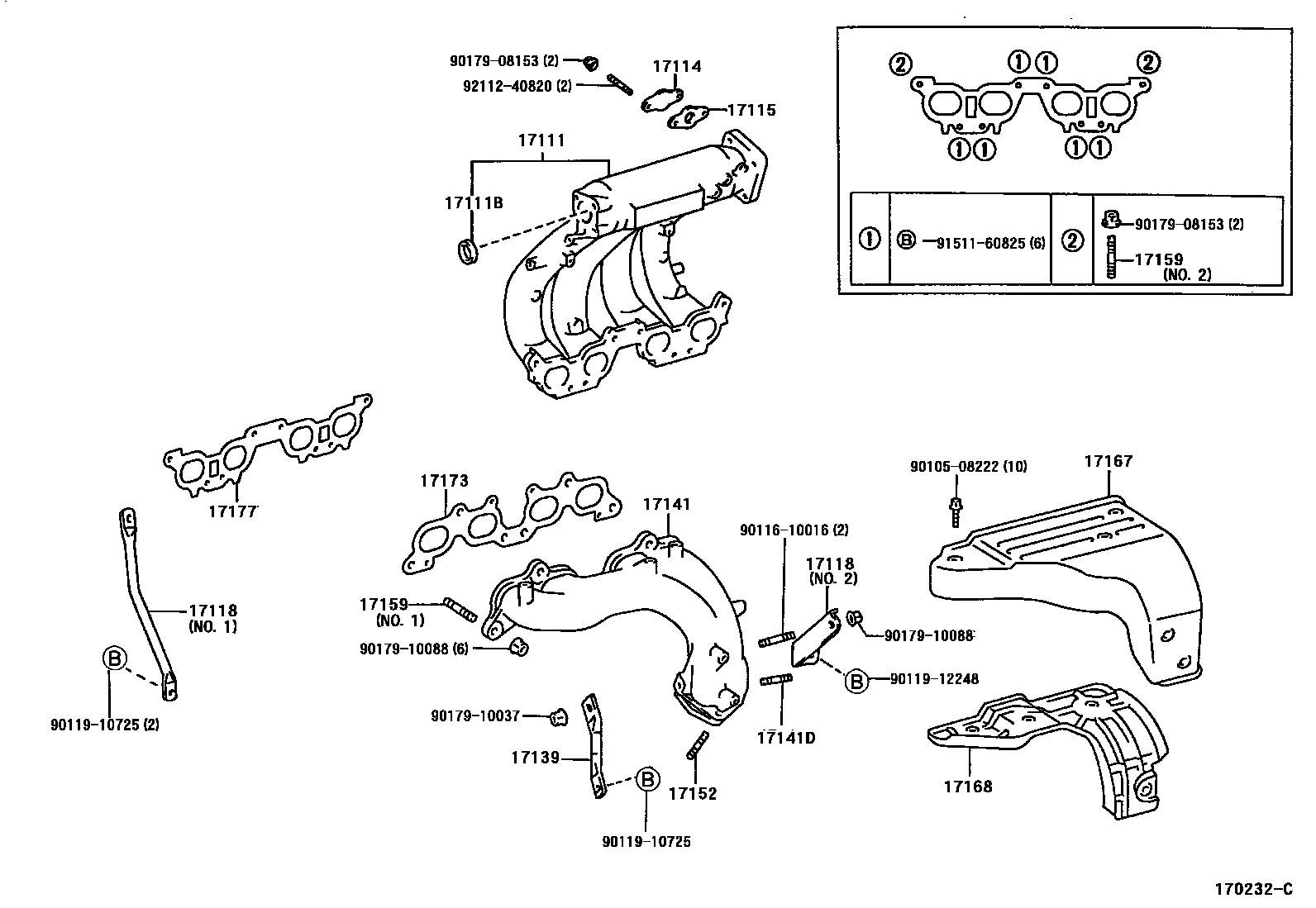

Toyota CAMRY Manifold — Figure 1701
Toyota CAMRY EPC diagram 1701, Manifold, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17104 | Right exhaust manifold sub-assembly | 17141-20020 · 17141-20070 |
| 17105 | Left exhaust manifold sub-assembly | 17142-20020 |
| 17111 | Intake Manifold | 17101-20020 · 17101-20021 · 17101-74310 · 17101-74311 |
| 17111B | No. 2 screw plug | 96411-44000 |
| 17114 | Intake manifold hole cover | 25617-74020 |
| 17115 | Intake manifold hole cover gasket | 25627-74011 |
| 17118 | Manifold stays | 17118-20030 · 17118-74230 · 17118-74350 |
| 17125 | No. 1 pressure tank stay | 17125-20010 |
| 17127 | Pressure tank cover gasket | 17127-62030 |
| 17129 | Intake pressure tank | 17109-20060 |
| 17139 | No. 2 manifold stay | 17139-74110 |
| 17141 | exhaust manifold | 17141-74130 |
| 17141D | Studs (for oxygen sensor) | 90116-08253 |
| 17152 | Studs (for manifold to exhaust) | 90116-10058 · 90116-10149 |
| 17159 | Studs (for manifold to cylinder head) | 90116-10063 · 90116-10169 · 90126-08013 · 90126-10030 · 92122-60822 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-20020 · 17167-20070 · 17167-74180 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-20020 · 17168-74080 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-20010 · 17173-74040 |
| 17173A | Left side gasket (exhaust manifold to cylinder head) | 17173-20010 |
| 17176 | Gasket (intake surge tank to intake manifold) | 17176-62030 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-20010 · 17177-20020 · 17177-74070 |
| 17178 | No. 2 gasket (intake manifold to cylinder head) | 17178-20010 · 17178-20020 |
| 17300 | Intake control valve assembly | 17300-20020 |
| 17300A | Headed tapered thread plug (for air control valves) | 90345-51006 |
| 17315A | Intake control valve gasket | 17315-62020 |
