Toyota CAMRY Camshaft & Valve — Figure 1302

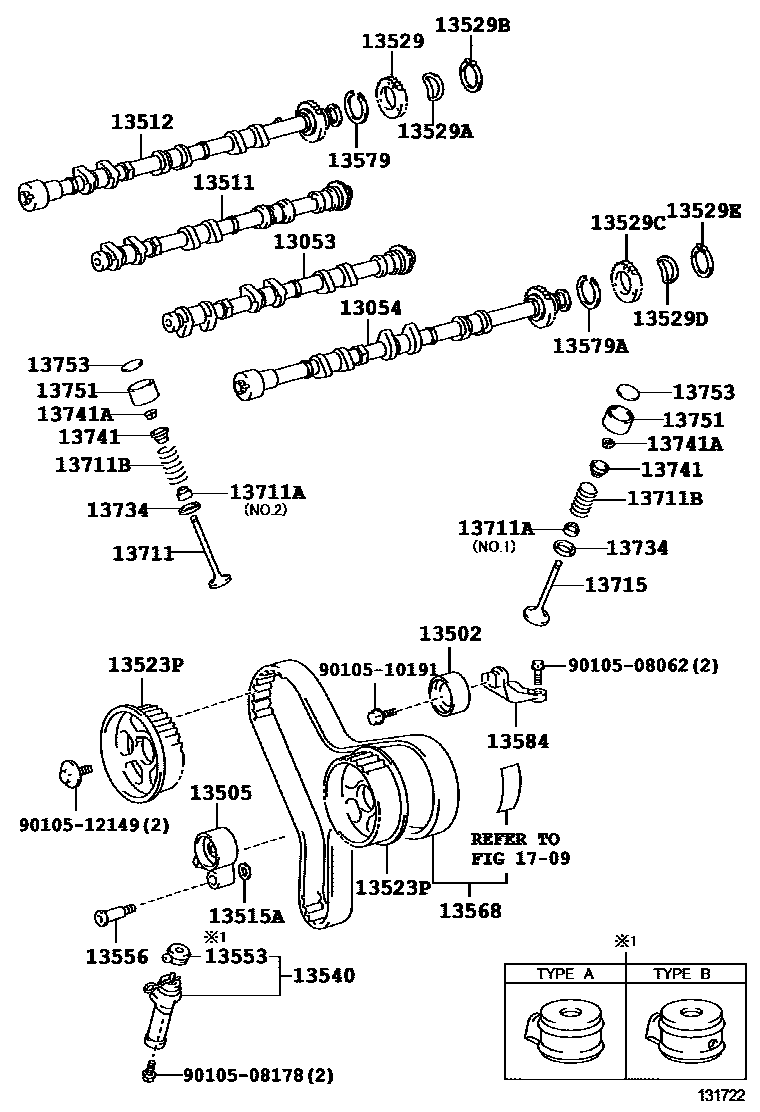

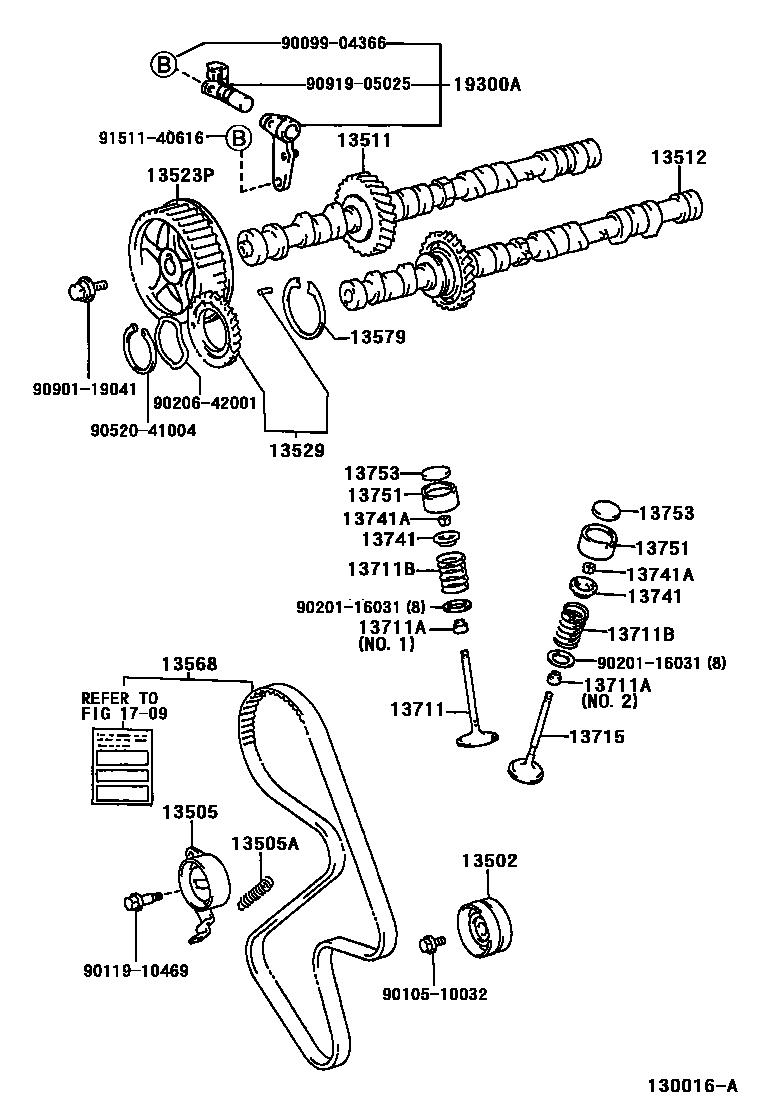

Toyota CAMRY EPC diagram 1302, Camshaft & Valve, with 2 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13053 | No. 3 camshaft sub-assembly | 13053-20020 |
| 13054 | No. 4 camshaft sub-assembly | 13054-20010 |
| 13502 | No. 2 timing belt idler pulley sub-assembly | 13503-62030 · 13503-63011 |
| 13505 | No. 1 timing belt idler pulley sub-assembly | 13505-20010 · 13505-74011 |
| 13505A | Tension spring (for idler pulley) | 90507-17003 · 90507-18030 |
| 13511 | camshaft | 13501-20030 · 13501-74050 |
| 13512 | Camshaft No. 2 | 13502-20010 · 13502-74030 |
| 13515A | Flat washer (for distributor drive gear) | 90201-10098 |
| 13523P | Camshaft timing pulley | 13523-03030 · 13523-20020 · 13523-74040 |
| 13529 | Camshaft counter gear | 13529-20900 · 13529-74900 |
| 13529A | Wave Washer (for Camshaft Counter Gear) | 90206-42001 |
| 13529B | Shaft snap ring (for camshaft counter gear) | 90520-41004 |
| 13529C | Camshaft No. 3 pinion gear | 13529-20900 |
| 13529D | Wave washer (for camshaft No. 3 sub-gear) | 90206-42001 |
| 13529E | Shaft snap ring (for camshaft No. 3 secondary gear) | 90520-41004 |
| 13540 | No. 1 chain tensioner assembly | 13540-20020 · 13540-20021 |
| 13553 | Chain tensioner dust cover | 13553-20010 · 13553-62020 |
| 13556 | Timing belt idler shaft | 13556-62010 |
| 13568 | timing belt | 13568-29015 · 13568-29025 · 13568-79095 · 13568-79225 |
| 13579 | Camshaft timing gear bolt washer | 13579-62010 · 13579-74010 |
| 13579A | No. 3 camshaft timing gear bolt washer | 13579-62010 |
| 13584 | Timing belt idler bracket | 13584-20011 |
| 13711 | intake valve | 13711-0A010 · 13711-20020 · 13711-74080 |
| 13711A | Oil seal or O-ring (for valve stem) | 90913-02066 · 90913-02088 · 90913-02090 · 90913-02100 · 90913-02101 · 90913-02103 · 90913-02111 |
| 13711B | Compression spring (for inner side) | 90501-31010 · 90504-37002 |
| 13715 | exhaust valve | 13715-0A010 · 13715-20020 · 13715-20030 · 13715-74080 |
| 13734 | Valve spring seat | 13734-20010 |
| 13741 | Valve spring seat ring | 13741-20020 · 13741-50020 |
| 13741A | Valve spring seat lock plate | 90913-03021 · 90913-03028 |
| 13751 | valve lifter | 13751-46740 · 13751-74020 |
| 13753 | valve adjustment gasket | 13753-74010 · 13753-74030 · 13753-74050 · 13753-74070 · 13753-74090 · 13753-74110 · 13753-74130 · 13753-74150 · 13753-74170 · 13753-74190 · 13753-74210 · 13753-74230 · 13753-74250 · 13753-74270 · 13753-74290 · 13753-74310 · 13753-74330 |
| 19300A | Cam position sensor assembly | 19300-74010 |
