Toyota CAMRY Crankshaft & Piston — Figure 1301

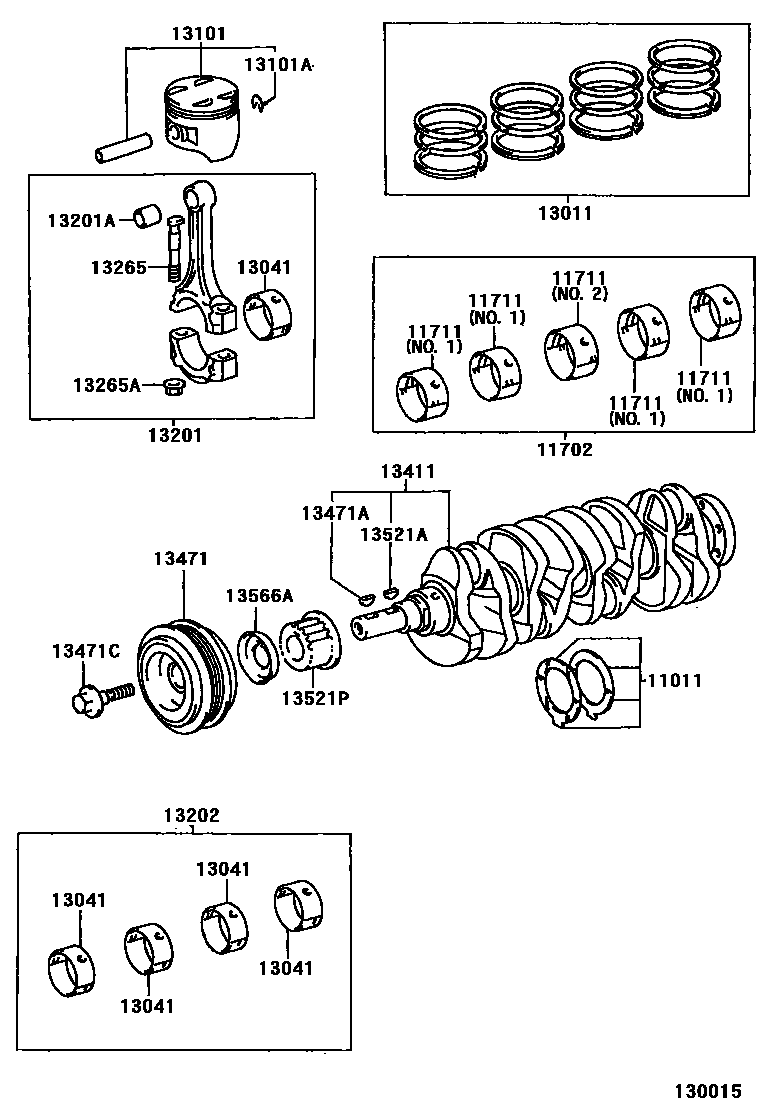

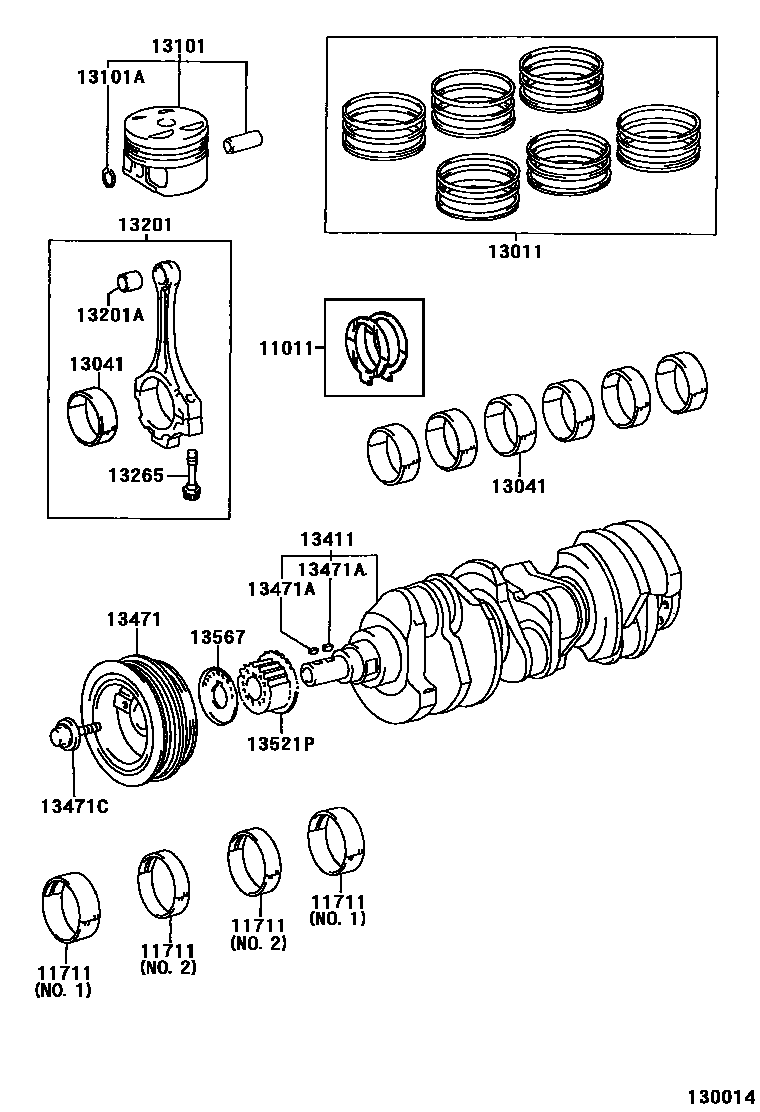

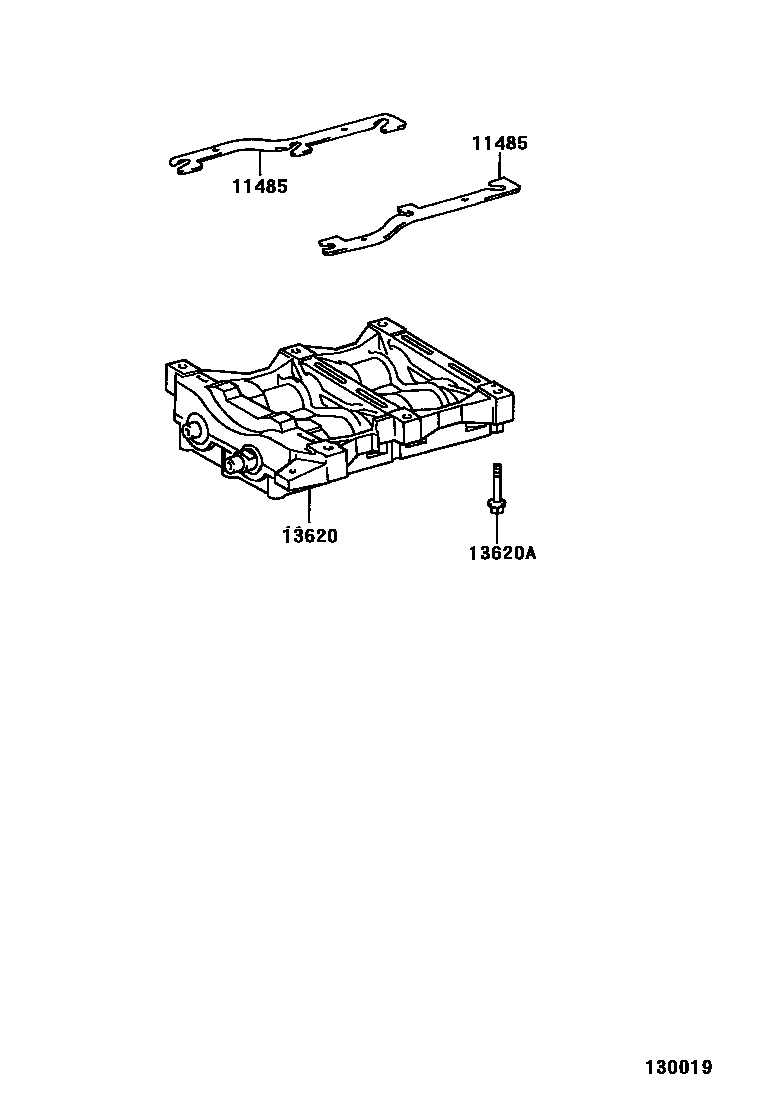

Toyota CAMRY EPC diagram 1301, Crankshaft & Piston, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11011 | Crankshaft thrust washer assembly | 11011-20020 · 11011-74020 |
| 11702 | crankshaft bearing assembly | 11704-63021 |
| 13011 | Piston ring assembly | 13011-20050 · 13011-74370 · 13013-74370 |
| 13101 | Piston sub-assembly with pin | 13101-20020 · 13103-74201 |
| 13101A | Bore snap ring (for piston pin) | 90520-22025 · 90521-25004 |
| 13201 | Connecting rod sub-assembly | 13201-29025 · 13201-79215 |
| 13201A | Bushing (for connecting rod small end) | 90999-73112 · 90999-73119 |
| 13202 | Connecting rod bearing assembly | 13204-74040 |
| 13265 | Connecting rod bolts | 13265-50020 · 13265-62030 |
| 13265A | Hexagonal nut (for connecting rod bolts) | 90179-08118 |
| 13411 | crankshaft | 13401-20020 · 13401-74011 |
| 13471 | crankshaft pulley | 13408-20020 · 13408-74031 · 13408-74041 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 90280-05005 · 95161-30516 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-14015 · 90119-16004 |
| 13521A | Key (for crankshaft timing gear) | 90280-05005 |
| 13521P | crankshaft timing pulley | 13521-03030 · 13521-20020 · 13521-74040 |
| 13566A | timing belt guide | 13567-74010 |
| 13567 | No. 2 timing belt guide | 13567-62010 |
| 13620 | Engine balancer assembly | 13620-74012 |
| 13620A | Bolt with washer (for balancer assembly assembly) | 90119-10687 |
