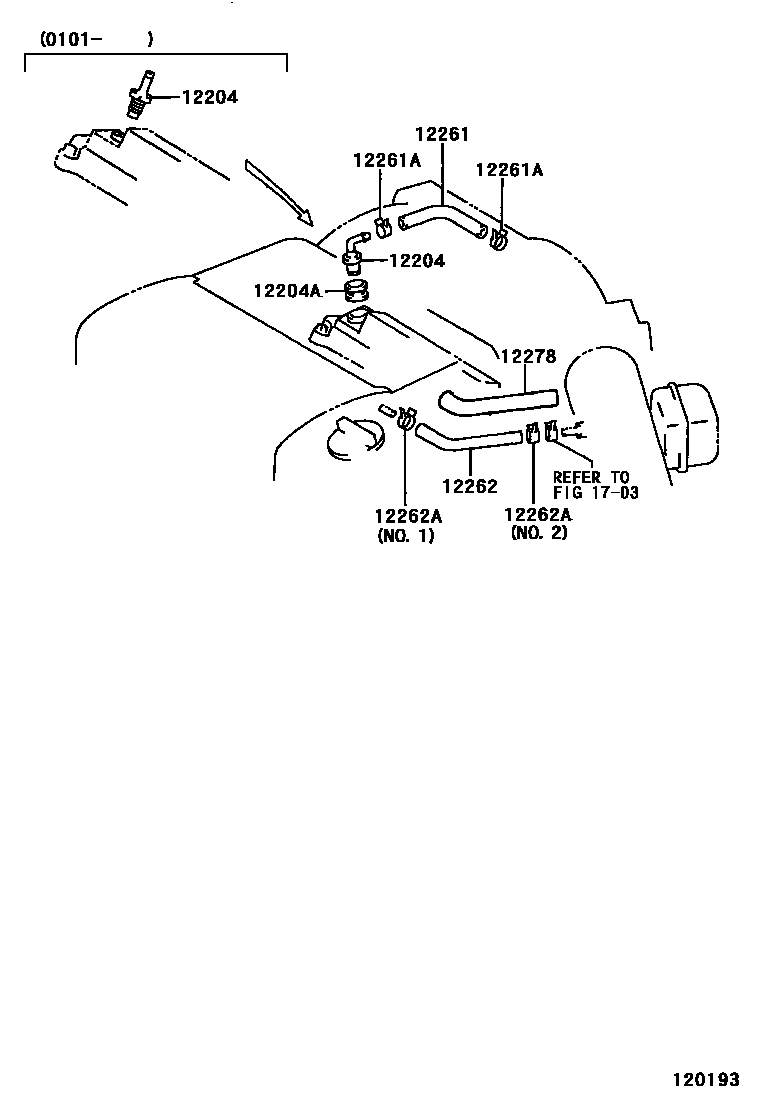

Toyota CAMRY Ventilation Hose — Figure 1201
Toyota CAMRY EPC diagram 1201, Ventilation Hose, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12204 | Ventilation valve sub-assembly | 12204-20010 · 12204-20040 · 12204-74030 |
| 12204A | Gasket (for ventilation system) | 90480-18001 |
| 12261 | Ventilation Hose | 12260-74070 · 12260-74071 · 12261-20010 · 12261-20011 · 12261-74180 |
| 12261A | Clip or clip (for vent hose) | 90467-14017 · 90467-15016 · 90467-16003 |
| 12262 | Ventilation hose No. 2 | 12262-20010 · 12262-20020 · 12262-74100 |
| 12262A | Clamp (for vent hose No. 2) | 90467-14043 · 90467-17011 · 90467-19022 · 96134-41900 |
| 12278 | Ventilation hose insulation pad | 12278-20010 |
