Toyota CAMRY Engine Overhaul Gasket Kit — Figure 1103

Toyota CAMRY EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.

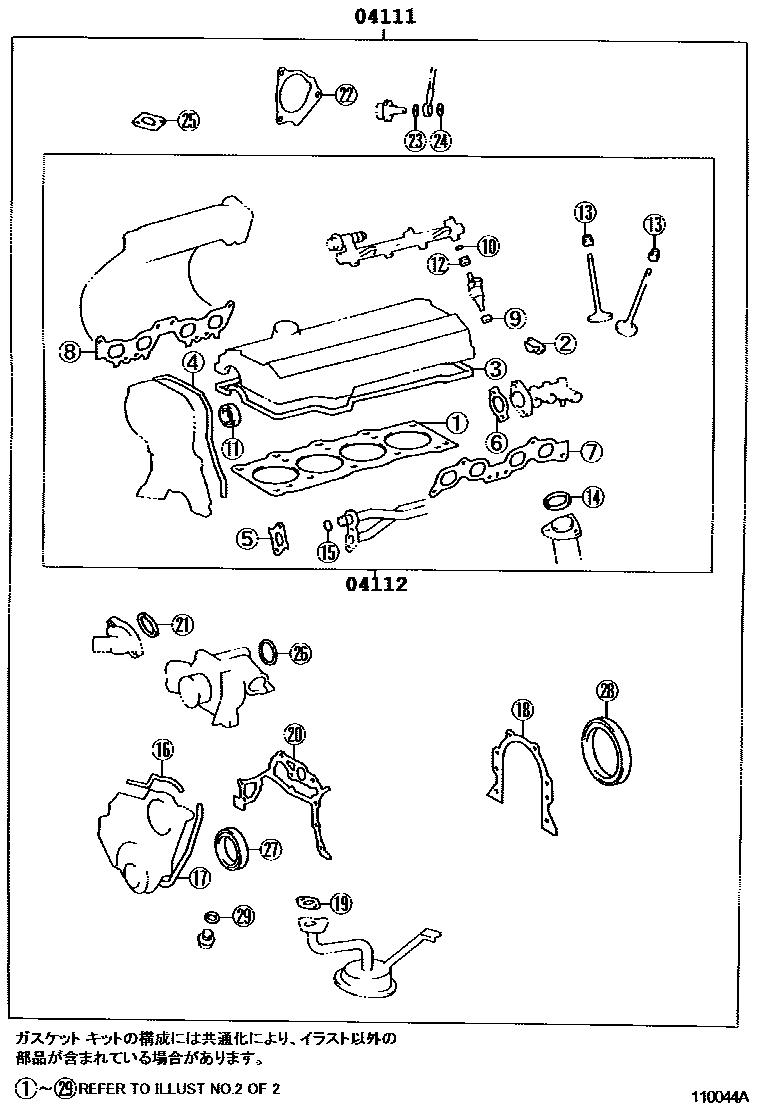

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 110044A
Engine Overhaul Gasket Kit — 110044A (199612 – 999999)

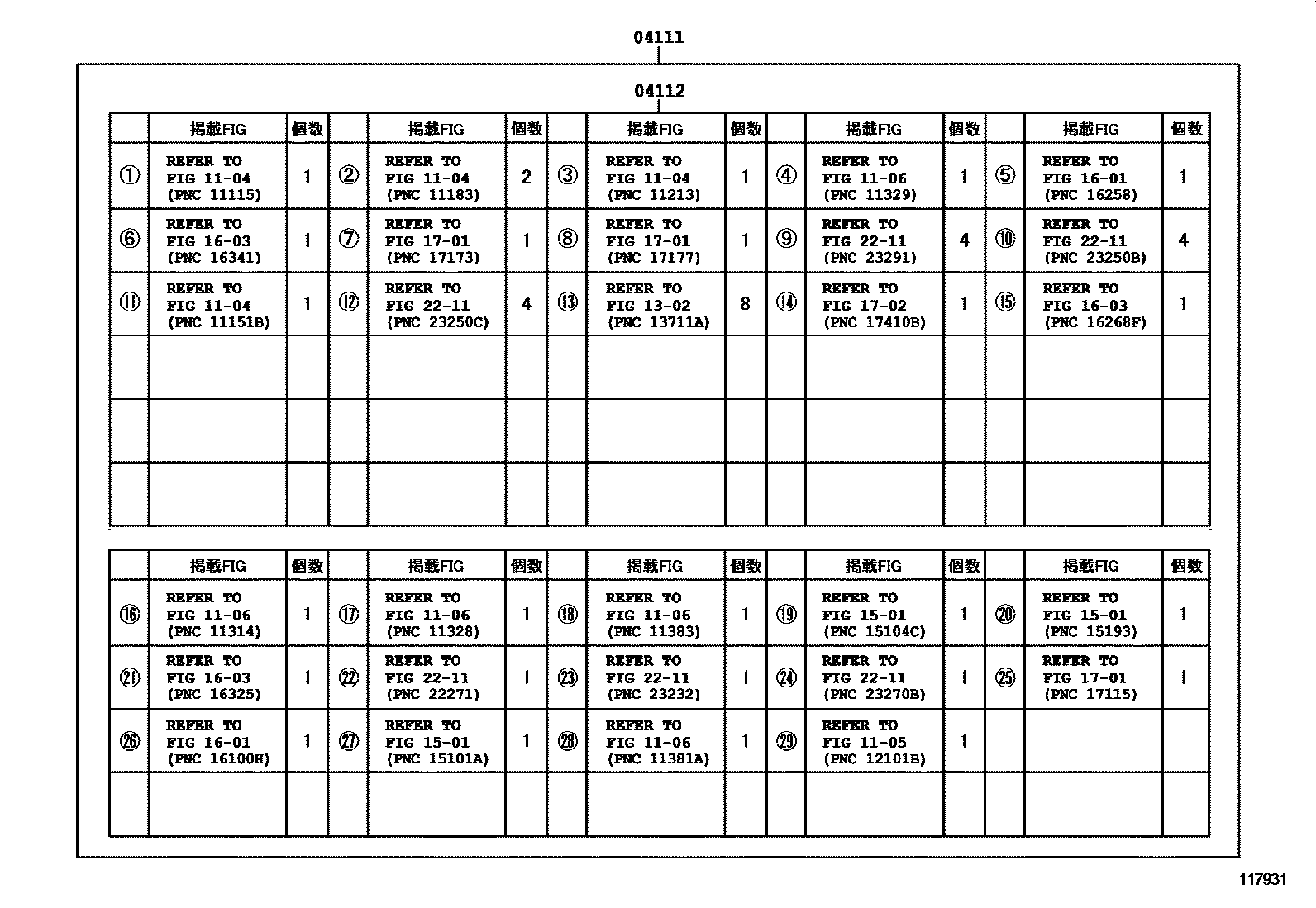

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 117931
Engine Overhaul Gasket Kit — 117931 (199612 – 999999)

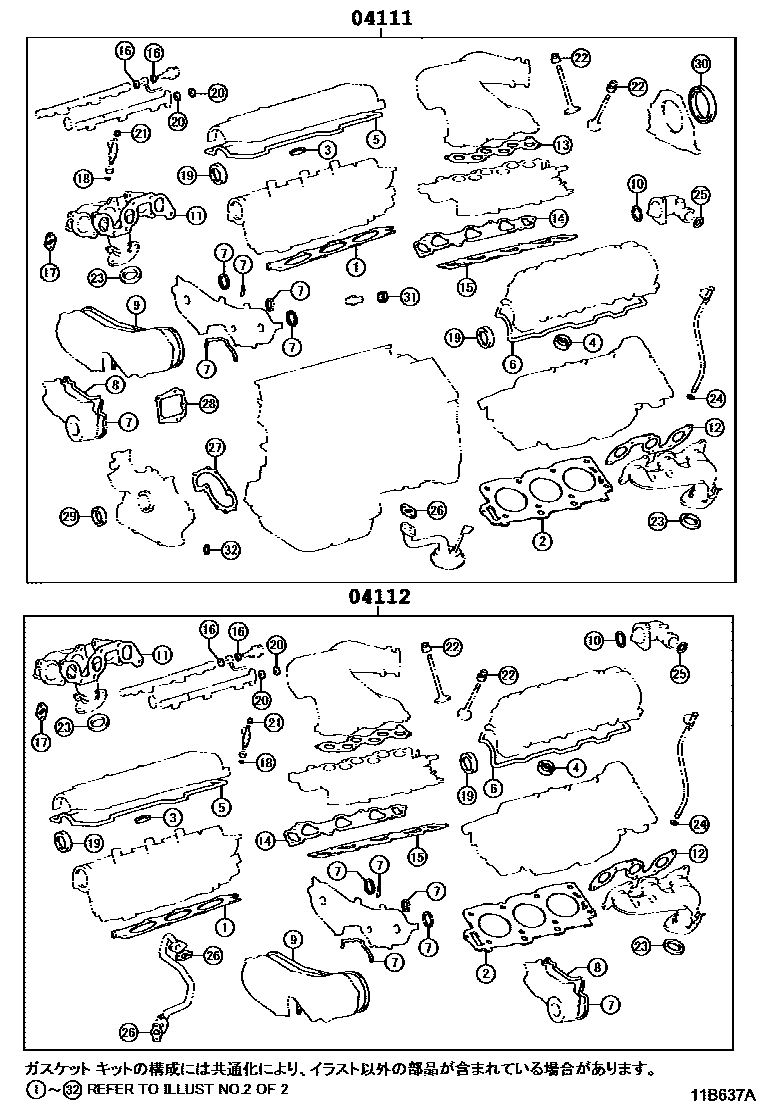

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11B637A
Engine Overhaul Gasket Kit — 11B637A (199612 – 999999)

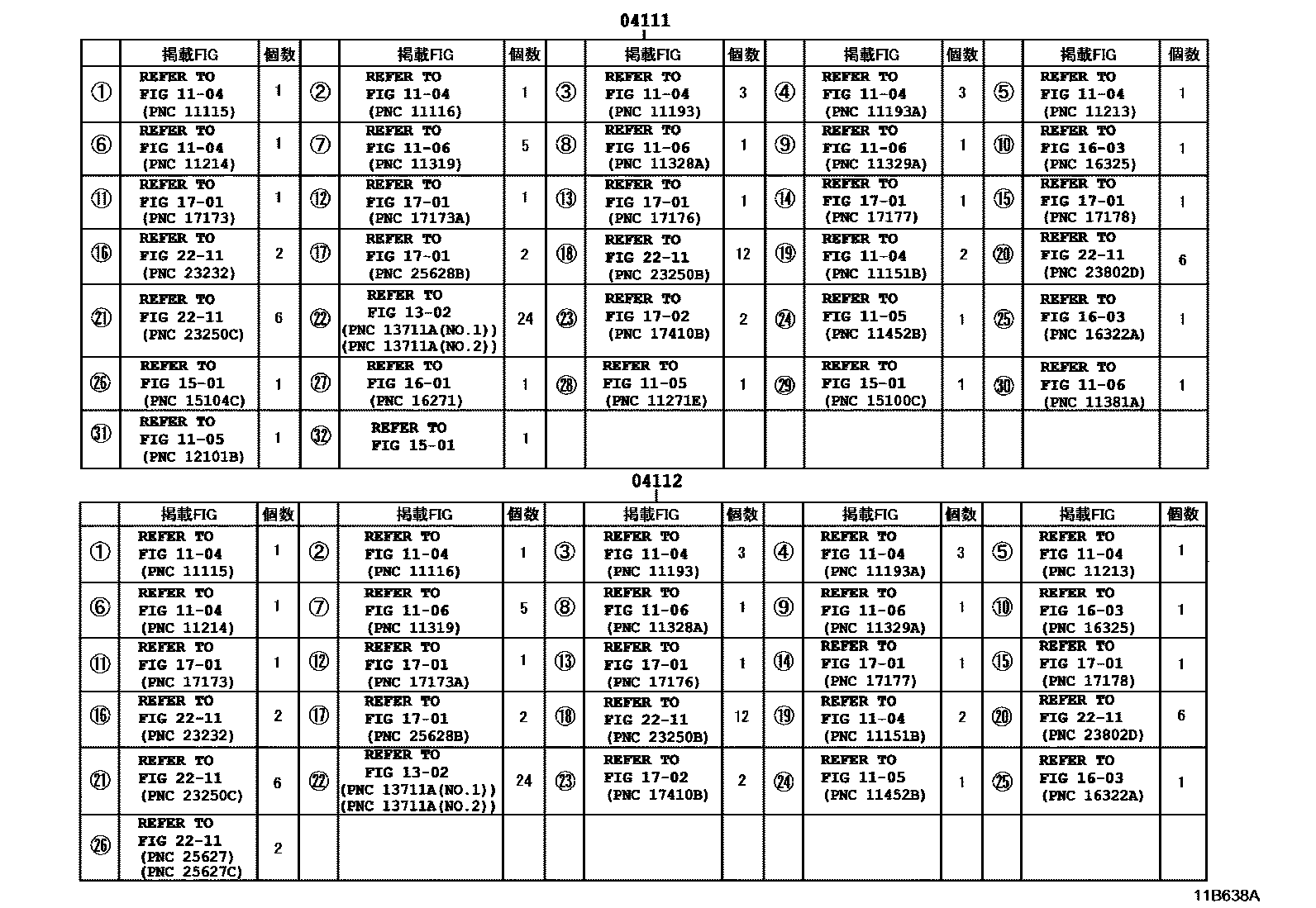

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11B638A
Engine Overhaul Gasket Kit — 11B638A (199612 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-20040 · 04111-20041 · 04111-20042 · 04111-74641
04112Engine valve grinding pad assembly04112-20030 · 04112-20031 · 04112-20032 · 04112-74581
