Toyota CAMRY 空气净化器或离子发生器 — Figure 8724

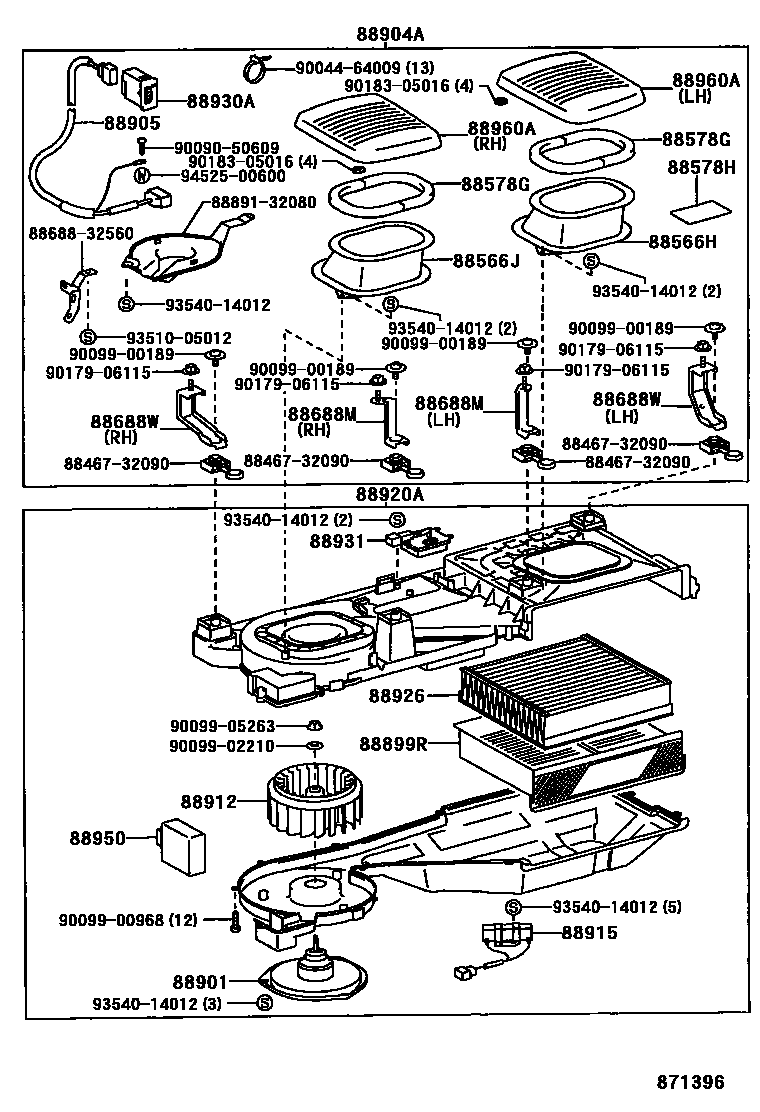

Toyota CAMRY EPC diagram 8724, 空气净化器或离子发生器, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88566H | No. 1 air duct | 88566-32110 · 88566-32120 |
| 88566J | Duct No. 2 | 88566-32110 · 88566-32120 |
| 88578G | No. 1 air purifier seal | 88578-32080 · 88578-32090 |
| 88578H | No. 2 air purifier seal | 88578-30370 |
| 88688M | Air purifier bracket No. 2 | 88688-32580 · 88688-32590 · 88688-32620 · 88688-32630 |
| 88688W | Air purifier bracket No. 1 | 88688-32570 · 88688-32600 · 88688-32610 |
| 88899R | air purifier frame | 88899-50011 |
| 88901 | Air purifier motor sub-assembly | 88901-22310 |
| 88905 | Air purifier No. 1 wiring harness sub-assembly | 88905-32220 |
| 88912 | air purifier fan | 88912-22310 |
| 88915 | air purifier resistor | 88915-22310 |
| 88920A | Air purifier assembly | 88920-32230 |
| 88926 | air purifier filter | 88926-50011 |
| 88930A | Air purifier switch assembly | 88930-32030 |
| 88931 | smoke sensor | 88931-33010 |
| 88950 | Air purifier amplifier assembly | 88950-22310 |
