Toyota CAMRY Heating & Air Conditioning - Compressor — Figure 8719

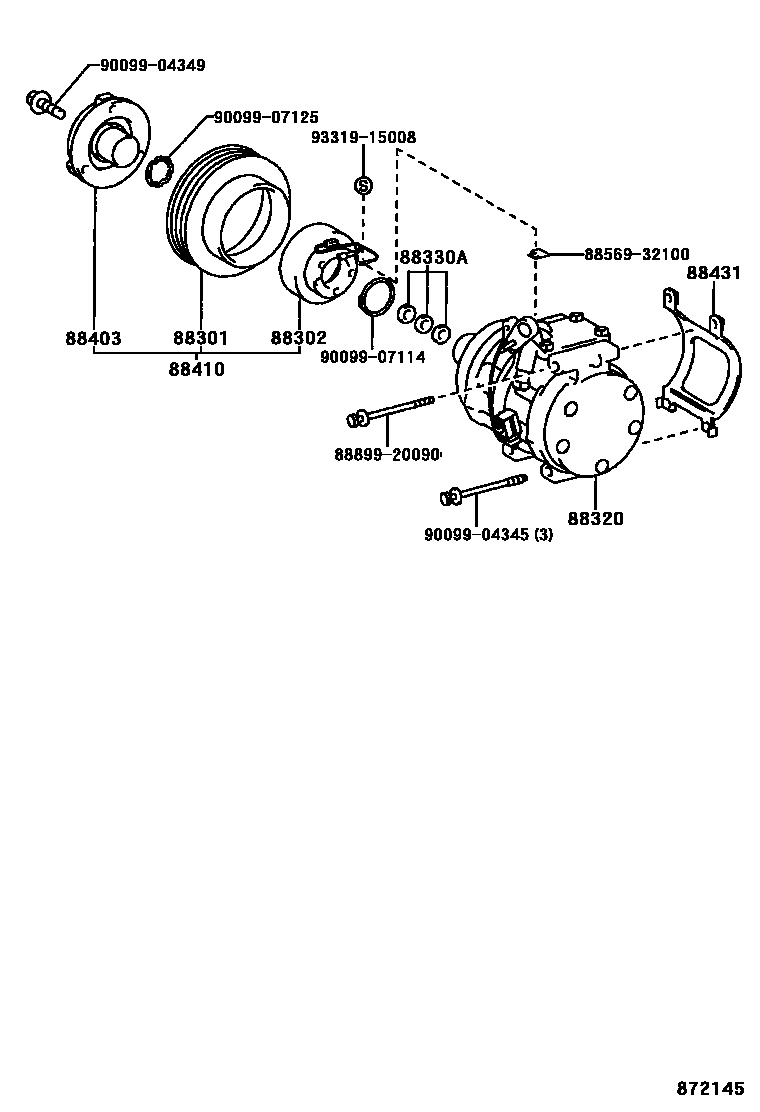

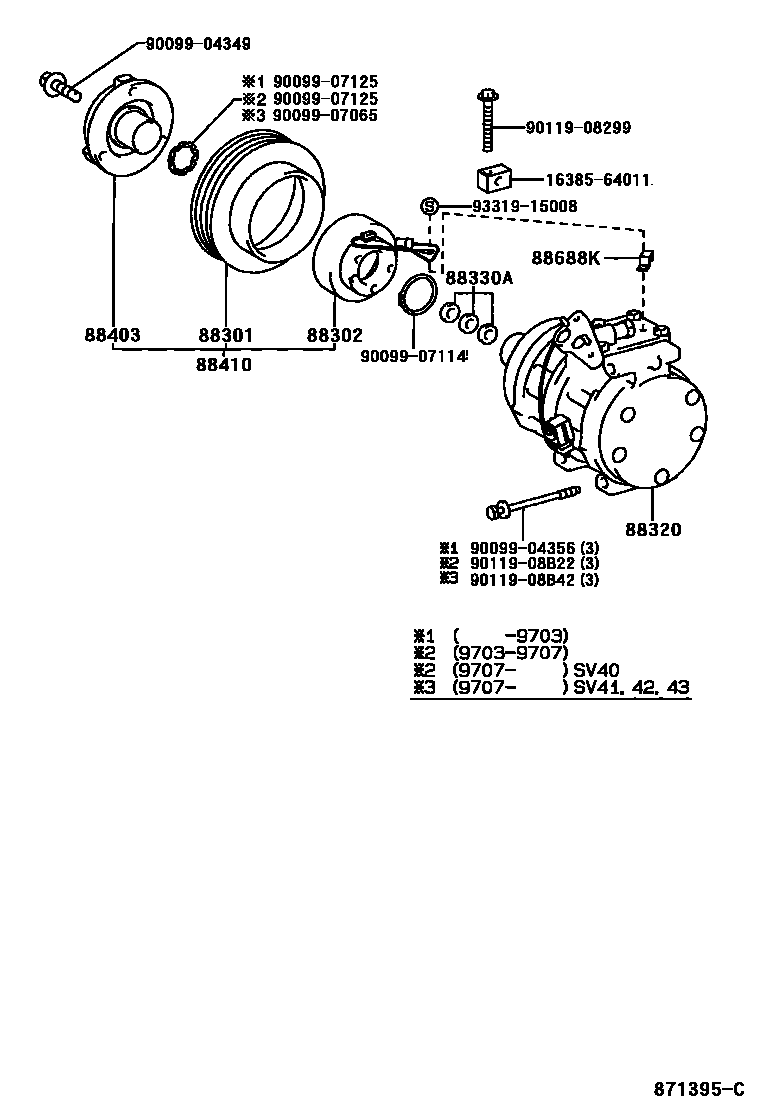

Toyota CAMRY EPC diagram 8719, Heating & Air Conditioning - Compressor, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-32040 · 88412-32060 · 88412-32070 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-2B020 · 88411-2B090 · 88411-32080 · 88411-32090 |
| 88320 | Cooler Compressor Assembly | 88320-32180 · 88320-32190 · 88320-32200 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-30290 · 88403-32010 |
| 88410 | Magnetic Clutch Assembly | 88410-32110 · 88410-32130 · 88410-32140 |
| 88431 | Compressor No. 1 mounting bracket | 88431-32030 |
| 88688K | Cooler compressor bracket | 88569-32090 · 88688-32670 |
