Toyota CAMRY Heating & Air Conditioning - Cooler Piping — Figure 8718

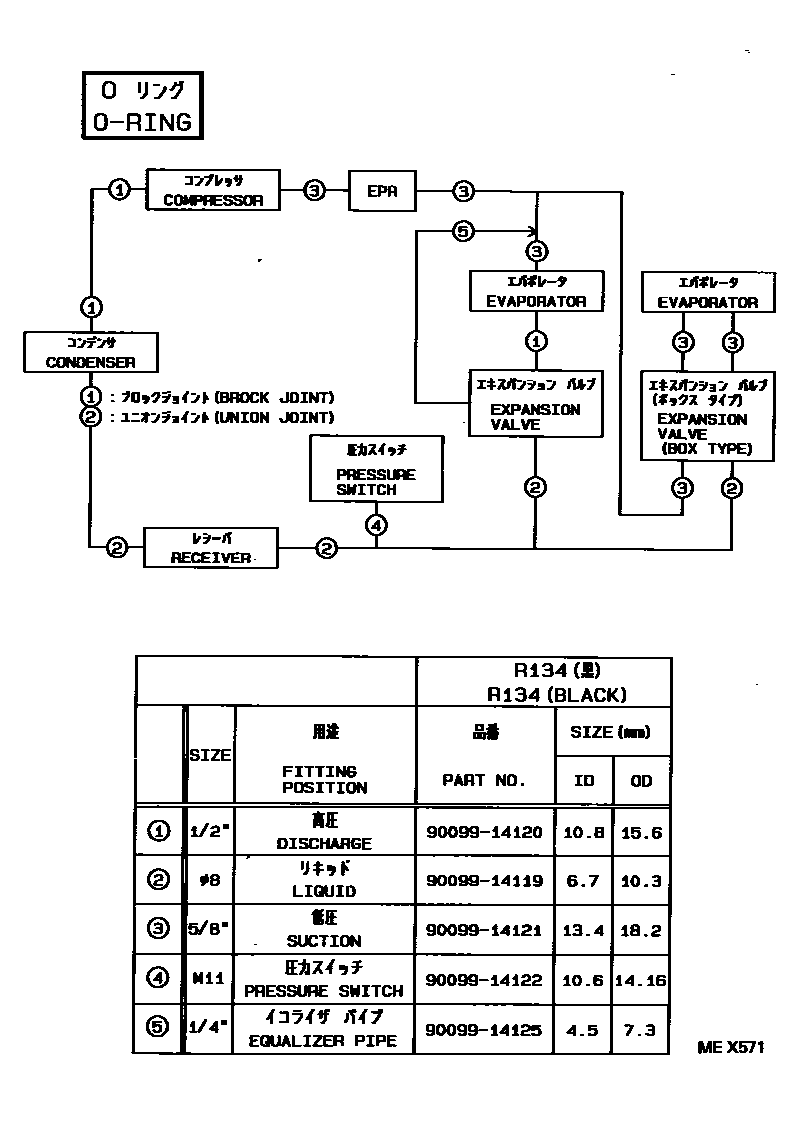

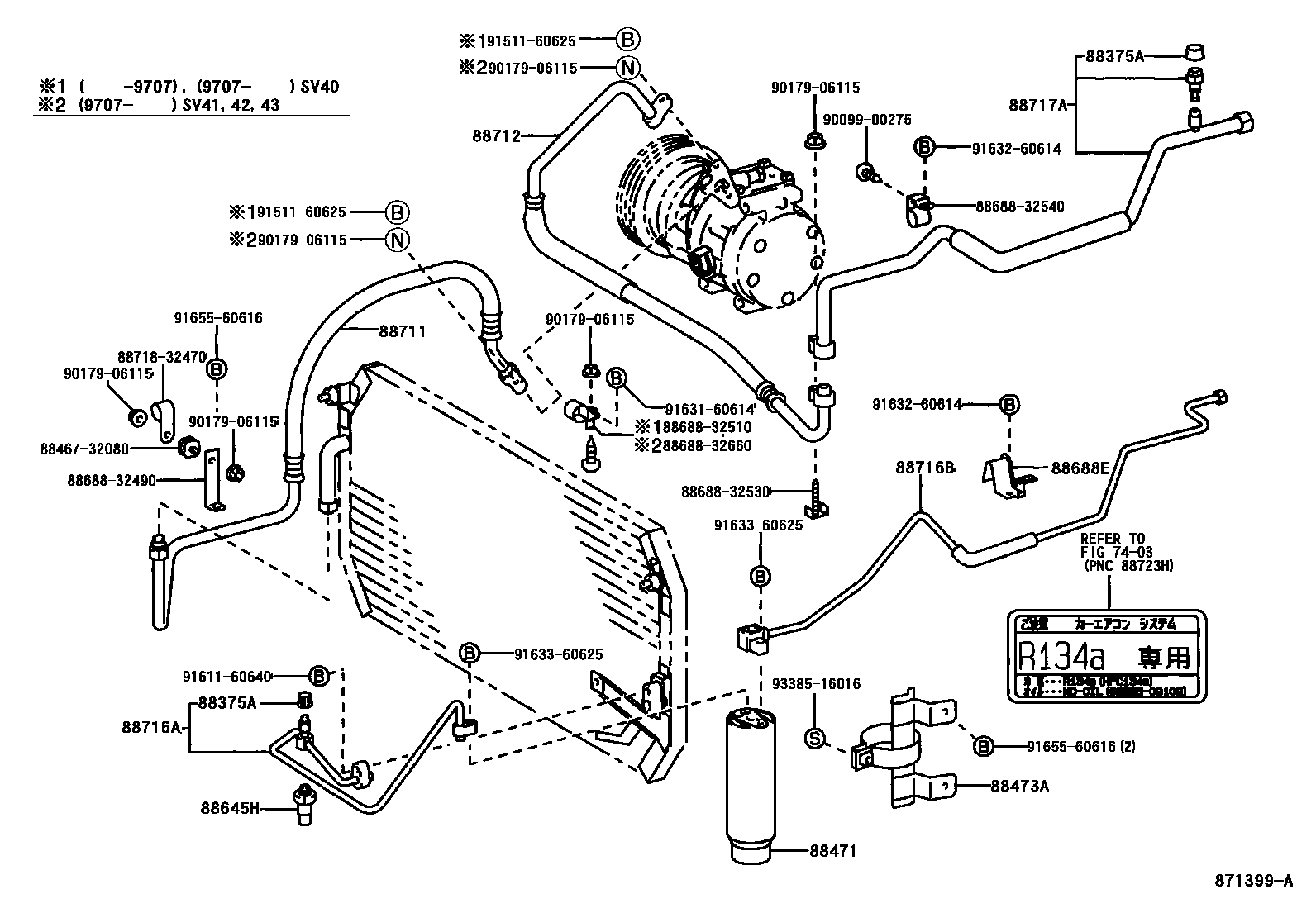

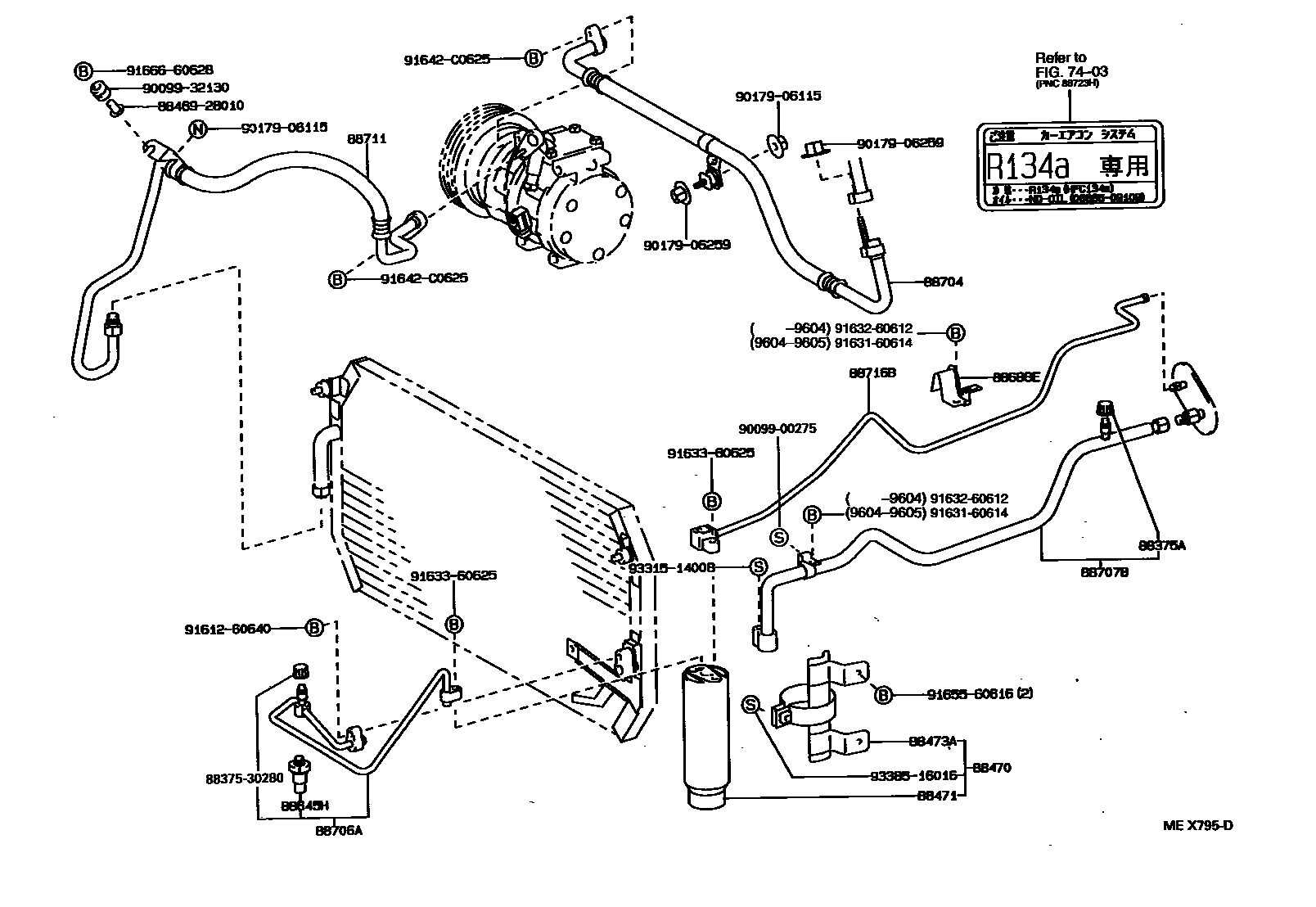

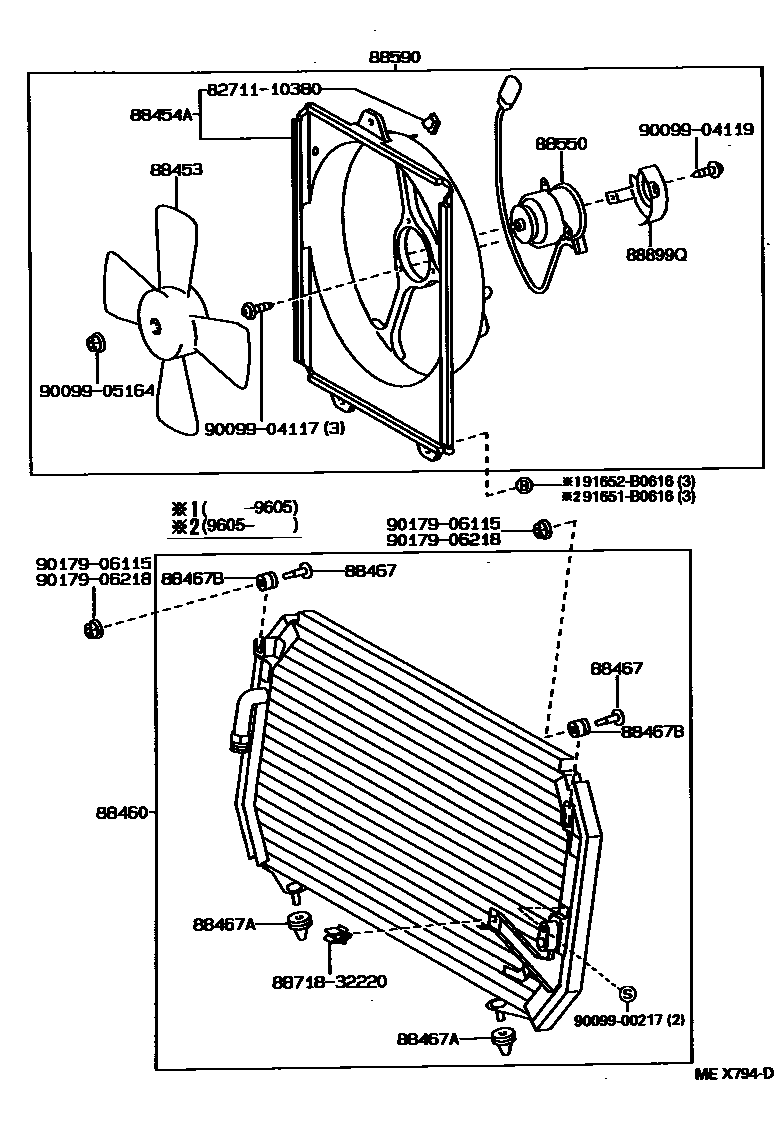

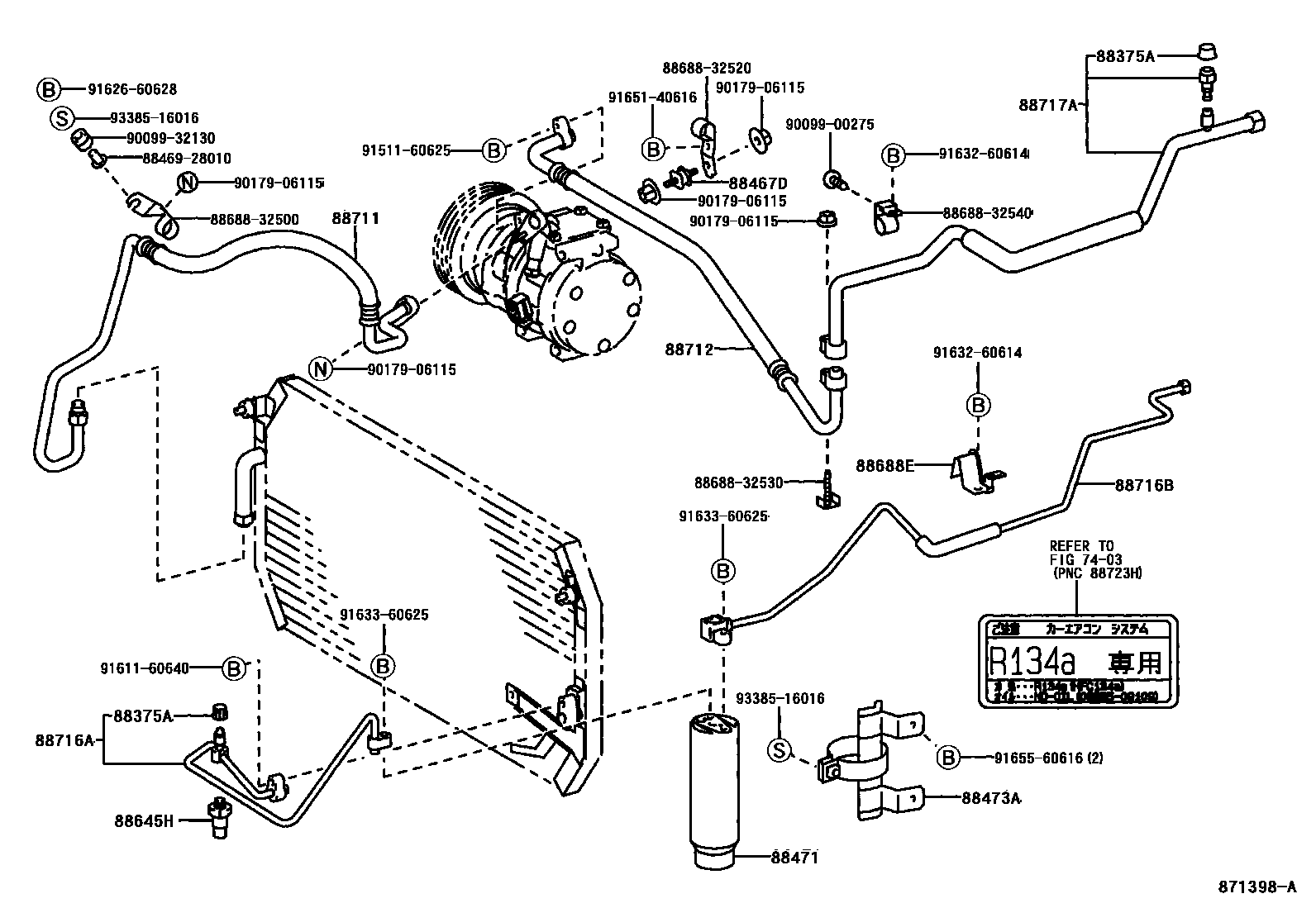

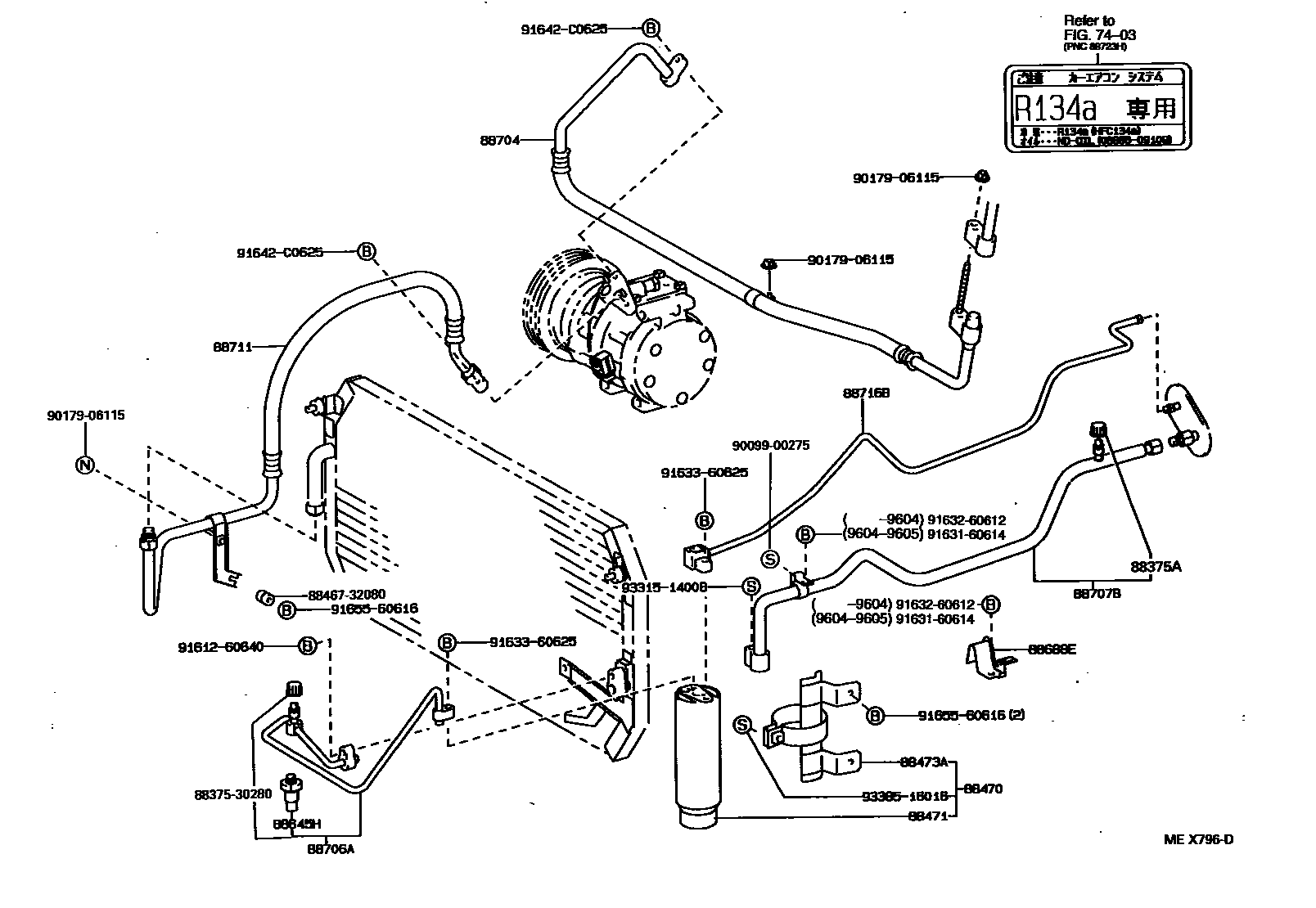

Toyota CAMRY EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 6 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88375A | Repair valve cover (for cooler tube) | 88375-30280 · 88375-30290 |
| 88453 | Cooling fan (for condenser) | 88453-33010 |
| 88454A | fan cover | 88454-32080 |
| 88460 | Air conditioning condenser assembly | 88460-32210 · 88460-32220 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-20140 |
| 88467A | No. 2 air conditioning condenser buffer pad | 88467-32060 |
| 88467B | Air conditioning condenser fixed vibration isolation pad | 88467-20040 |
| 88467D | Cooler refrigerant pipe clamp cushion pad | 88467-32070 |
| 88470 | Cooler reservoir and dryer assembly | 88470-32040 |
| 88471 | Air conditioning fluid storage tank | 88471-20050 |
| 88473A | Reservoir tank fixings | 88473-32070 |
| 88550 | Blower motor assembly (for condenser) | 16363-74210 |
| 88590 | Blower assembly with hood | 88590-32170 |
| 88645H | No. 1 pressure switch | 88645-20050 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-32550 |
| 88704 | Oil suction hose sub-assembly | 88704-32100 · 88704-32110 · 88704-32130 |
| 88706A | Liquid pipe A sub-assembly | 88706-32020 |
| 88707B | Suction pipe B sub-assembly | 88707-32020 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88703-32010 · 88703-32020 · 88711-32170 · 88711-32180 · 88711-32190 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-32360 · 88712-32370 · 88712-32380 · 88712-32420 · 88712-32430 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-32490 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-32500 |
| 88717A | Cooler refrigerant suction pipe A | 88717-32390 |
| 88899Q | Cover plate | 88899-20290 |
