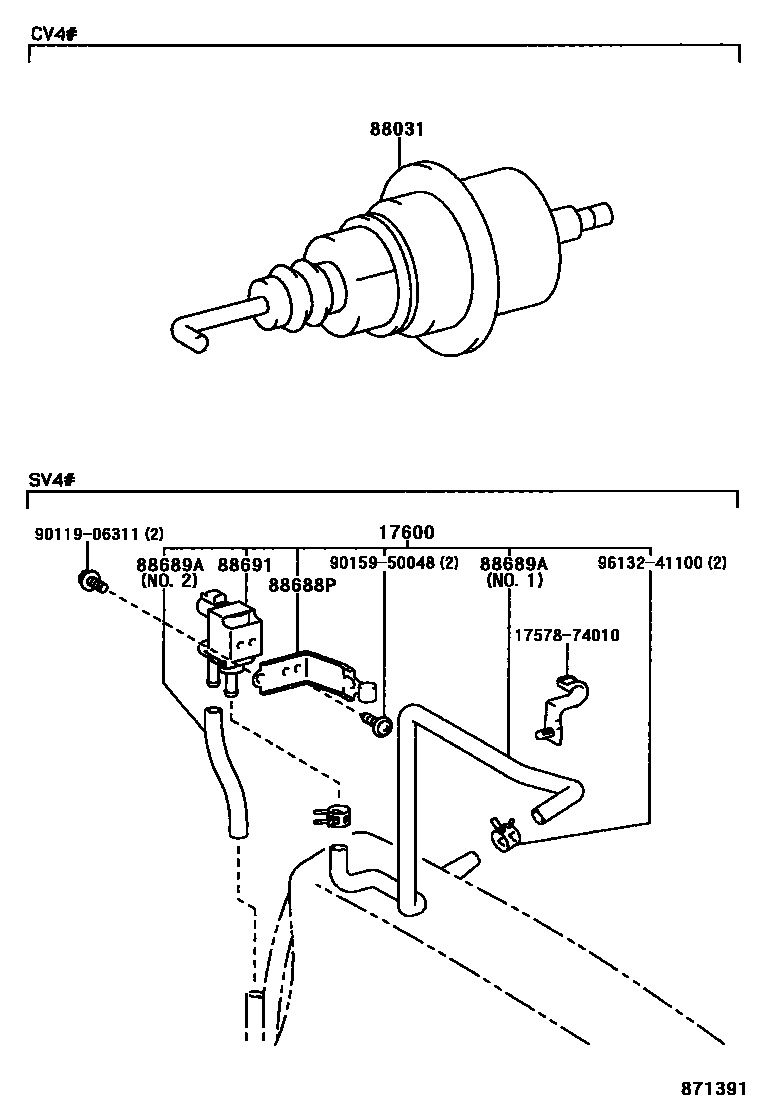

Toyota CAMRY 暖风和空调系统 - 真空管 — Figure 8717
Toyota CAMRY EPC diagram 8717, 暖风和空调系统 - 真空管, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17600 | Air bypass valve assembly with hose | 17600-74220 |
| 88031 | Idle speed lift actuator assembly | 88031-27040 |
| 88688P | Bracket (for solenoid valve) | 88688-2D580 |
| 88689A | Cooler Vacuum Hose No. 1 | 17347-74060 |
| 88691 | Solenoid valve (for idle speed lifting device) | 90910-13004 |
