Toyota CAMRY 暖风和空调系统 - 水管 — Figure 8716

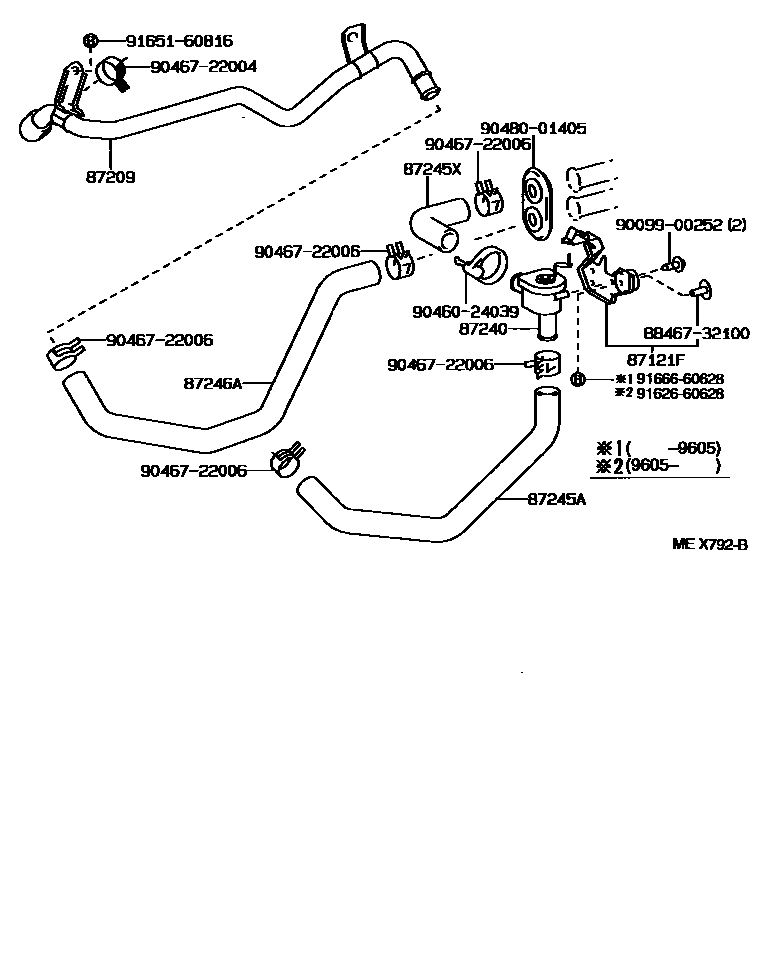

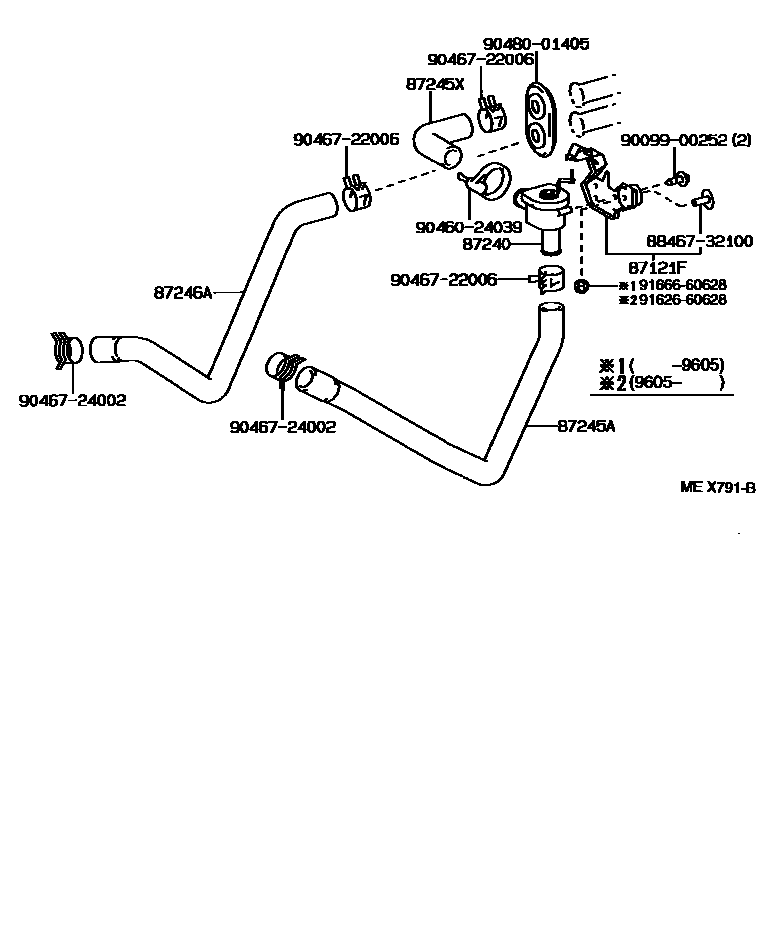

Toyota CAMRY EPC diagram 8716, 暖风和空调系统 - 水管, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87121F | heater bracket | 87121-32020 |
| 87209 | Water hose sub-assembly | 87209-32030 |
| 87240 | Heater water valve assembly | 87240-32040 |
| 87245A | Heater water inlet hose A | 87245-32330 · 87245-32350 · 87245-32380 |
| 87245X | heater water hose | 87245-32370 |
| 87246A | Heater outlet hose A | 87245-32340 · 87245-32360 · 87245-32410 |
