Toyota CAMRY 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota CAMRY EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

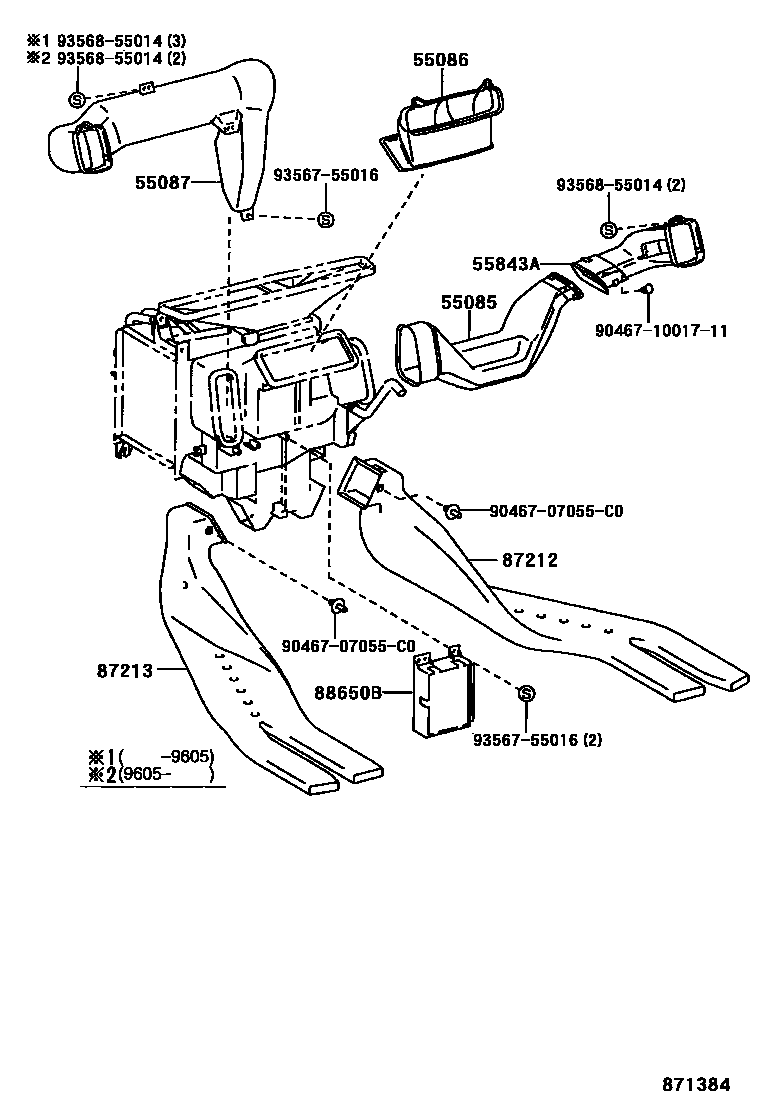

| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55085-32130 |
| 55086 | Heater to air regulator No. 3 air duct sub-assembly | 55086-32080 |
| 55087 | Heater to air regulator No. 4 air duct sub-assembly | 55087-32040 |
| 55843A | Air duct No. 1 from heater to air register | 55843-32070 |

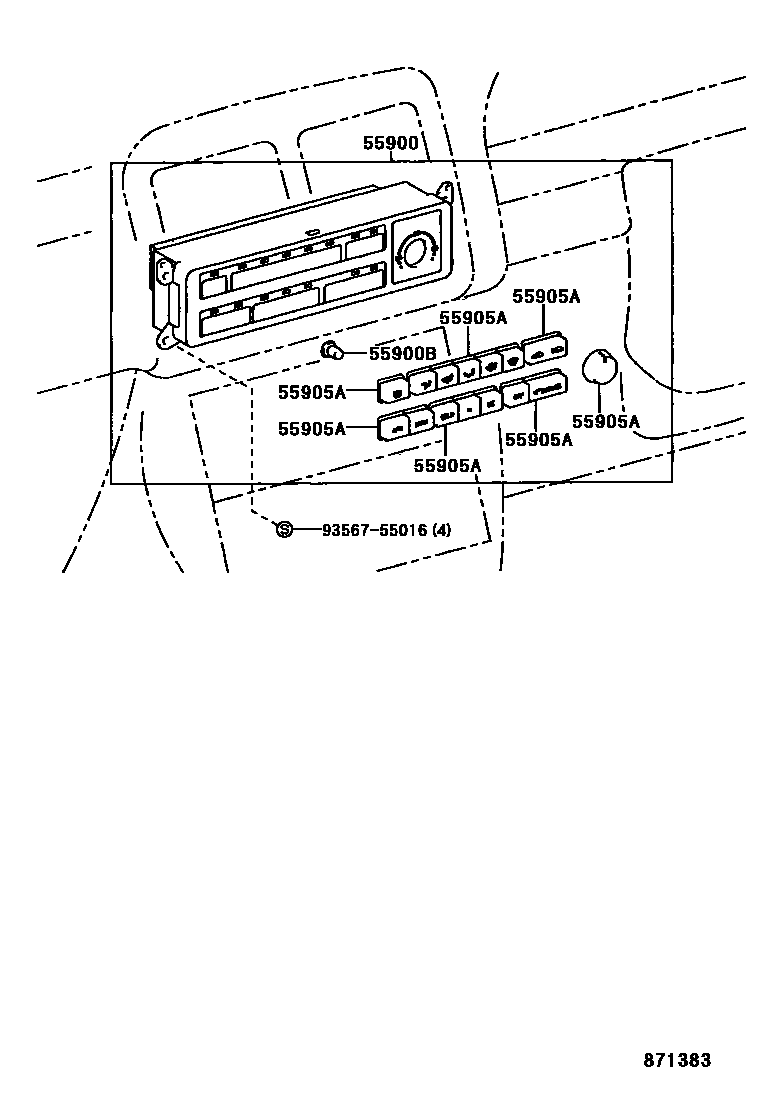

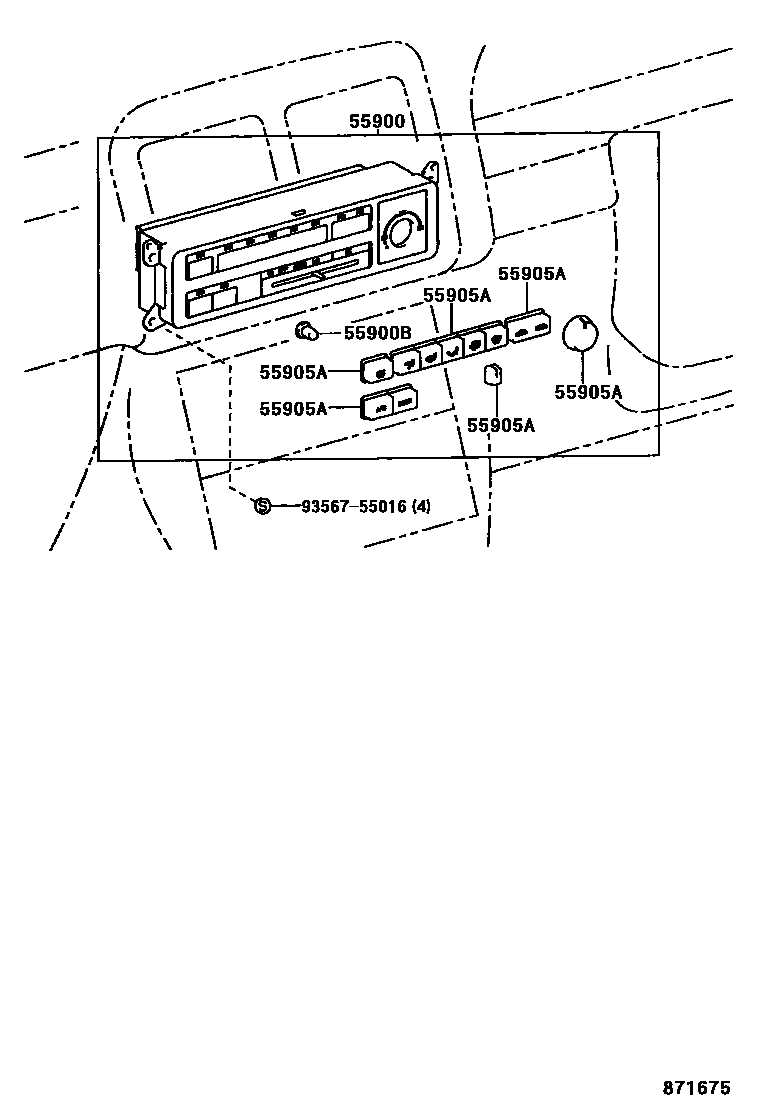

| 55900 | Air conditioning control assembly | 55900-32330 · 55900-32340 · 55900-32350 · 55900-32360 · 55900-32370 · 55900-32380 · 55900-32390 · 55900-32400 |
| 55900B | air conditioning control light bulb | 84999-70007 |
| 55905A | Heater control button | 55905-20380 · 55905-32700 · 55905-32710 · 55905-32720 · 55905-32730 · 55905-32740 · 55905-32750 · 55905-32760 · 55905-32770 · 55905-32780 · 55905-32790 · 55905-32800 · 55905-32810 · 55905-32820 · 55905-32830 · 55905-32840 · 55905-32850 |
| 87212 | No. 1 rear air duct | 87212-32030 |
| 87213 | No. 2 rear air duct | 87213-32020 |

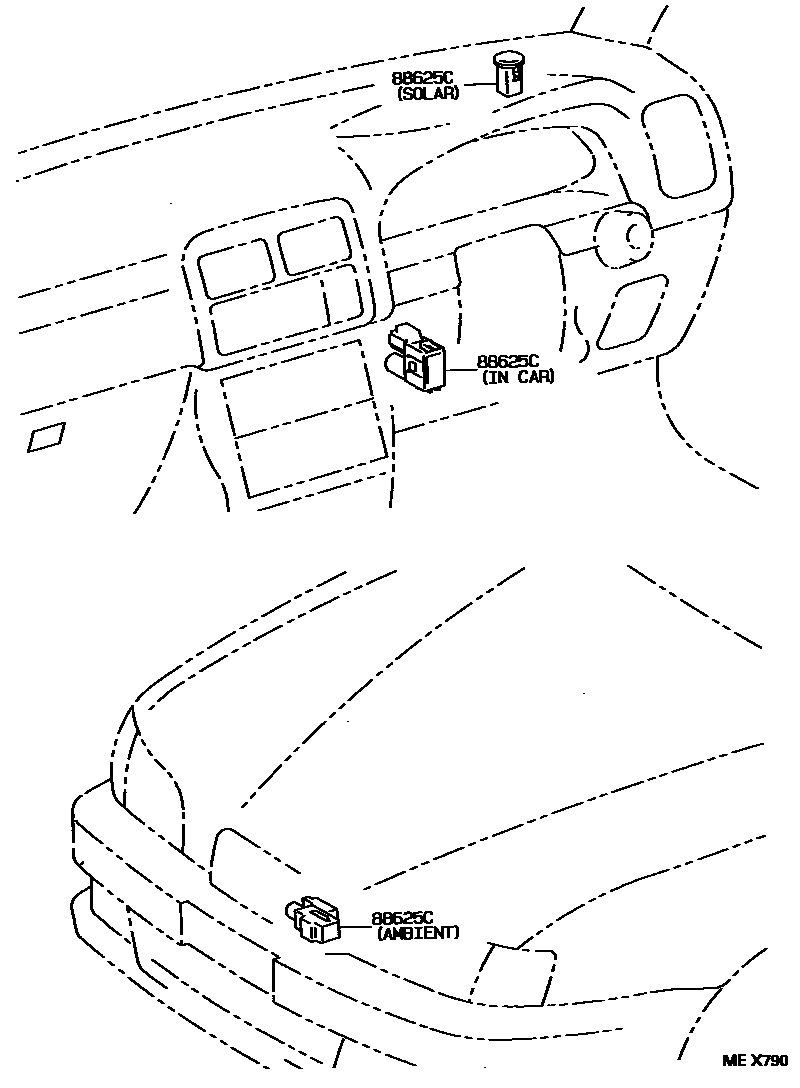

| 88625C | Cooler thermistor | 88625-20490 · 88625-32160 · 88625-32170 · 88625-33010 |
| 88650B | Air conditioning amplifier assembly | 88650-32370 · 88650-32380 · 88650-32400 · 88650-32410 |
