Toyota CAMRY 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712

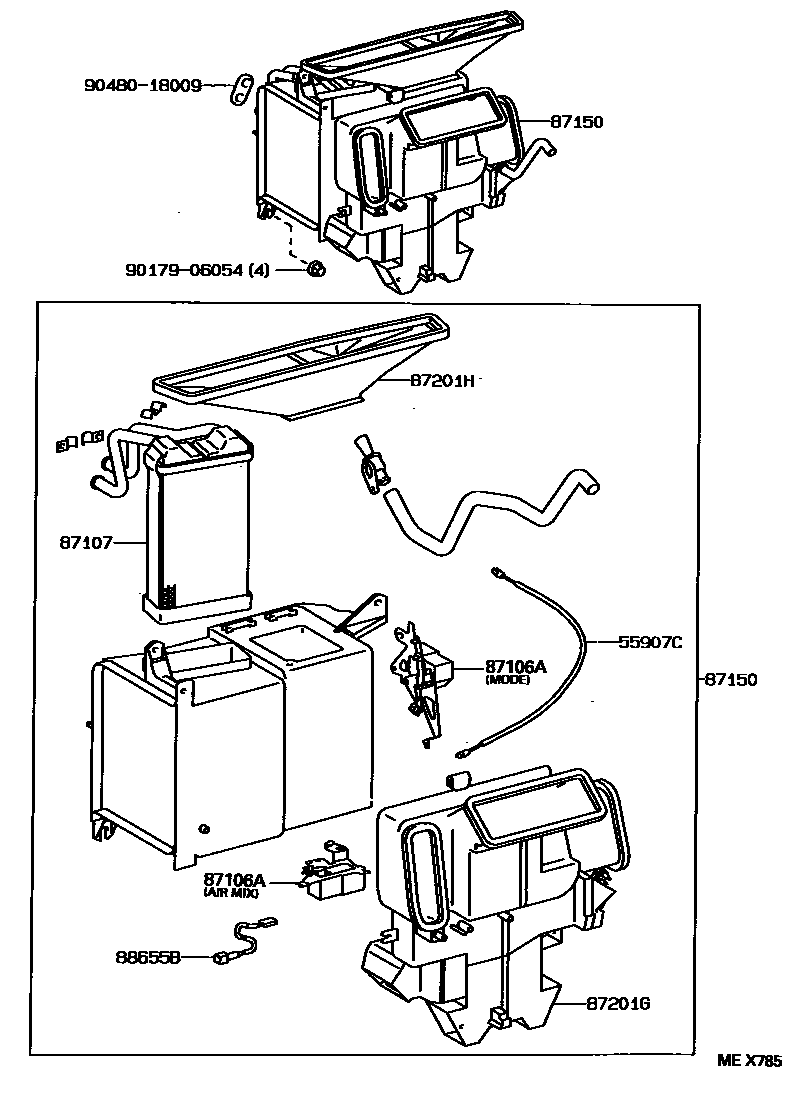

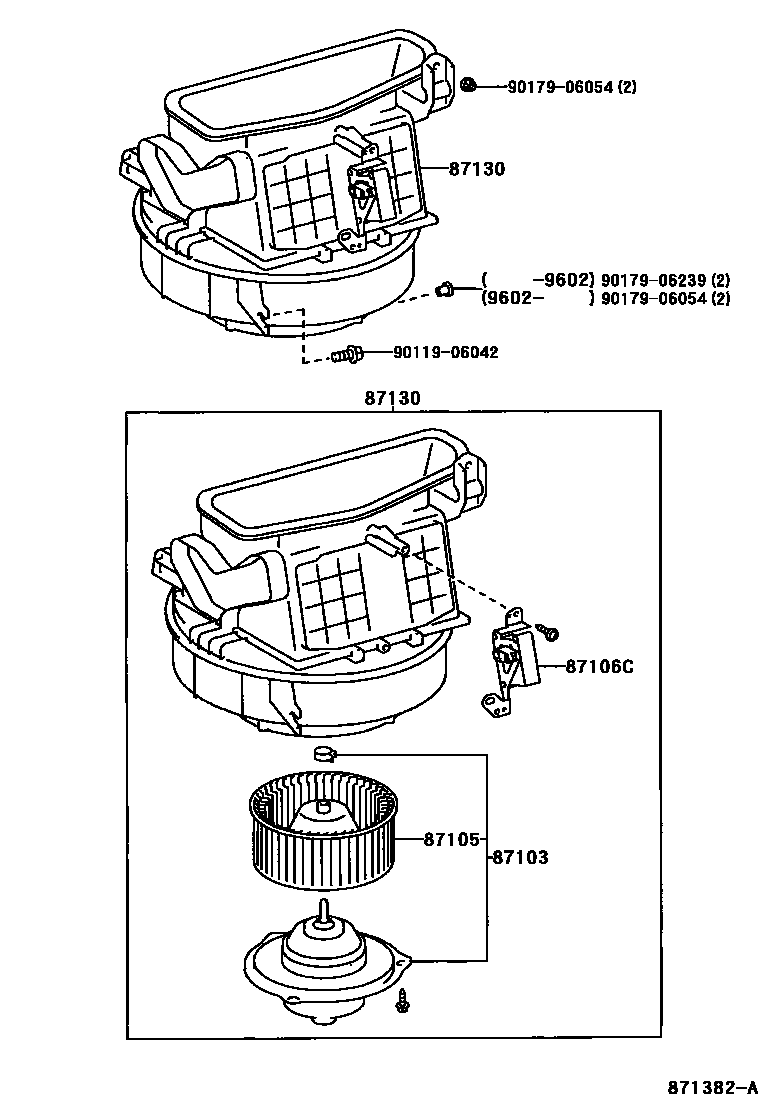

Toyota CAMRY EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55907C | Water valve control cable sub-assembly | 87286-32050 |
| 87103 | Heater blower motor sub-assembly with fan | 87103-20050 |
| 87105 | Heater blower fan sub-assembly | 87105-20100 |
| 87106A | Damper servo mechanism sub-assembly | 87106-32130 · 87106-32140 · 87106-32150 · 87106-32160 |
| 87106C | Damper servo mechanism sub-assembly (for blower) | 87106-32170 |
| 87107 | Heater radiator device sub-assembly | 87107-32100 · 87107-32110 |
| 87130 | Front heater blower assembly | 87130-32150 |
| 87150 | Heater radiator assembly | 87150-32290 · 87150-32300 · 87150-32310 · 87150-32320 |
| 87201G | Air duct sub-assembly | 87201-32240 |
| 87201H | Air duct sub-assembly | 87201-32250 |
| 88655B | Water temperature switch | 88655-22020 |
