Toyota CAMRY 扬声器 — Figure 8602

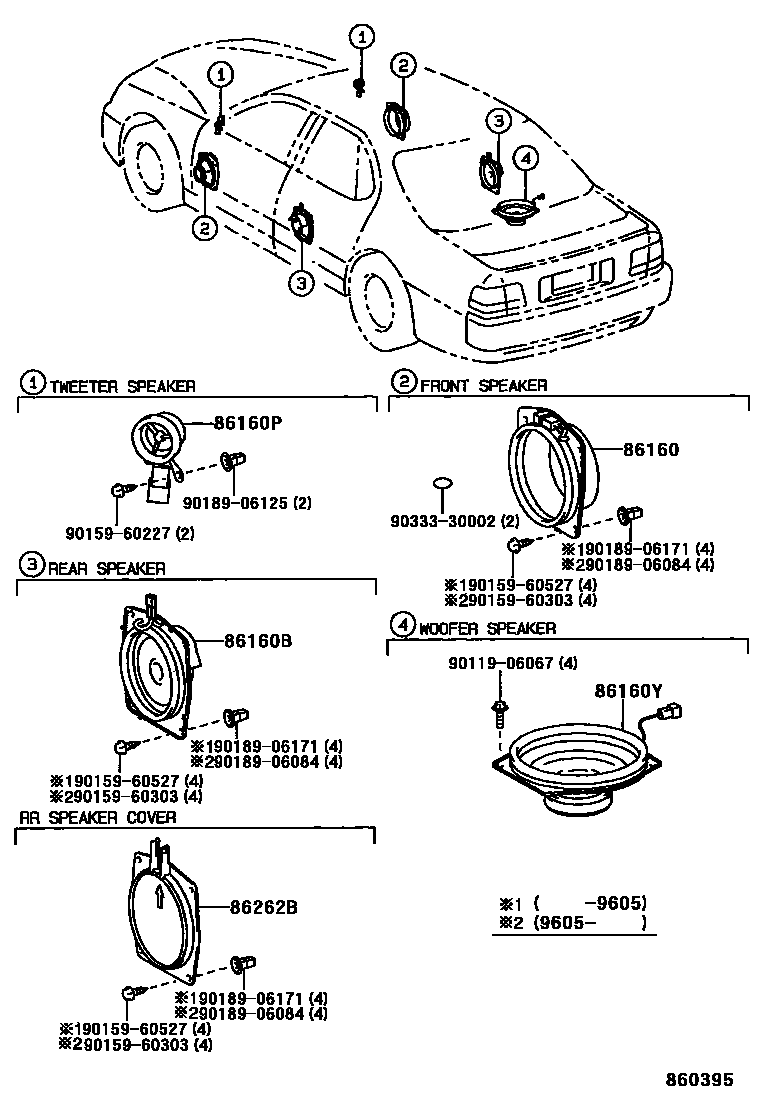

Toyota CAMRY EPC diagram 8602, 扬声器, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-32360 |
| 86160B | Rear speaker assembly | 86160-32370 · 86160-32470 |
| 86160P | No. 2 front speaker assembly | 86160-32440 · 86160-32450 |
| 86160Y | No. 2 rear speaker assembly | 86160-32460 |
| 86262B | rear speaker cover | 86262-32010 |
