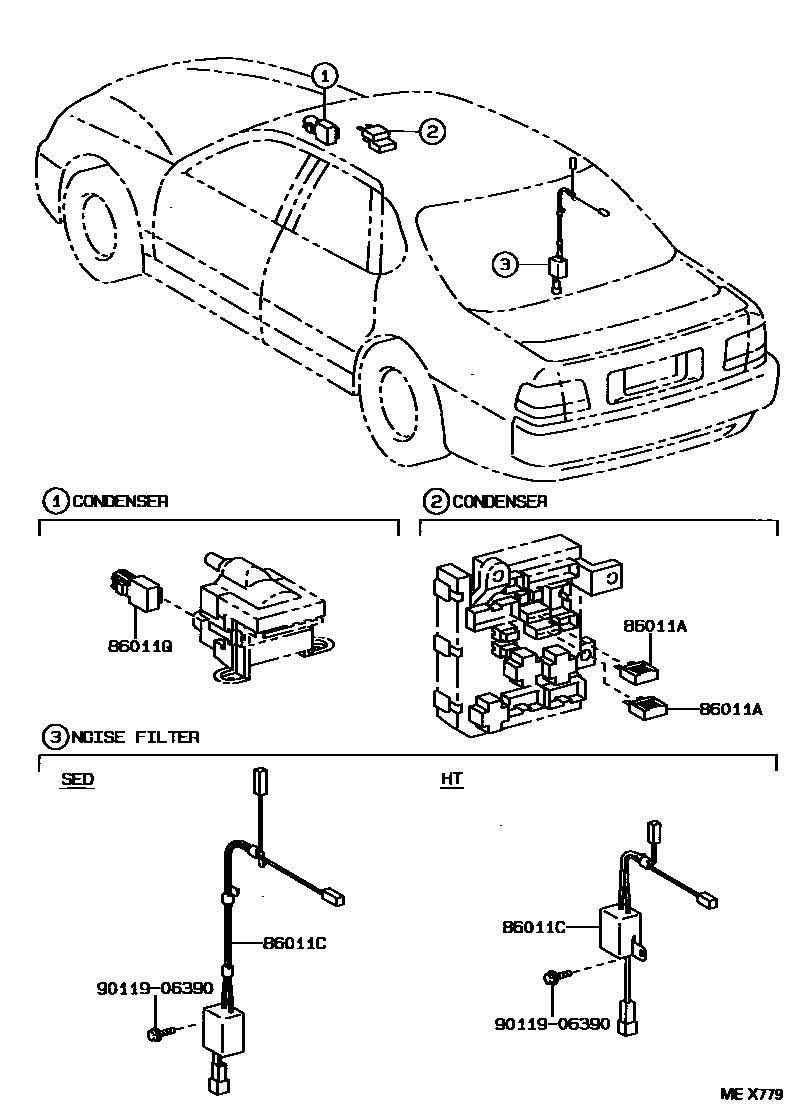

Toyota CAMRY 收音机、放大器和冷凝器 — Figure 8601
Toyota CAMRY EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011A | radio settings phase modulator | 90980-04066 |
| 86011C | Noise filter | 90980-05261 · 90980-05289 · 90980-05290 |
| 86011Q | radio settings phase modulator | 90980-04083 · 90980-04128 |
| 86120 | Radio assembly | 86120-10450 · 86120-28240 · 86120-2B461 · 86120-2B471 · 86120-32480 |
| 86211 | No. 1 radio bracket | 86211-32080 · 86211-32090 |
| 86212 | No. 2 radio bracket | 86212-32080 · 86212-32090 |
| 86280 | Stereo parts amplifier assembly | 86280-32130 |
