Toyota CAMRY 座椅电机和座椅加热器 — Figure 8513

Toyota CAMRY EPC diagram 8513, 座椅电机和座椅加热器, with 1 images and 4 PNC and OE references.

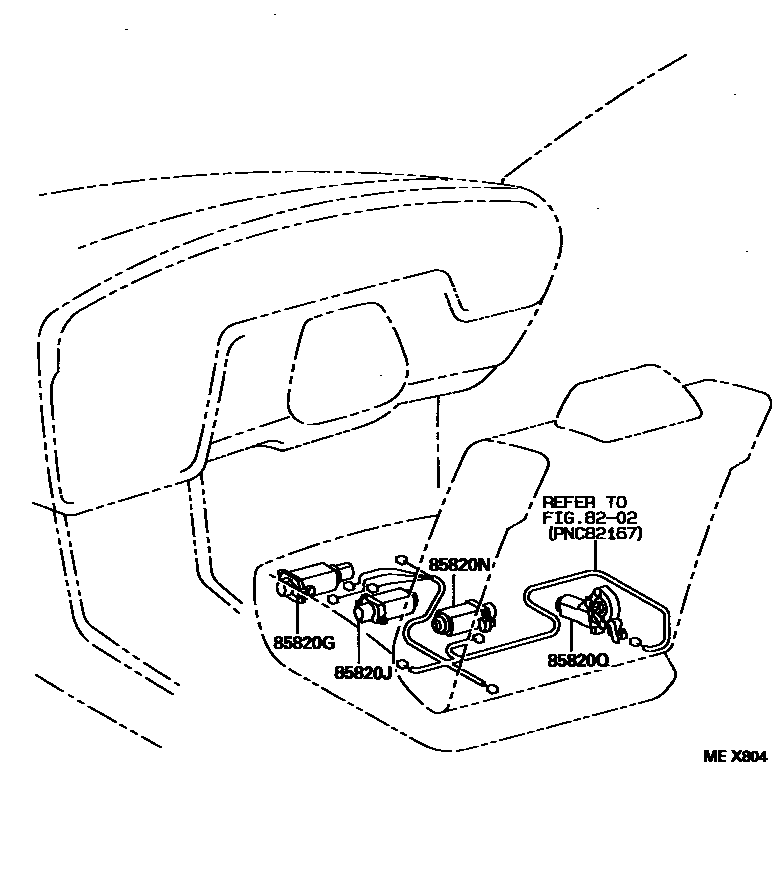

Toyota CAMRY 座椅电机和座椅加热器 EPC diagram — MEX804
座椅电机和座椅加热器 — MEX804 (199406 – 999999)

PNC and OE references

PNCPart nameOE numbers
85820GElectric seat motor assembly85820-30510 · 85820-32050
85820JElectric seat motor assembly85820-30510 · 85820-32030
85820NElectric seat motor assembly (for front right seat sliding)85820-30510 · 85820-32040
85820QElectric seat motor assembly (for front right seat tilt)85820-30570 · 85820-32020
