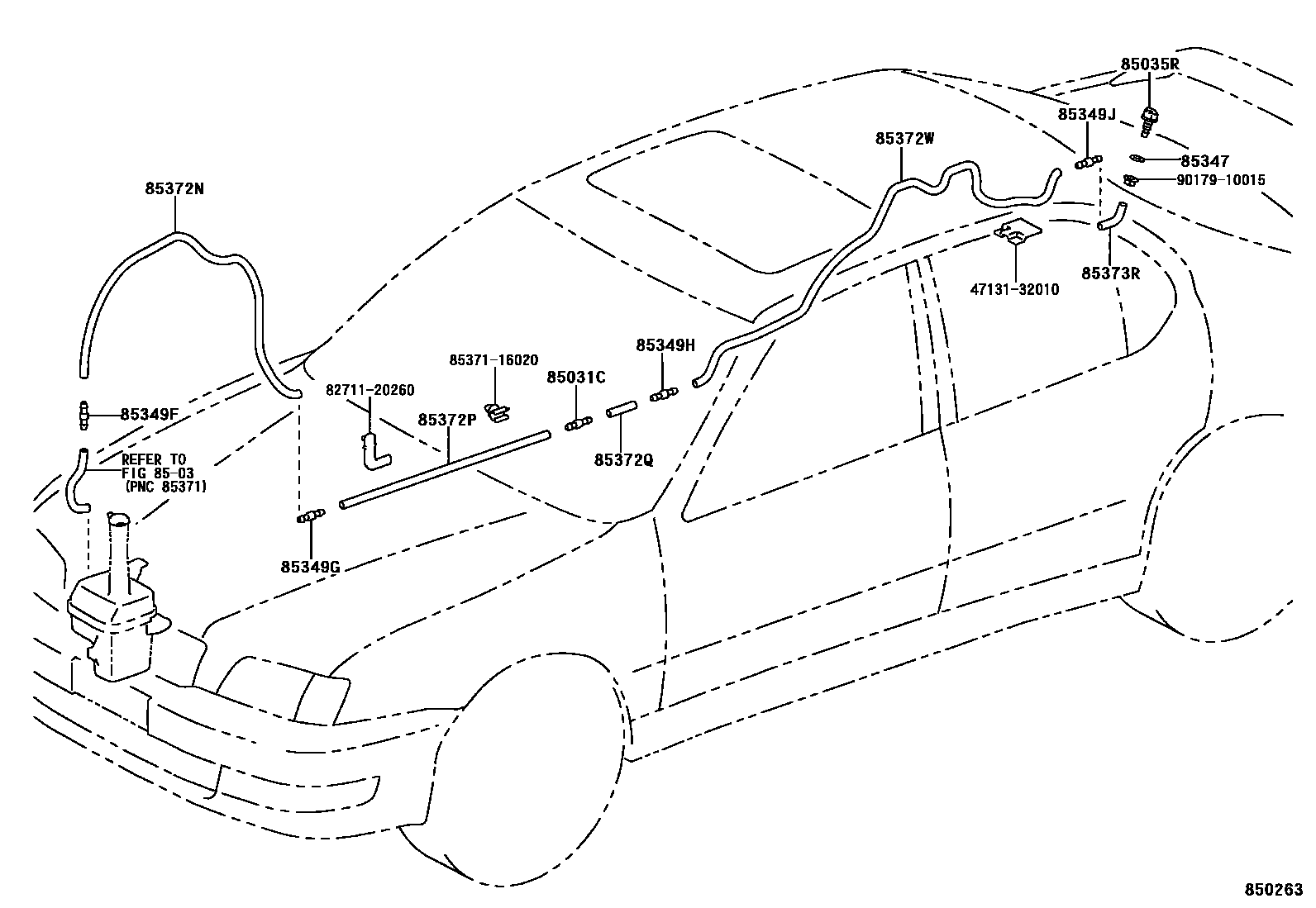

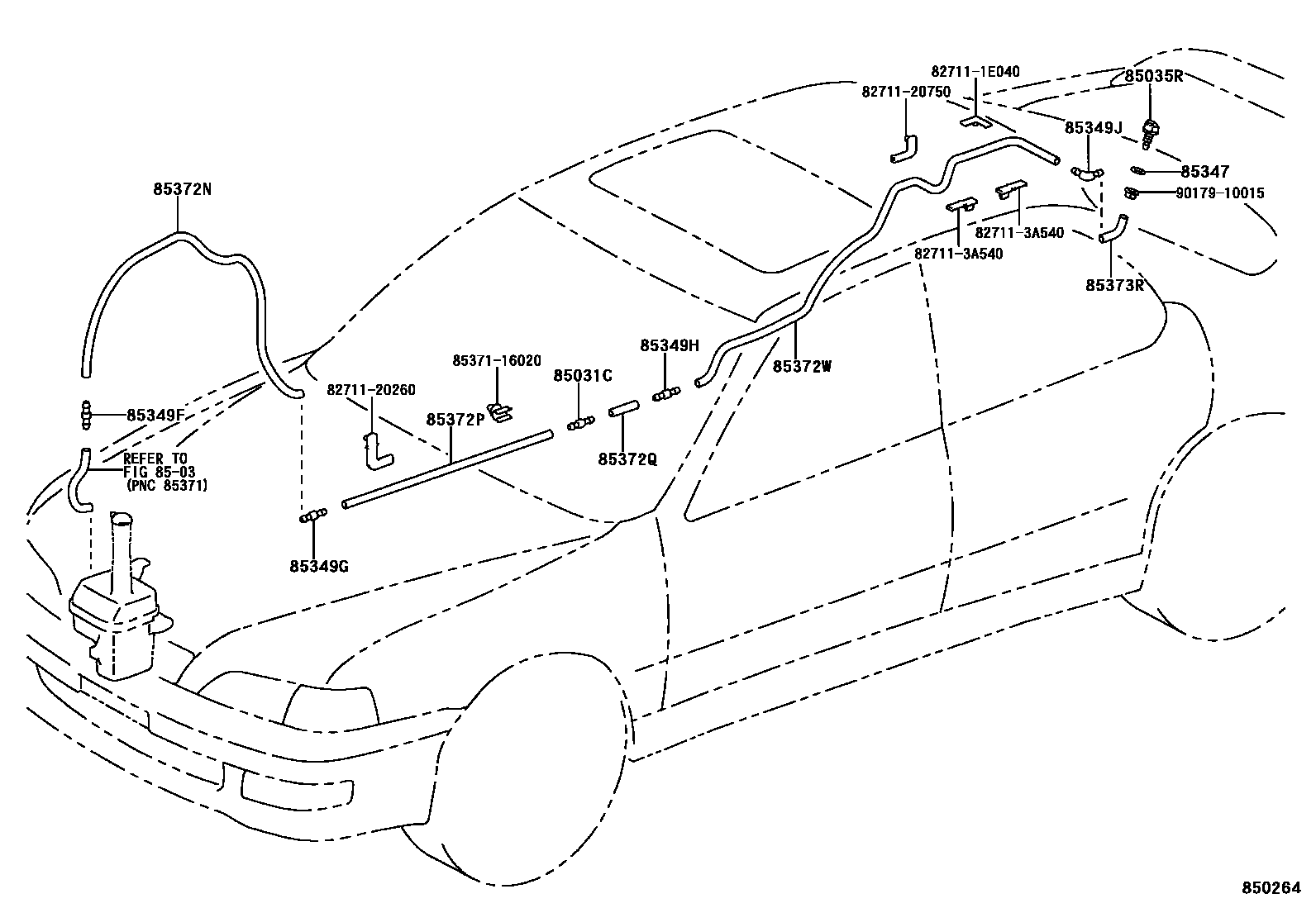

Toyota CAMRY 后清洗器 — Figure 8504
Toyota CAMRY EPC diagram 8504, 后清洗器, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031C | Cleaner valve sub-assembly | 85031-90A00 |
| 85035R | Rear washer nozzle sub-assembly | 85391-32030 · 85391-32040 |
| 85347 | Rear washer seal | 85347-12010 |
| 85349F | No. 1 rear washer hose connector | 85349-89122 |
| 85349G | No. 2 rear washer hose connector | 85349-89122 |
| 85349H | No. 3 rear washer hose connector | 85349-89122 |
| 85349J | No. 4 rear washer hose connector | 85349-89122 · 85355-20200 |
| 85372W | No. 5 rear washer hose (from connector to connector) | 90099-33592 · 90099-59088 |
| 85373R | Rear washer hose (from connector to nozzle) | 85374-32010 |
