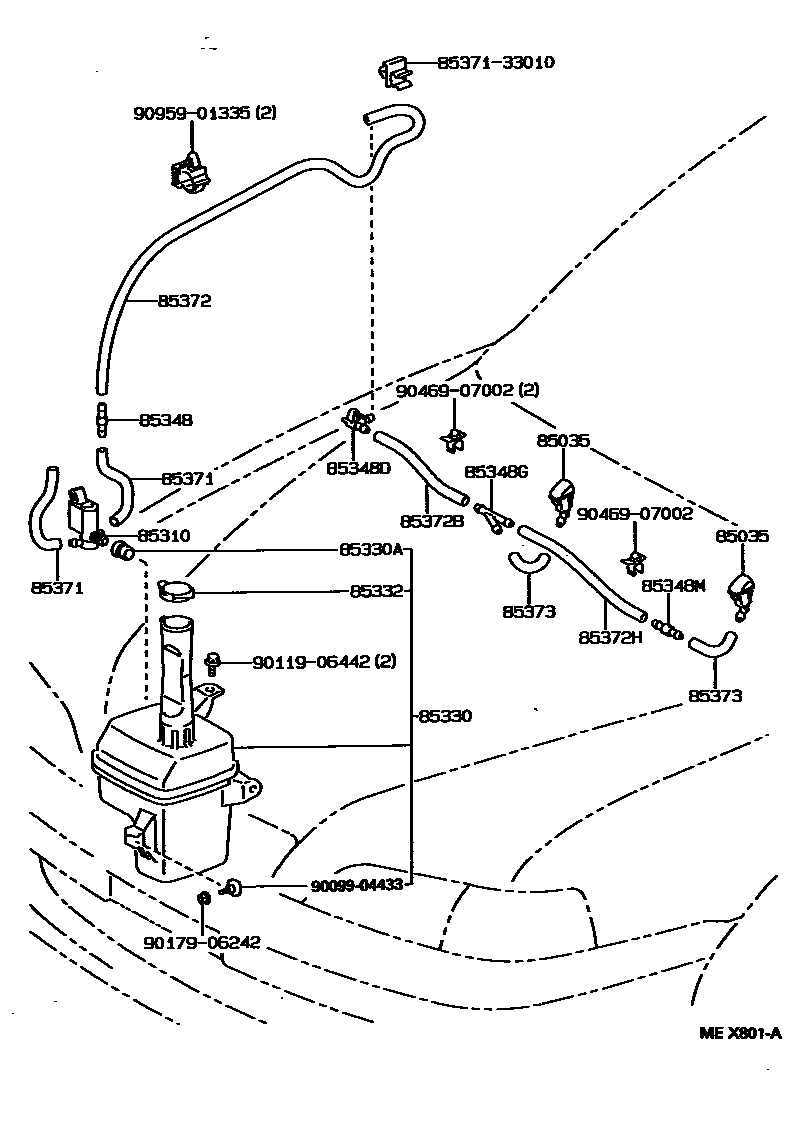

Toyota CAMRY 挡风玻璃清洗器 — Figure 8503
Toyota CAMRY EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85385-32030 |
| 85310 | Windshield washer motor and pump assembly | 85310-20210 · 85330-12280 |
| 85330 | Windshield washer fluid tank assembly | 85315-32070 · 85315-32080 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85316-33120 |
| 85348 | Windshield washer hose connector No. 1 | 85349-89122 |
| 85348D | No. 1 windshield washer elbow joint | 85377-32220 |
| 85348G | Windshield washer hose connector No. 2 | 85348-12250 |
| 85348M | No. 3 windshield washer hose connector | 85349-89122 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90099-59123 |
