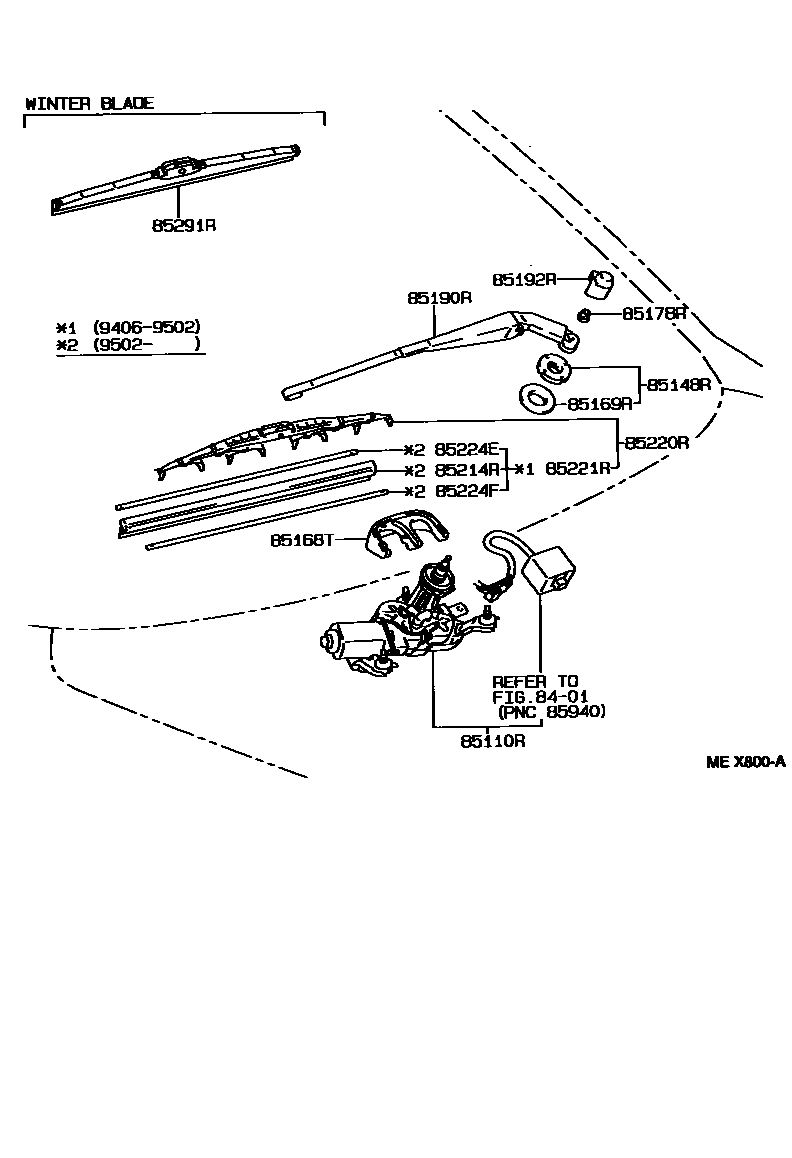

Toyota CAMRY 后刮水器 — Figure 8502
Toyota CAMRY EPC diagram 8502, 后刮水器, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110R | Rear wiper motor assembly | 85130-32300 · 85130-32310 |
| 85148R | Rear wiper link pivot nut with gasket seal | 85133-12770 |
| 85169R | No. 1 rear wiper link pivot washer | 90210-28002 |
| 85178R | Nut (for securing rear wiper arm) | 90179-06158 |
| 85190R | Rear wiper arm assembly | 85241-32030 · 85241-32040 |
| 85192R | Rear wiper arm cover | 85244-12010 |
| 85214R | Rear wiper rubber strip | 85214-20290 · 85214-20420 · 85214-22360 · 85214-32080 |
| 85220R | Rear wiper blade assembly | 85242-20090 · 85242-32020 · 85242-32030 · 85242-32040 |
| 85221R | Rear wiper blade | 85243-20020 · 85243-22030 |
| 85224E | No. 1 rear wiper rubber strip back plate | 85224-1G010 · 85224-20360 · 85224-30380 · 85224-60050 |
| 85224F | No. 2 rear wiper rubber strip back plate | 85224-1G010 · 85224-20360 · 85224-30380 · 85224-60050 |
| 85291R | Rear wiper blade for winter | 85291-60020 |
