Toyota CAMRY 挡风玻璃刮水器 — Figure 8501

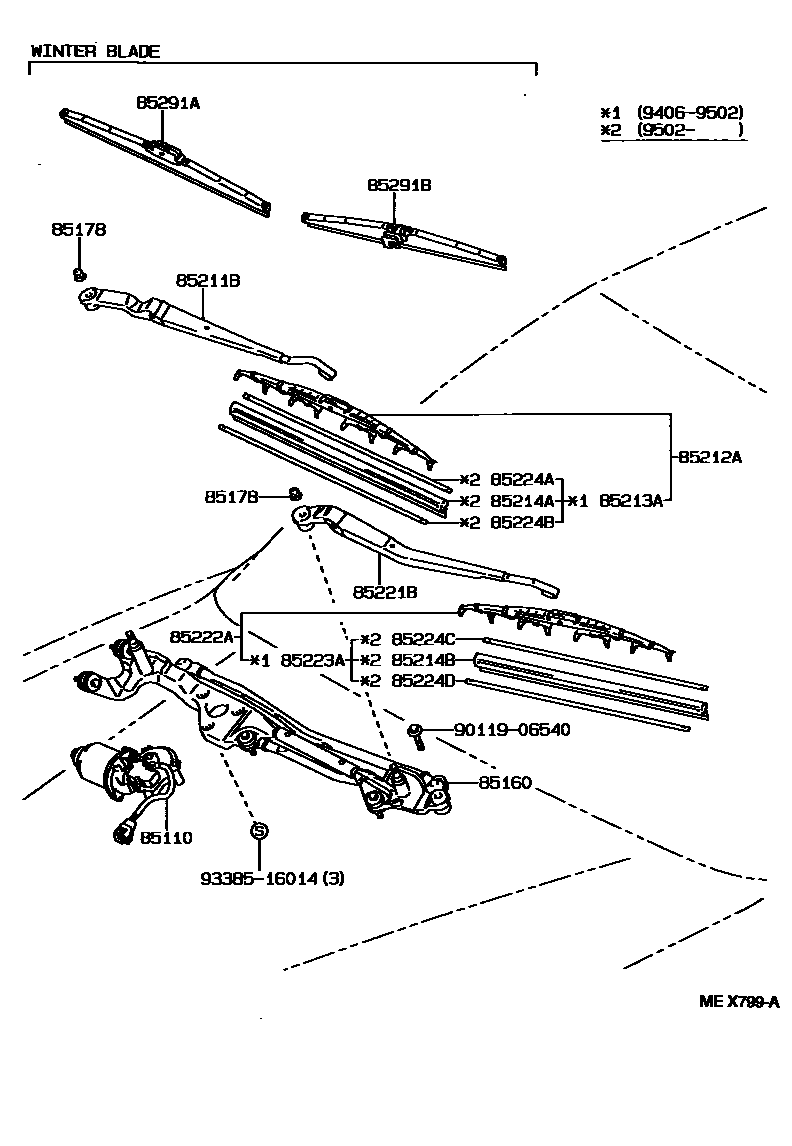

Toyota CAMRY EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-32320 · 85110-32330 · 85110-32350 · 85110-32360 · 85110-32370 |
| 85160 | Windshield wiper connecting rod assembly | 85150-32340 · 85150-32390 · 85150-32391 · 85150-32400 · 85150-32401 · 85150-32410 · 85150-32420 · 85150-32430 |
| 85178 | Nut (for securing front wiper arm) | 90176-08040 |
| 85211B | Right front wiper arm | 85211-32260 · 85211-32270 · 85211-32271 |
| 85212A | Right front wiper blade | 85212-20350 · 85212-20410 · 85212-32241 |
| 85213A | Right wiper blade rubber strip | 85213-20310 |
| 85214A | Right wiper rubber strip | 85214-20280 · 85214-33060 |
| 85214B | Left wiper rubber strip | 85214-35040 · 85214-60020 |
| 85221B | Left front wiper arm | 85221-32130 · 85221-32140 |
| 85222A | Left front wiper blade | 85222-22750 · 85222-3H060 · 85222-3H080 |
| 85223A | Left front wiper blade rubber strip | 85223-33040 |
| 85224A | No. 1 wiper rubber strip back plate | 85224-20280 · 85224-33050 |
| 85224B | No. 2 wiper rubber strip back plate | 85224-20280 · 85224-33050 |
| 85224C | No. 3 wiper rubber strip back plate | 85224-20300 · 85224-35040 |
| 85224D | No. 4 wiper rubber strip back plate | 85224-20300 · 85224-35040 |
| 85291A | Right front wiper blade for winter use | 85291-22050 |
| 85291B | Left front wiper blade for winter use | 85291-30030 |
