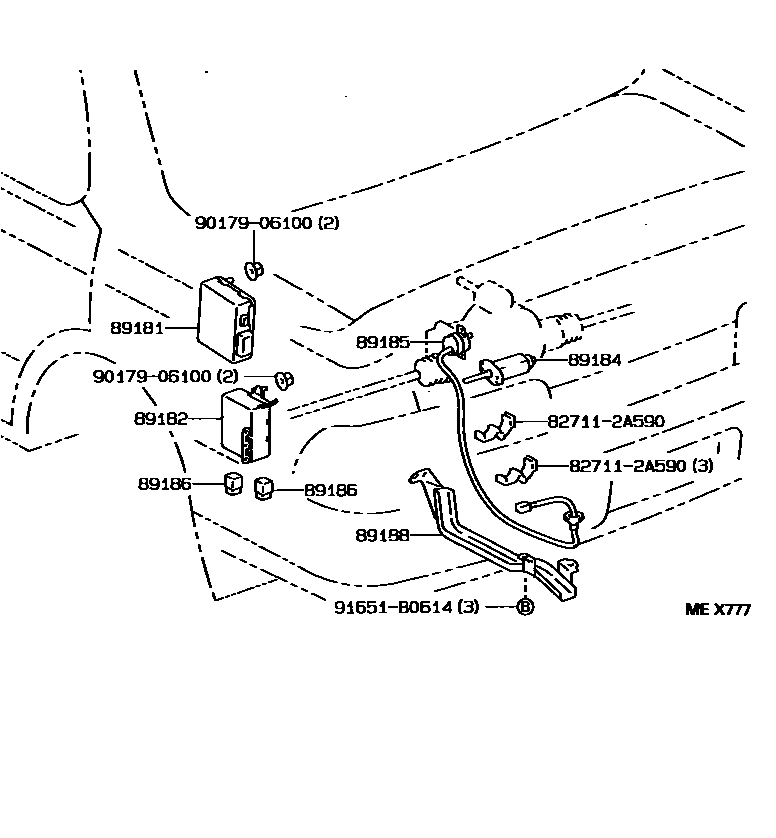

Toyota CAMRY 转向控制系统 — Figure 8422
Toyota CAMRY EPC diagram 8422, 转向控制系统, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89181 | Steering control ECU | 89181-32020 |
| 89182 | Steering control motor driver | 89182-32020 |
| 89184 | No. 2 steering control motor | 89184-32020 |
| 89185 | steering control sensor | 89185-32020 |
| 89186 | steering control relay | 88630-50030 |
| 89188 | steering control sensor conduit | 89188-32020 |
