Toyota CAMRY 遥控门锁 — Figure 8420

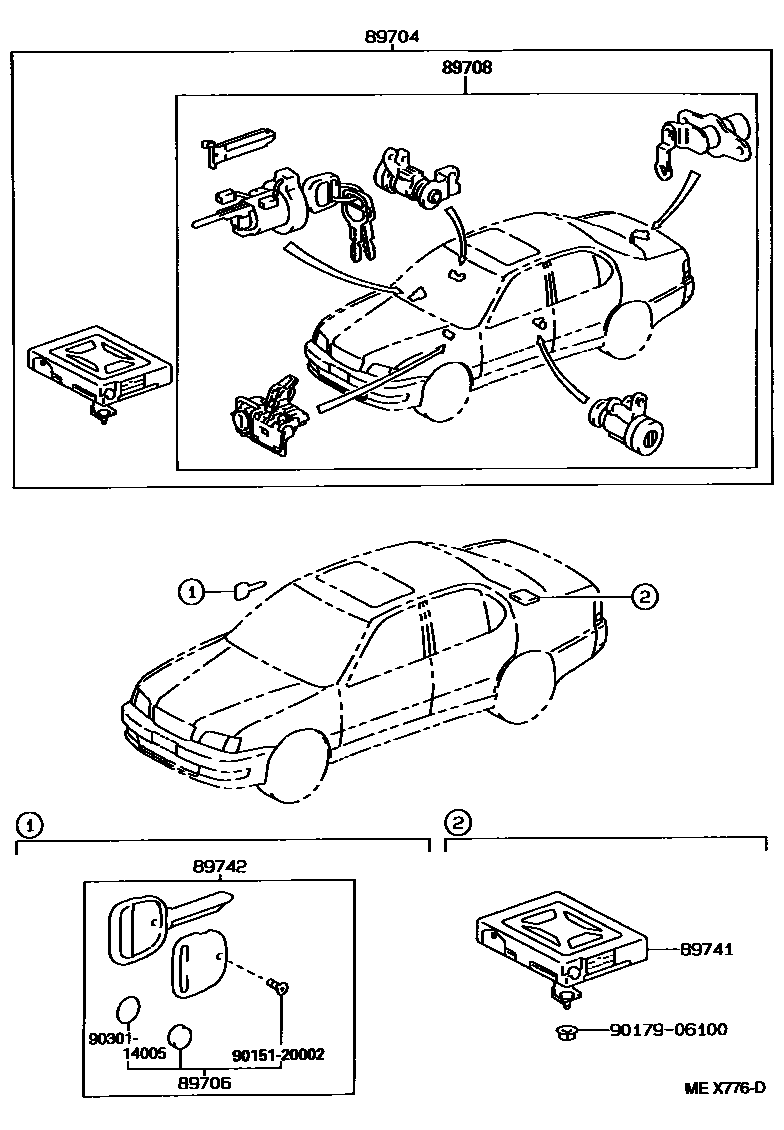

Toyota CAMRY EPC diagram 8420, 遥控门锁, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89704 | Remote door lock control components | 89704-32140 · 89704-32150 |
| 89706 | Transmitter battery pack | 89706-50010 |
| 89708 | Remote control door lock cylinder assembly | 89708-32080 · 89708-32090 |
| 89741 | door control receiver | 89741-32040 |
| 89742 | remote key | 89742-26050 · 89742-32180 |
