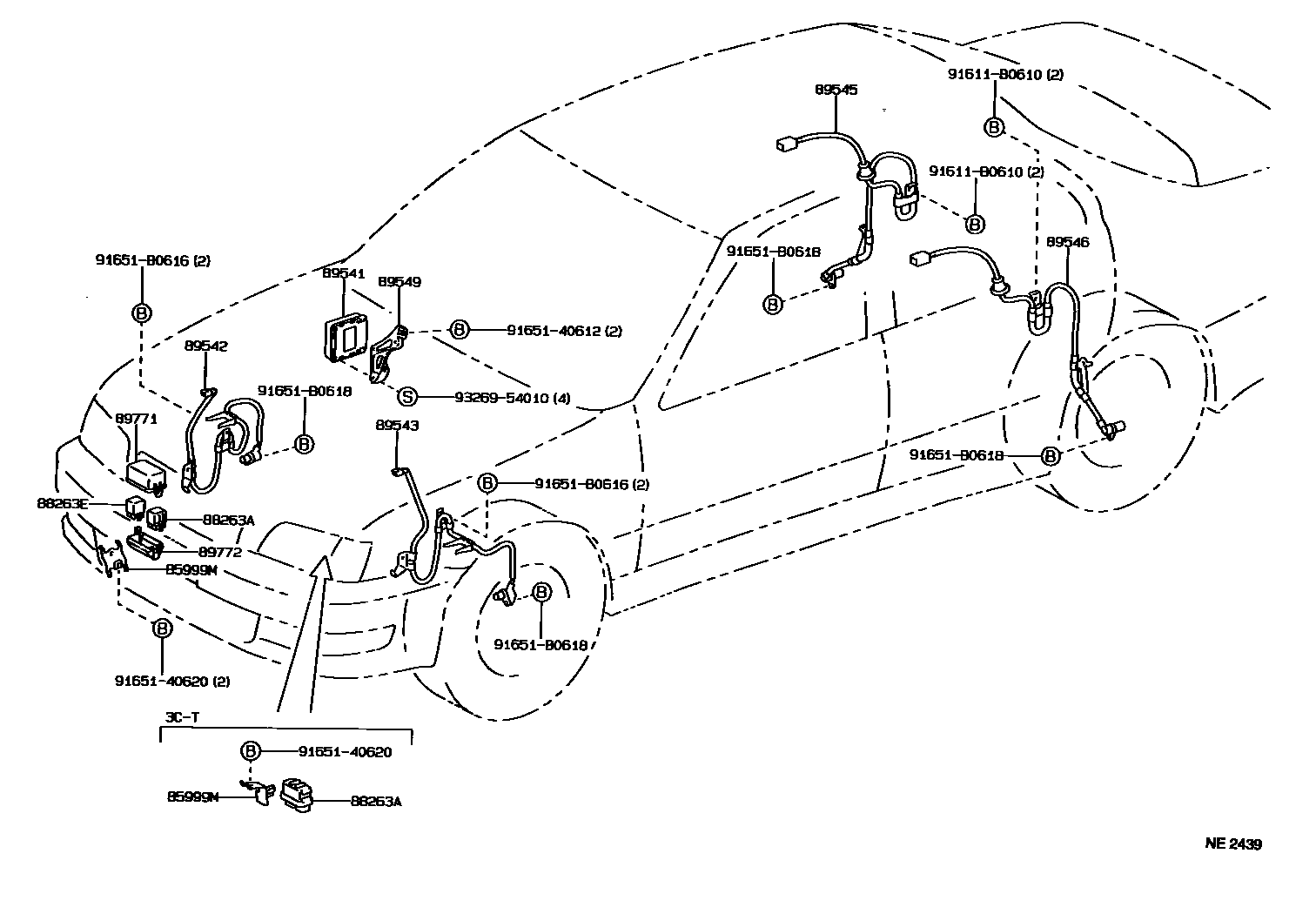

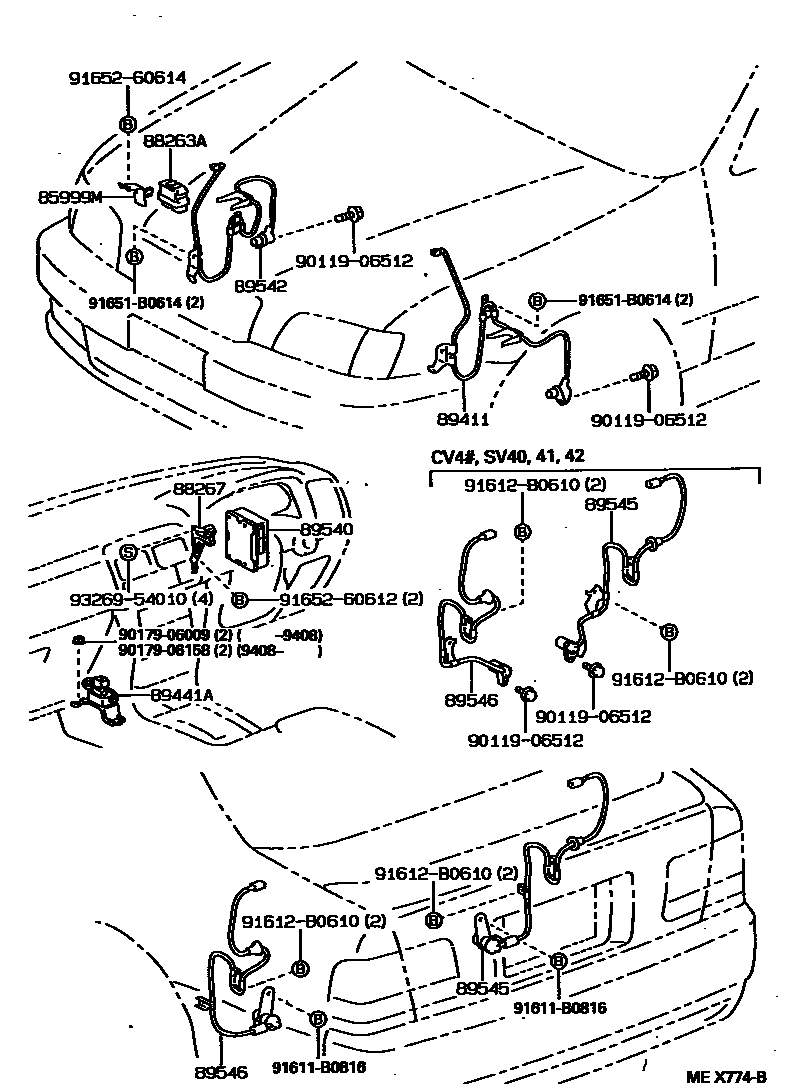

Toyota CAMRY ABS 和 VSC — Figure 8414
Toyota CAMRY EPC diagram 8414, ABS 和 VSC, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85999M | Relay bracket | 85999-32260 · 85999-32270 |
| 88263A | Anti-skid control relay | 88263-14110 · 88263-32060 |
| 88263E | No. 2 anti-skid control relay | 88263-24030 |
| 88267 | No. 1 anti-skid control ECU bracket | 88267-32110 |
| 89411 | Speed sensor | 89543-32021 |
| 89441A | deceleration sensor | 89440-32030 |
| 89540 | Anti-skid control ECU assembly | 89541-32080 · 89541-32090 |
| 89541 | Anti-skid control ECU | 89541-32100 · 89541-32110 · 89541-32120 |
| 89542 | Right front wheel speed sensor | 89542-32021 · 89542-32030 |
| 89543 | Left front wheel speed sensor | 89543-32030 |
| 89545 | Right rear wheel speed sensor | 89545-20150 · 89545-32030 · 89545-32040 · 89545-33020 |
| 89546 | Left rear wheel speed sensor | 89546-20150 · 89546-32030 · 89546-32040 · 89546-33020 |
| 89549 | Anti-slip control ECU bracket | 89549-32030 |
| 89771 | ABS relay box upper cover | 89771-12010 |
| 89772 | ABS relay box lower cover | 89772-12010 |
