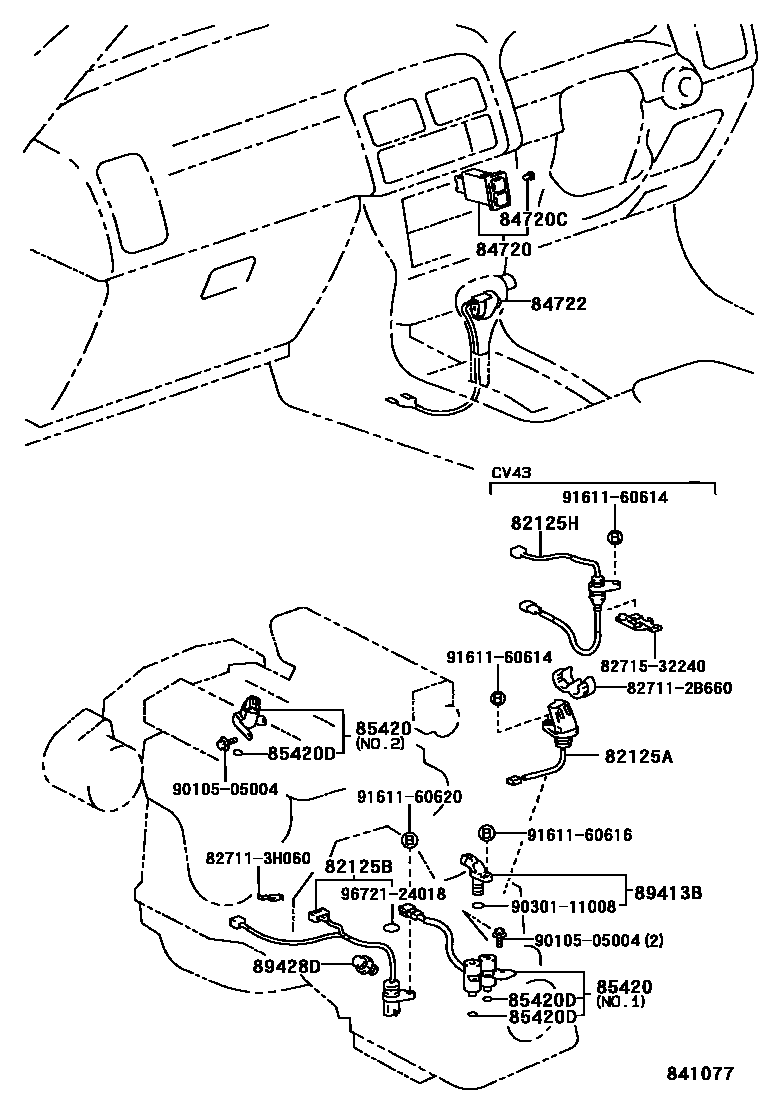

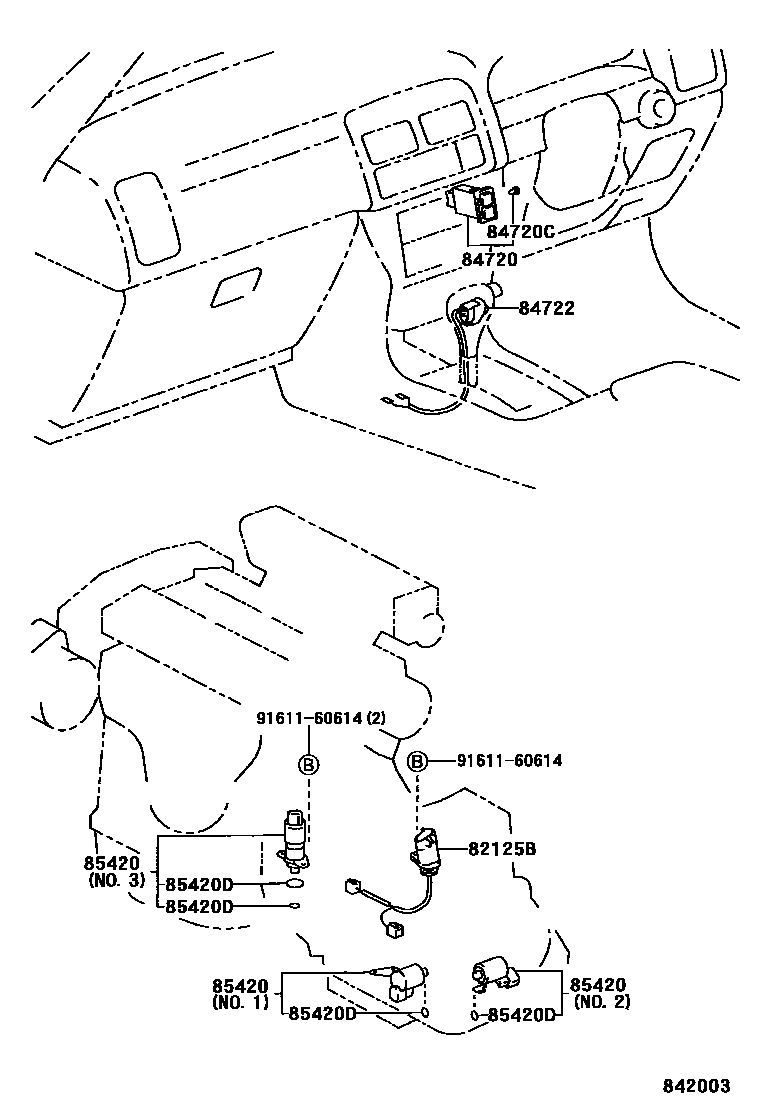

Toyota CAMRY 超速档和电子控制变速器 — Figure 8410
Toyota CAMRY EPC diagram 8410, 超速档和电子控制变速器, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82125A | Transmission wiring harness | 82125-20210 |
| 82125B | Transmission wiring harness | 82125-20150 · 82125-32050 |
| 82125H | Transmission wiring harness (for four-wheel drive control) | 82125-32060 |
| 84720 | Mode selection switch assembly | 84720-32070 · 84720-32080 |
| 84720C | Light bulb (for mode selector switch) | 84999-20110 · 90010-09002 |
| 85420 | Transmission solenoid valve assembly | 85420-20110 · 85420-32021 · 85420-32102 · 85420-32111 · 85420-32120 · 85420-32140 |
| 85420B | Transmission solenoid valve assembly | 85420-20100 |
| 85420D | O-ring (for transmission solenoid valve) | 90301-06004 · 90301-06005 · 96721-19017 |
| 89413B | Transmission speed sensor | 89413-32010 |
| 89428D | No. 2 temperature switch | 89428-12140 |
