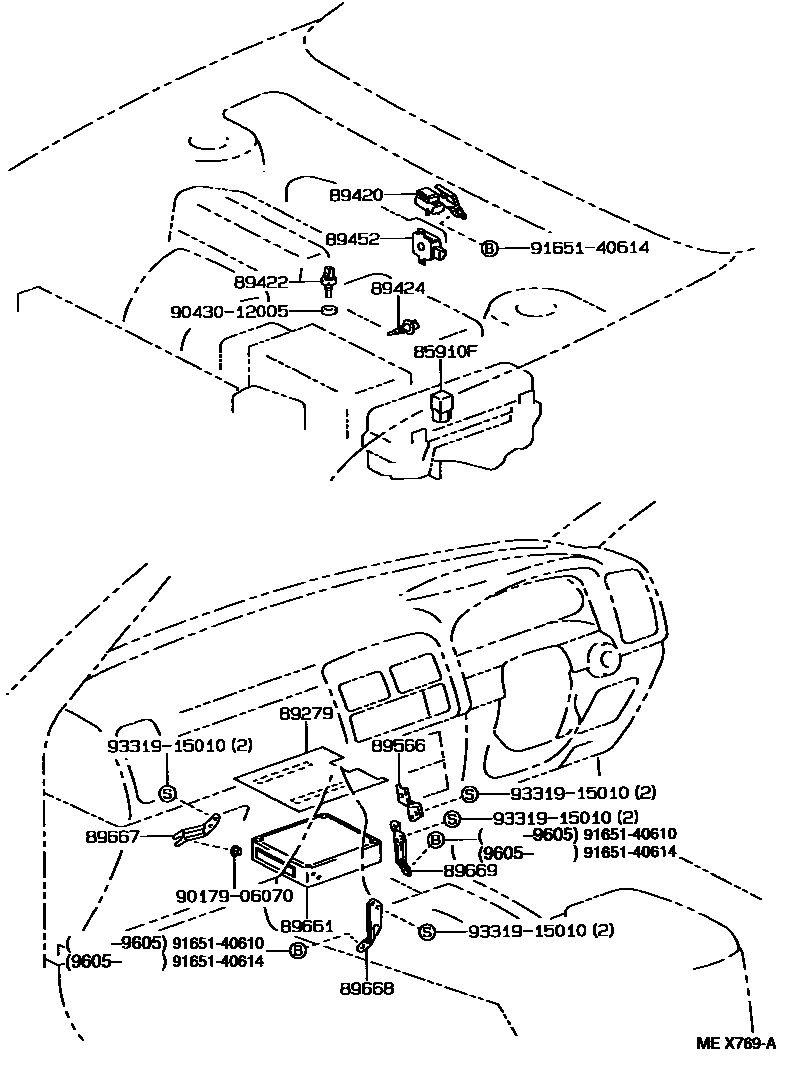

Toyota CAMRY 电子燃油喷射系统 — Figure 8404
Toyota CAMRY EPC diagram 8404, 电子燃油喷射系统, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910F | ECU relay (for EFI) | 90987-02009 |
| 89279 | Engine control ECU cover | 89279-32170 |
| 89420 | Vacuum sensor assembly | 89420-32070 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-20010 · 89422-35010 |
| 89424 | Intake air temperature sensor (for E.F.I.) | 89424-12010 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-10010 · 89452-20130 · 89452-22090 · 89452-33030 |
| 89566 | Fuel injection ECU bracket | 89566-32050 |
| 89661 | Engine control ECU | 89661-32820 · 89661-32830 · 89661-32840 · 89661-32850 · 89661-32860 · 89661-32870 · 89661-32880 · 89661-32881 · 89661-32890 · 89661-3H010 · 89661-3H020 · 89661-3H030 |
| 89667 | Engine control ECU bracket | 89667-32030 · 89667-32050 |
| 89668 | No. 2 engine control ECU bracket | 89668-32040 · 89668-32050 |
| 89669 | No. 3 engine control ECU bracket | 89669-32050 |
