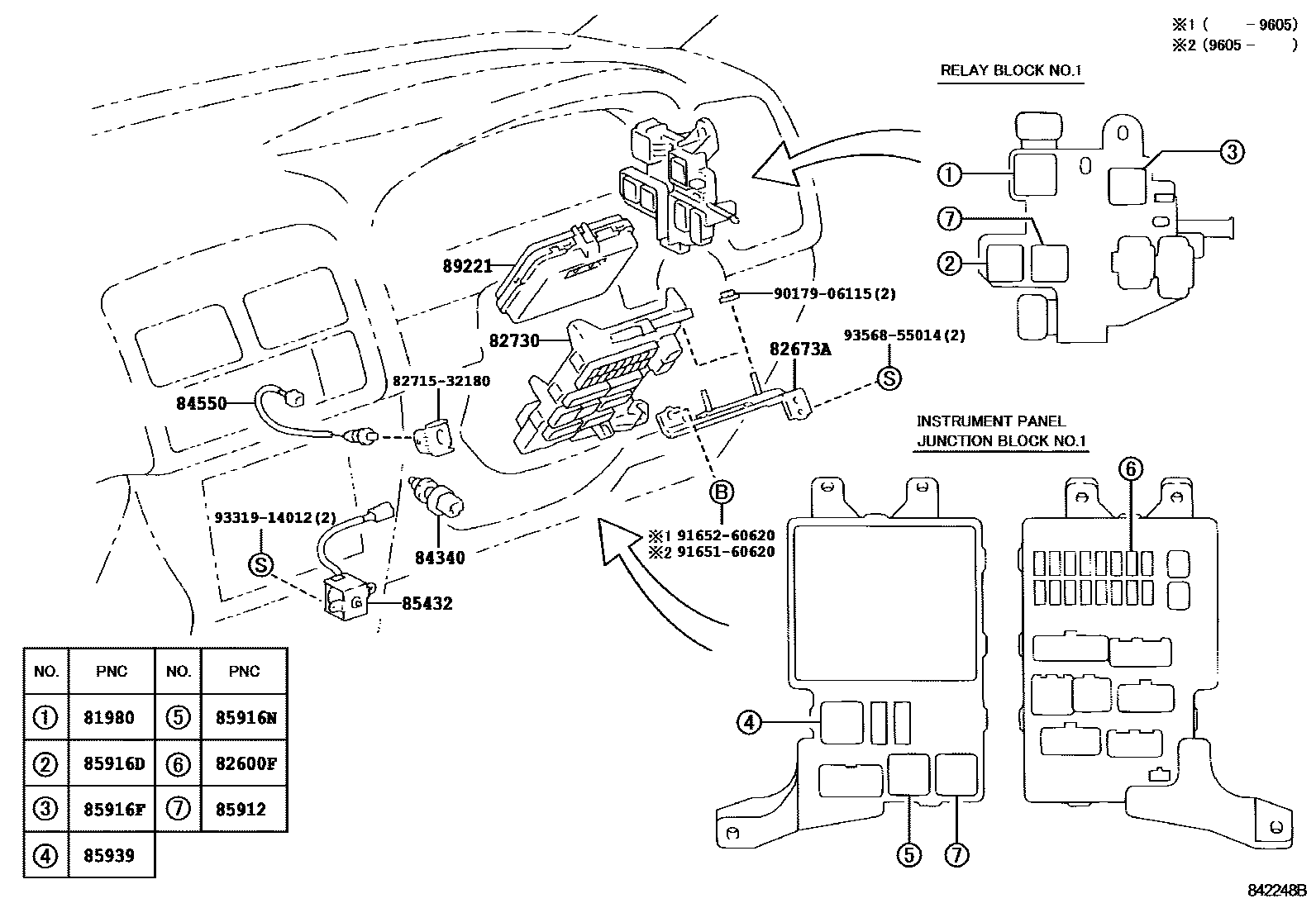

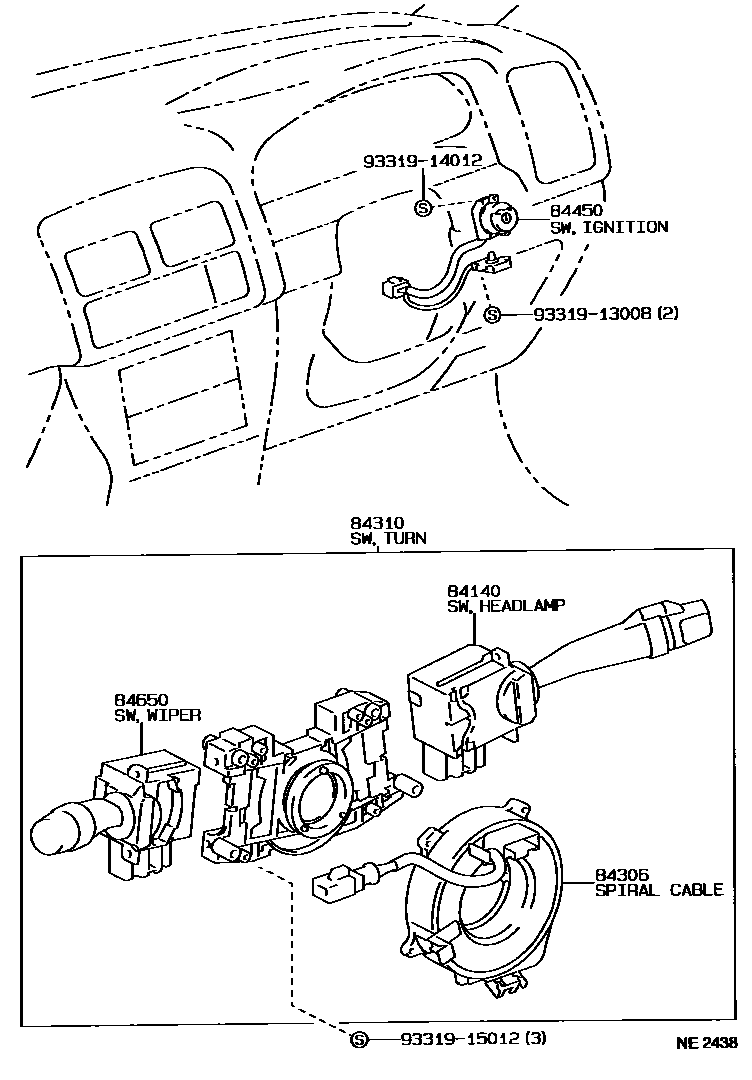

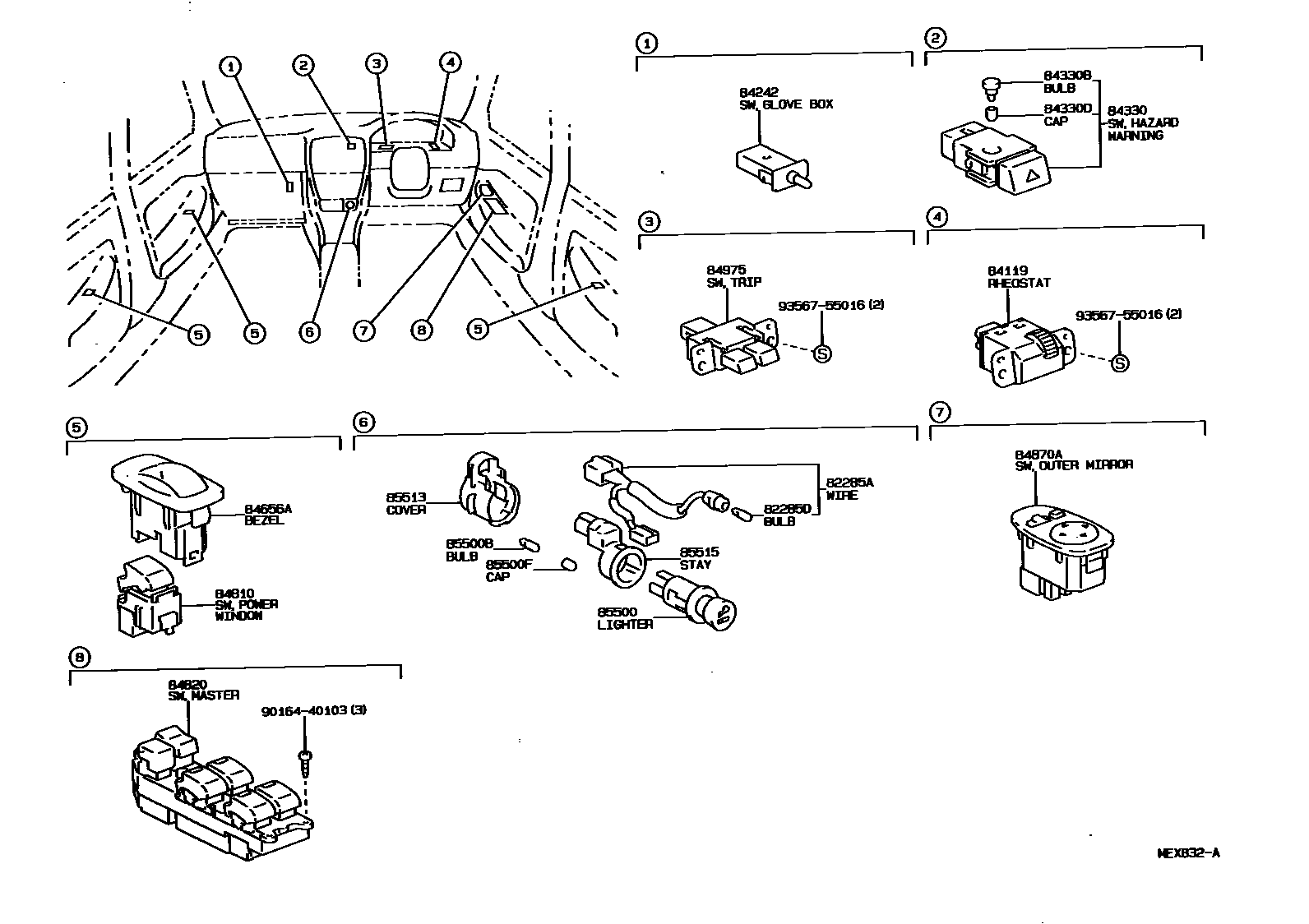

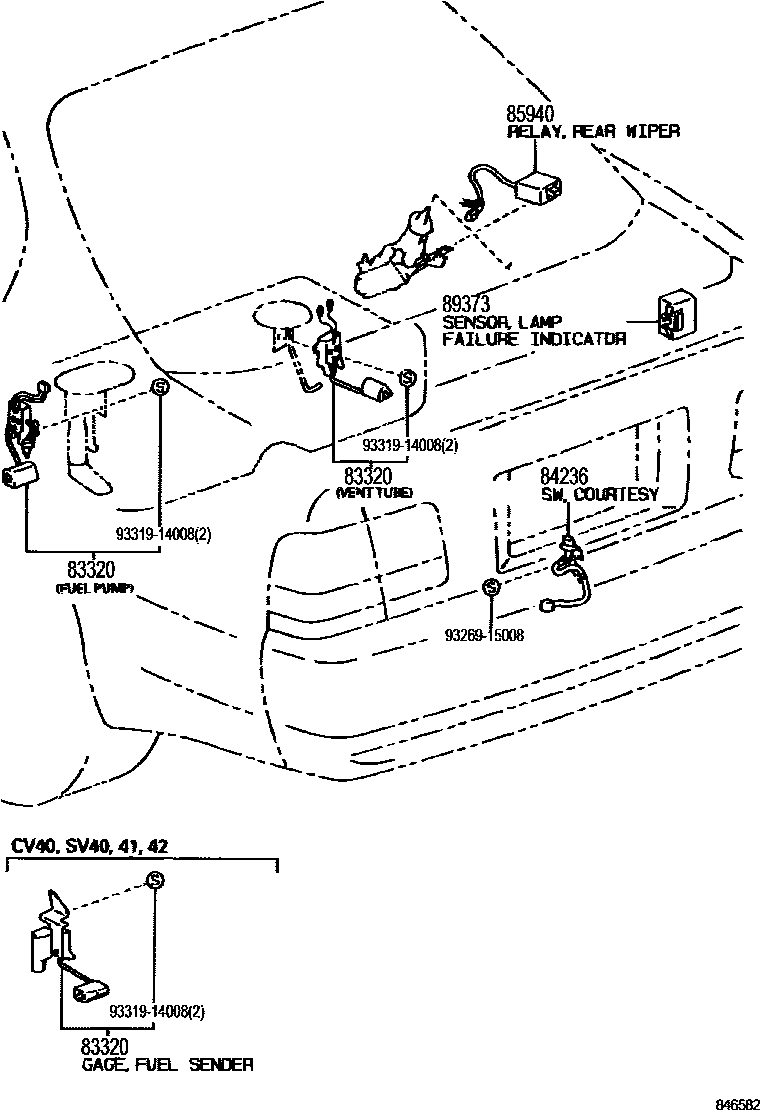

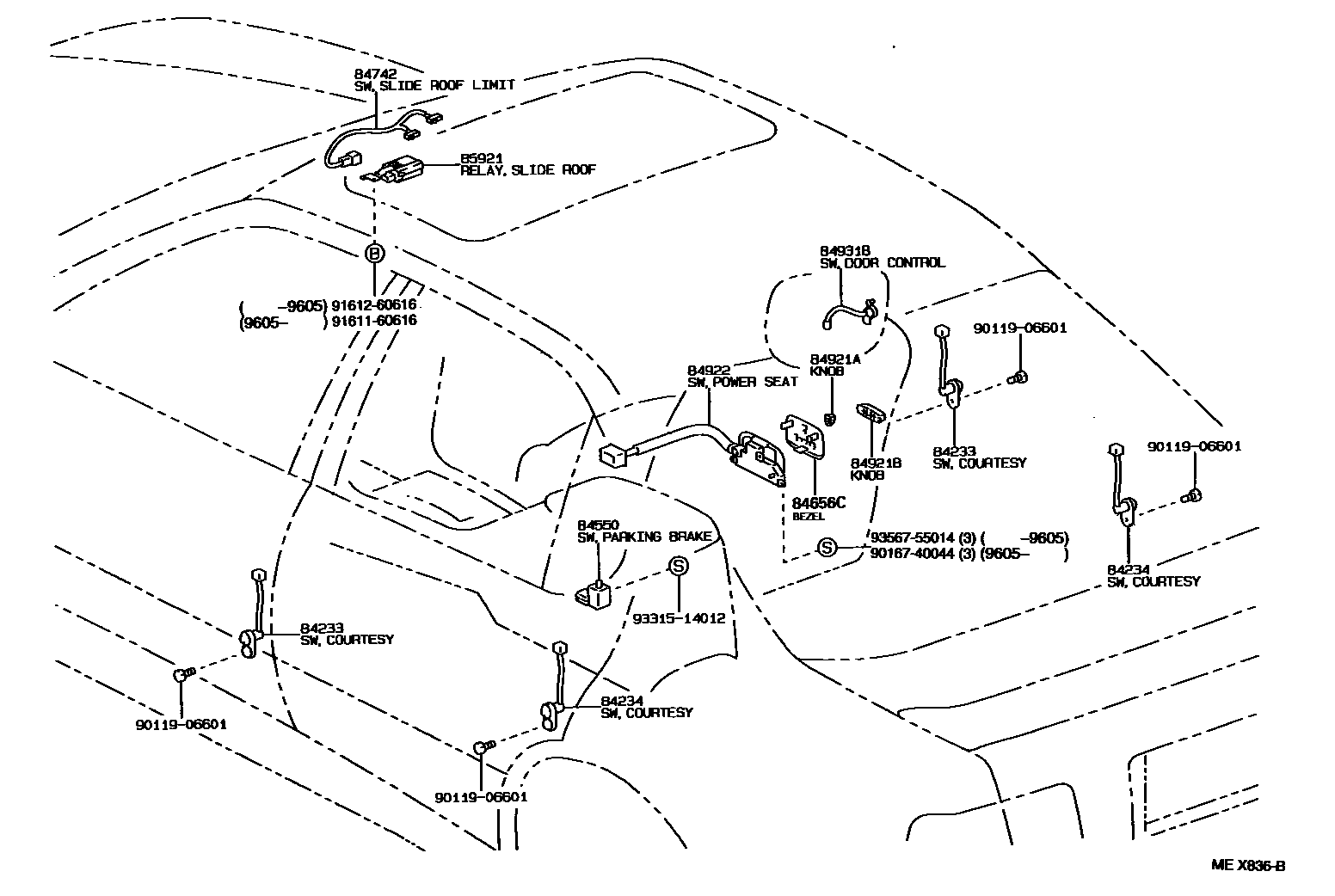

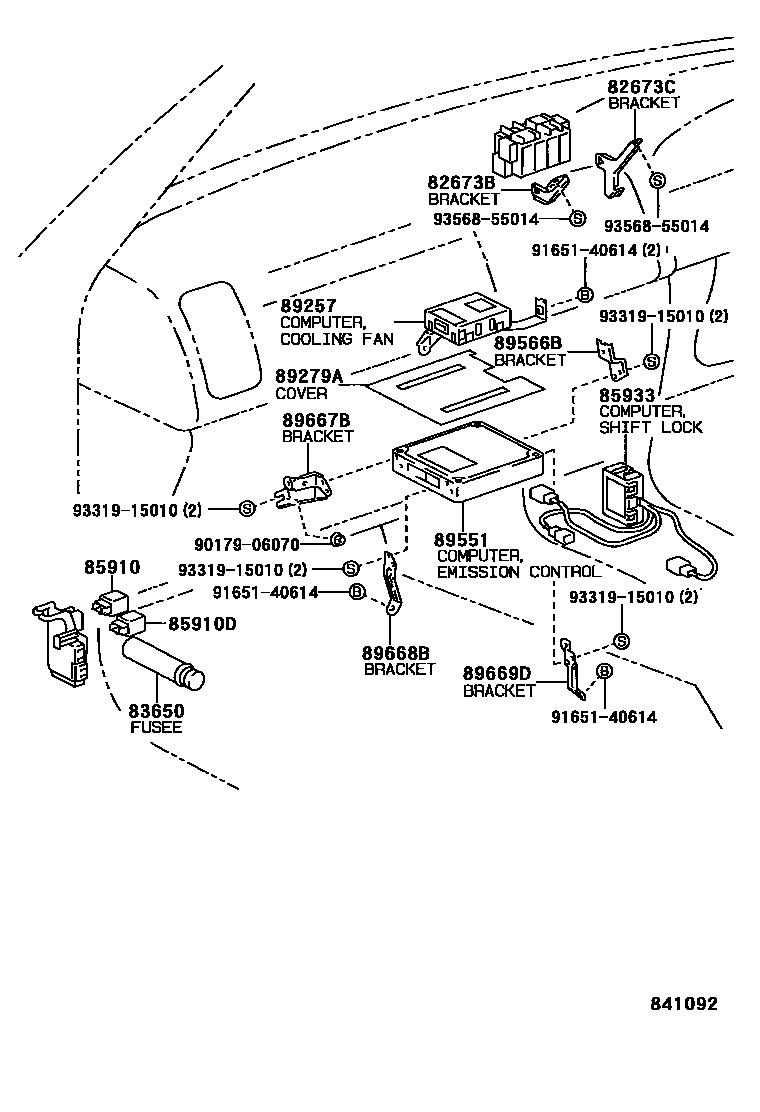

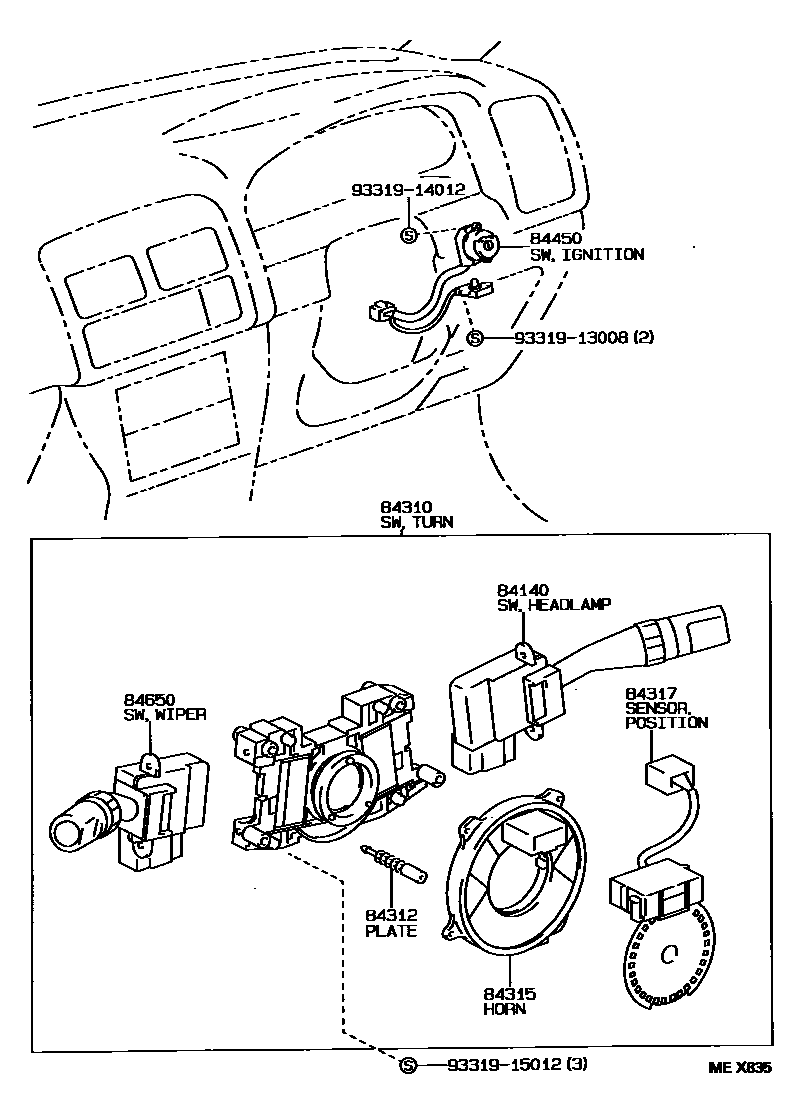

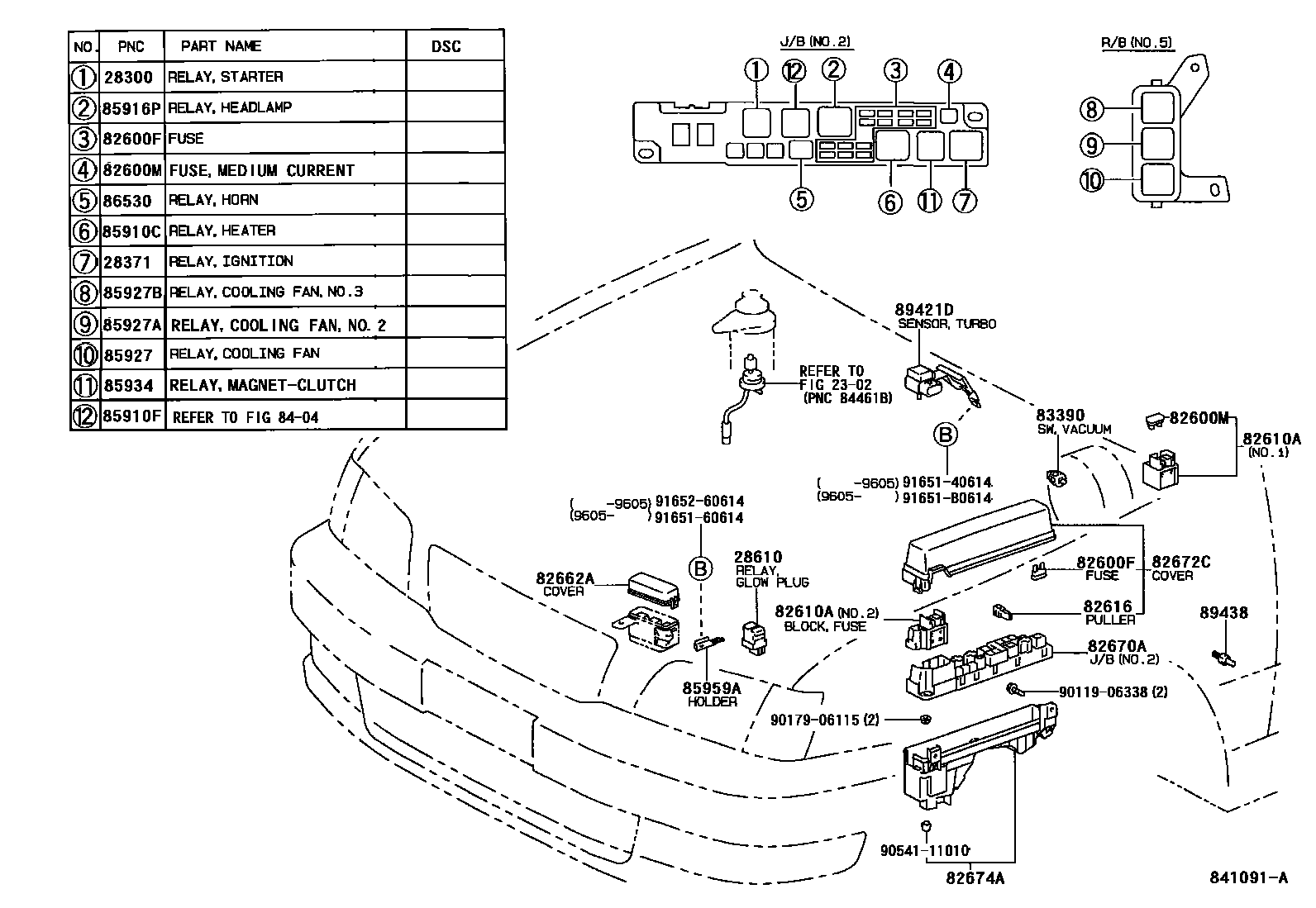

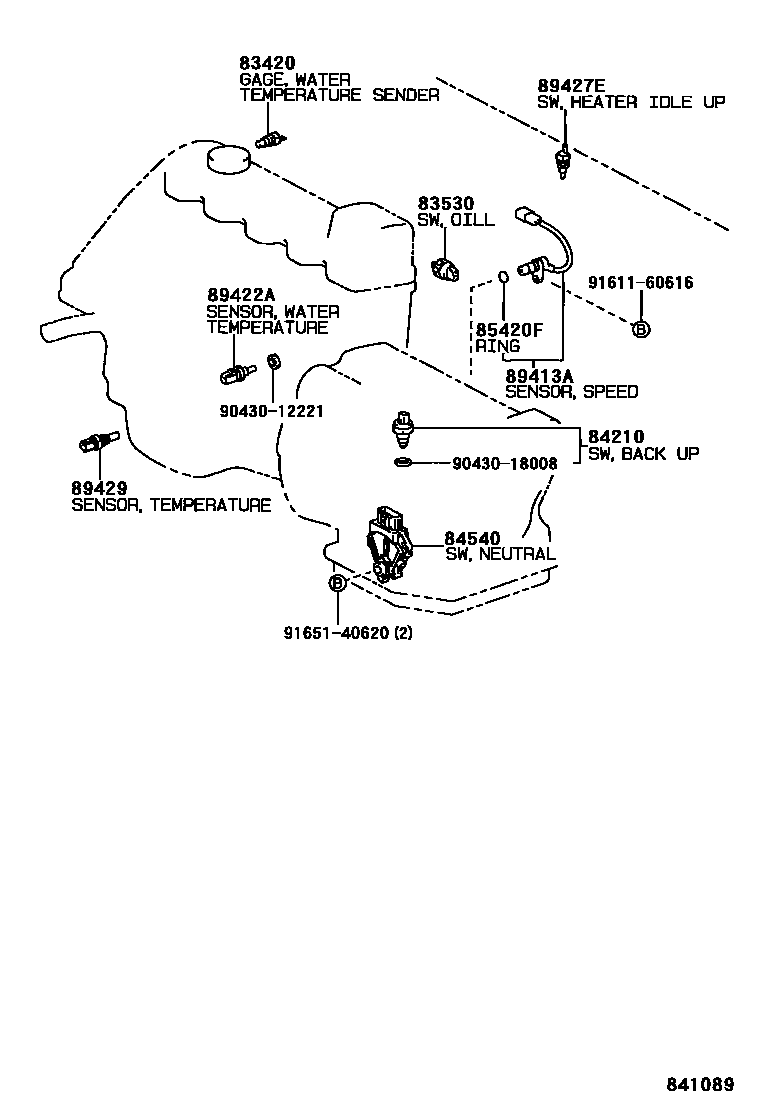

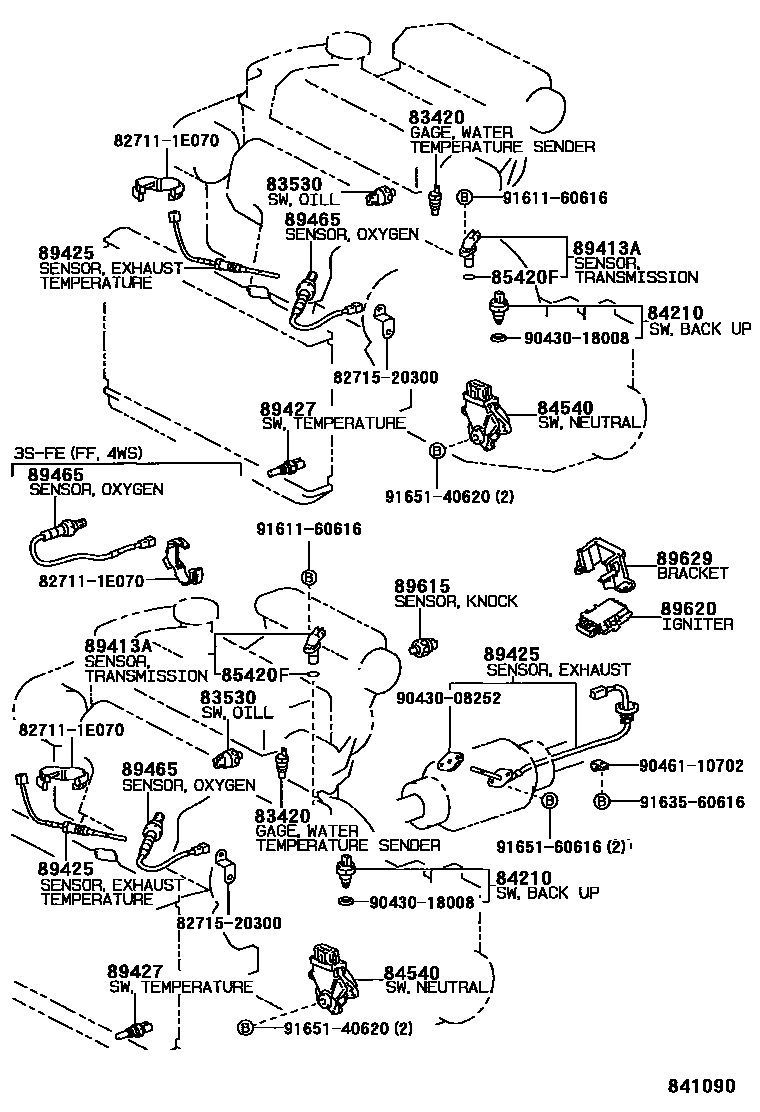

Toyota CAMRY 开关和继电器和ECU — Figure 8401
Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 10 images and 97 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-10020 |
| 28371 | No. 1 ignition relay | 85925-17010 · 90987-04002 |
| 28610 | Glow plug relay assembly | 28610-67010 |
| 81980 | Turn signal flasher relay assembly | 81980-12070 |
| 82285A | lighting harness | 82285-32010 |
| 82285D | lighting bulb wiring harness | 90981-11014 |
| 82600F | Spare fuse | 90982-09007 · 90982-09008 · 90982-09009 · 90982-09010 · 90982-09011 · 90982-09013 |
| 82600M | medium current fuse | 90982-10001 · 90982-10002 |
| 82610A | Fuse box assembly | 82610-32040 · 82613-32020 |
| 82616 | fuse puller | 82616-20010 |
| 82662A | No. 1 relay box upper cover | 82662-32030 |
| 82670A | No. 1 junction box assembly | 82720-32010 · 82720-32011 · 82720-32020 · 82720-32030 |
| 82672C | Junction box cover | 82672-32420 · 82672-32421 · 82672-32430 · 82672-32431 |
| 82673A | Junction box bracket | 82673-32040 |
| 82673B | Junction box bracket | 82673-32050 |
| 82673C | Junction box bracket | 82673-32060 |
| 82674A | Junction box lower cover | 82674-32020 |
| 82730 | Instrument panel junction box assembly | 82732-32010 |
| 83320 | Fuel gauge sensor assembly | 83320-80246 · 83320-80247 · 83320-80253 · 83320-80305 · 83320-80306 · 83320-80324 · 83320-80325 |
| 83390 | Vacuum warning switch assembly | 83390-32100 |
| 83420 | Water temperature sensor assembly | 83420-16040 · 83420-20040 · 83420-AA010 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-30090 · 83530-30100 · 83530-60010 · 83530-60020 |
| 83650 | fuse | 90986-01005 |
| 84119 | Light control rheostat | 84119-32120 |
| 84140 | Headlight dimmer switch assembly | 84140-20510 · 84140-20540 · 84140-20630 · 84140-32180 · 84140-32190 · 84140-32210 |
| 84210 | Reversing light switch assembly | 84210-12040 |
| 84233 | Door control light switch assembly (for front door) | 84231-32050 |
| 84234 | Door control light switch assembly (for rear door) | 84231-32050 |
| 84236 | Door control light switch assembly (for trunk) | 84231-20200 |
| 84242 | Glove box light switch | 84242-20030 |
| 84306 | Spiral cable sub-assembly | 84306-20060 · 84306-20080 · 84306-35010 · 84306-35011 |
| 84310 | Turn signal switch assembly | 84310-2L120 · 84310-2L250 · 84310-2L260 · 84310-3H560 · 84310-3H570 · 84310-3H580 · 84310-3H590 · 84310-3H600 · 84310-3H610 · 84310-3H620 · 84310-3H630 · 84310-3H640 |
| 84312 | Speaker contact piece | 84312-12050 · 84312-20070 |
| 84315 | Speaker contact slip ring | 84315-20190 |
| 84317 | steering position sensor | 84317-32020 |
| 84330 | Hazard warning signal switch assembly | 84332-30250 |
| 84330B | Hazard warning signal switch light bulb | 84999-10320 |
| 84330D | Hazard warning switch bulb cover | 84998-10320 |
| 84340 | brake light switch assembly | 84340-32050 |
| 84450 | Ignition or starter switch assembly | 84450-32080 |
| 84540 | Neutral start switch assembly | 84540-20200 · 84540-20220 |
| 84550 | Parking brake switch assembly | 84550-32060 · 84550-33010 |
| 84650 | Windshield wiper switch assembly | 84652-26500 · 84652-2D850 · 84652-2D860 · 84652-2G270 · 84652-2G390 · 84652-3H260 · 84652-3H270 · 84652-60790 |
| 84656A | switch box | 84656-32030 |
| 84742 | Sliding sunroof limit switch | 84742-32031 |
| 84810 | Electric window lift switch assembly | 84810-12080 |
| 84820 | Electric window lift main switch assembly | 84040-32010 · 84040-32020 · 84040-32030 · 84040-32040 · 84040-32050 · 84040-32060 |
| 84870A | Exterior rearview mirror switch assembly | 84870-32110 · 84870-32120 |
| 84922 | Front electric seat switch | 84922-32020 · 84922-33030 |
| 84931B | door control switch | 84931-32080 |
| 84975 | trip odometer switch | 84975-32010 |
| 85420F | O-ring (for transmission solenoid valve) | 90301-11008 |
| 85432 | Key interlock solenoid valve | 85432-32040 |
| 85500 | Cigarette lighter assembly | 85500-28050 |
| 85500B | Cigarette lighter bulb | 84999-10250 |
| 85500F | Cigarette lighter bulb cover | 84998-10420 |
| 85513 | Cigarette lighter cover | 85513-12020 |
| 85515 | Cigarette lighter frame bracket | 85515-33010 |
| 85910 | Circuit breaking relay assembly | 90987-02009 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04002 |
| 85910D | Relay (for heater idle speed boost) | 90987-02009 |
| 85912 | defogger relay | 90987-02009 |
| 85916D | fog light relay | 90987-02009 |
| 85916F | turn indicator relay | 90987-02009 |
| 85916N | Tail light relay | 90987-02009 |
| 85916P | headlight relay | 90987-02006 |
| 85921 | Sliding sunroof control relay | 85921-20100 |
| 85927 | cooling fan relay | 90987-03003 |
| 85927A | Cooling fan relay No. 2 | 90987-04003 |
| 85927B | Cooling fan relay No. 3 | 90987-02009 |
| 85933 | Shift lock control ECU | 85933-32040 · 85933-32050 |
| 85934 | Electromagnetic clutch relay | 90987-02009 |
| 85939 | Power window relay | 90987-02009 |
| 85940 | Windshield wiper relay assembly | 85940-32150 · 85940-32160 |
| 85959A | Relay mounting parts | 85959-32070 |
| 86530 | Speaker relay assembly | 86530-20070 |
| 89221 | Multi-channel network body ECU | 89221-32010 · 89221-32020 · 89221-32030 · 89221-32040 · 89221-32050 |
| 89257 | Cooling fan ECU | 89257-32030 |
| 89279A | ECU cover | 89279-32170 |
| 89373 | Malfunction indicator light sensor | 89373-12130 · 89373-12140 · 89373-12150 · 89373-12160 |
| 89413A | Transmission speed sensor | 89411-32050 · 89413-32010 |
| 89421D | turbo pressure sensor | 89420-20260 · 89420-32060 |
| 89422A | water temperature sensor | 89422-35010 |
| 89425 | Exhaust gas temperature sensor | 89425-20220 · 89425-39465 |
| 89427 | Temperature detection switch | 89428-33010 |
| 89427E | Temperature switch (for heater idle speed boost) | 89427-12110 · 89427-32030 |
| 89429 | oil temperature sensor | 89429-24020 · 89429-33010 |
| 89438 | Power steering oil pressure switch | 89438-33010 |
| 89465 | oxygen sensor | 89465-20270 · 89465-20280 |
| 89551 | Emission control ECU | 89551-32060 · 89551-32070 · 89551-32090 |
| 89566B | No. 4 engine control ECU bracket | 89566-32050 |
| 89615 | knock control sensor | 89615-20030 · 89615-33020 |
| 89620 | Ignition assembly | 89621-26010 |
| 89629 | Ignition bracket assembly | 89629-32050 |
| 89667B | No. 1 engine control ECU bracket | 89667-32030 · 89667-32040 |
| 89668B | No. 2 engine control ECU bracket | 89668-32040 |
| 89669D | No. 3 engine control ECU bracket | 89669-32050 · 89669-32060 |
