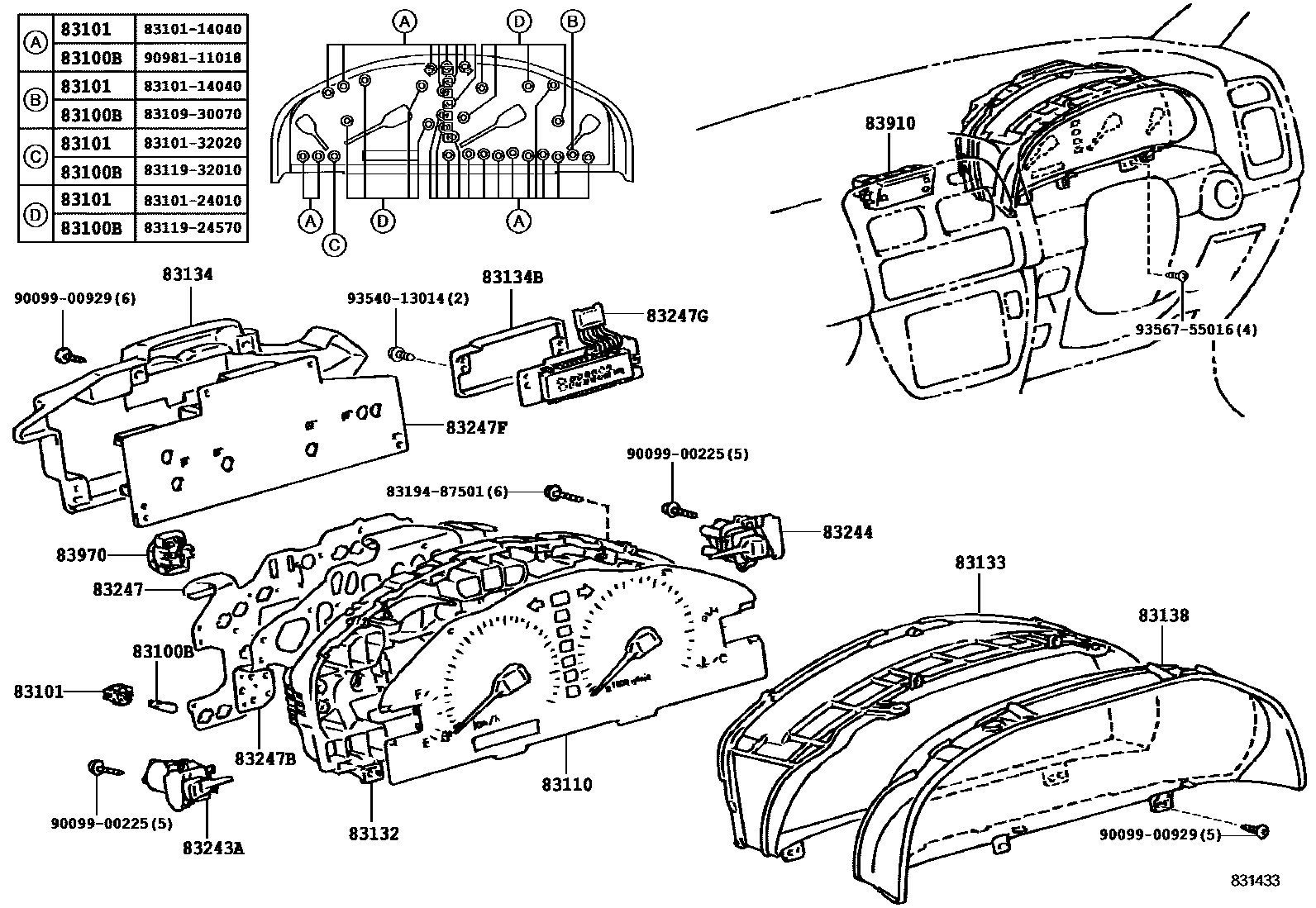

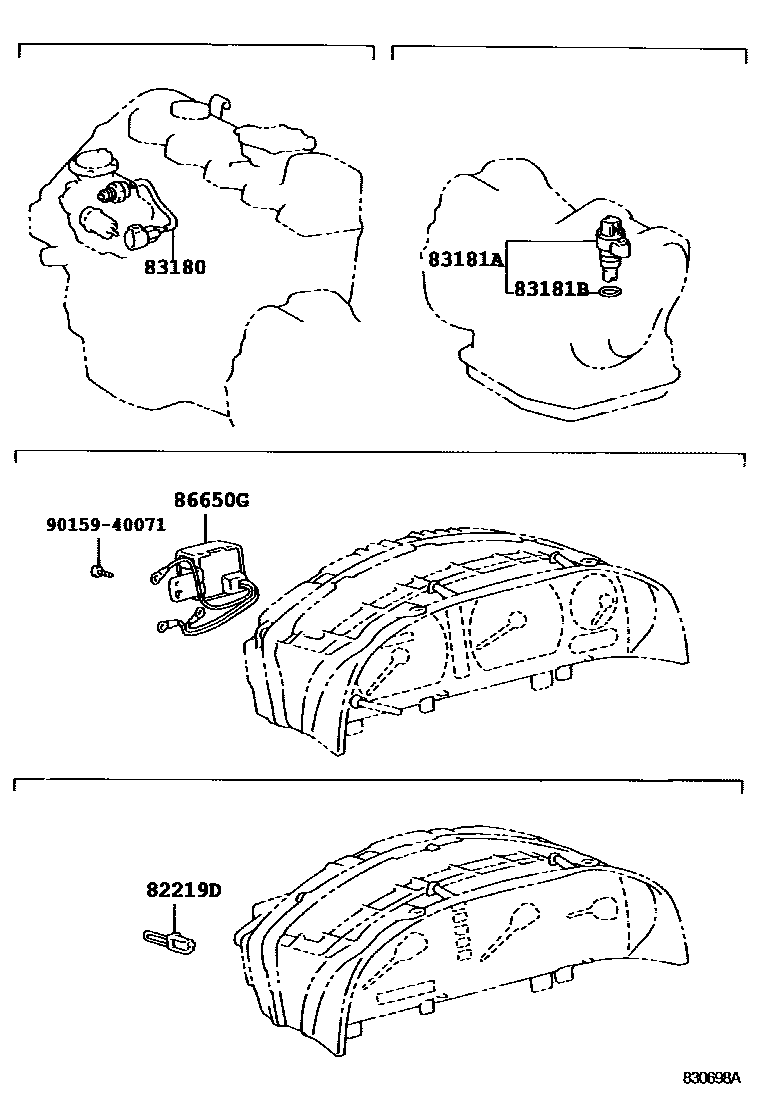

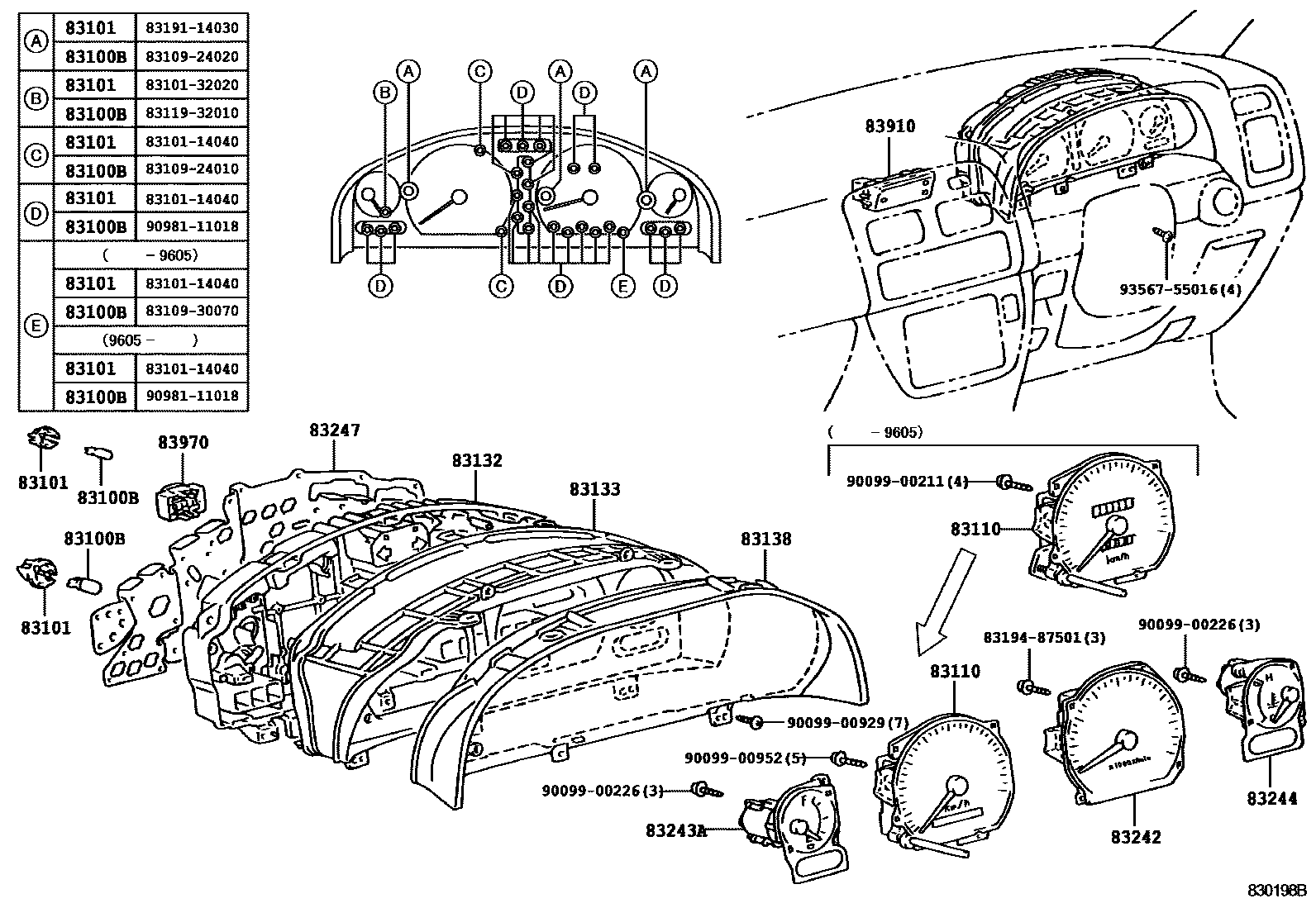

Toyota CAMRY 仪表 — Figure 8301
Toyota CAMRY EPC diagram 8301, 仪表, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82219D | sensor harness | 82219-24010 |
| 83100B | Combination instrument bulb No. 1 | 83109-24010 · 83109-24020 · 83109-30070 · 83119-24570 · 83119-32010 · 90981-11018 |
| 83101 | Combined instrument lamp holder sub-assembly | 83101-14030 · 83101-14040 · 83101-24010 · 83101-32020 |
| 83110 | Speedometer assembly | 83110-32690 · 83110-32700 · 83110-32701 · 83110-32702 · 83110-32710 · 83110-32711 · 83110-32712 · 83110-32720 · 83110-32721 · 83110-32722 · 83110-32730 · 83110-32731 |
| 83132 | Instrument cluster housing | 83132-33450 · 83132-3H410 · 83132-3H430 · 83132-3H440 · 83132-3H450 |
| 83133 | Combined instrument panel No. 1 | 83133-33130 · 83133-3H010 · 83133-3H030 |
| 83134 | Combination instrument cover No. 1 | 83134-33070 |
| 83134B | Combination instrument cover No. 2 | 83134-33090 |
| 83138 | speedometer glass | 83138-32230 · 83138-33110 |
| 83180 | Speed detector assembly | 83180-32020 |
| 83181A | speedometer sensor | 83181-12020 · 83181-12030 · 83181-12040 · 83181-12050 · 83181-32020 · 83181-32030 |
| 83181B | O-ring (for speedometer sensor) | 96711-24018 · 96711-24030 |
| 83242 | Engine tachometer assembly | 83242-3H350 · 83242-3H370 · 83242-3H390 · 83242-3H410 · 83242-3H440 · 83242-3H450 · 83242-3H460 · 83881-32582 · 83881-32592 · 83881-32602 |
| 83243A | Fuel gauge sub-assembly | 83243-33190 · 83243-3H350 · 83243-3H370 |
| 83244 | Water temperature meter sub-assembly | 83244-32810 · 83244-32830 · 83244-32850 · 83244-32870 · 83244-32880 · 83244-32890 · 83244-33250 · 83244-3H010 |
| 83247 | Instrument circuit board | 83247-33670 · 83247-3P010 · 83247-3P030 · 83247-3P050 · 83247-3P070 · 83247-3P080 · 83247-3P090 · 83247-3P100 · 83247-3P110 · 83247-3P120 · 83247-3P130 · 83247-3P140 · 83247-3P150 |
| 83247B | No. 2 instrument circuit board | 83247-33690 · 83247-33710 |
| 83247F | Instrument circuit board No. 1 (for ECU) | 83247-33730 · 83247-33750 |
| 83247G | No. 2 instrument circuit board (for ECU) | 83247-33770 |
| 83910 | clock assembly | 83910-20720 · 83910-32120 |
| 83970 | Reversing warning buzzer assembly | 83970-20010 |
| 86650G | Buzzer assembly | 86650-12030 |
