Toyota CAMRY 车内灯 — Figure 8121

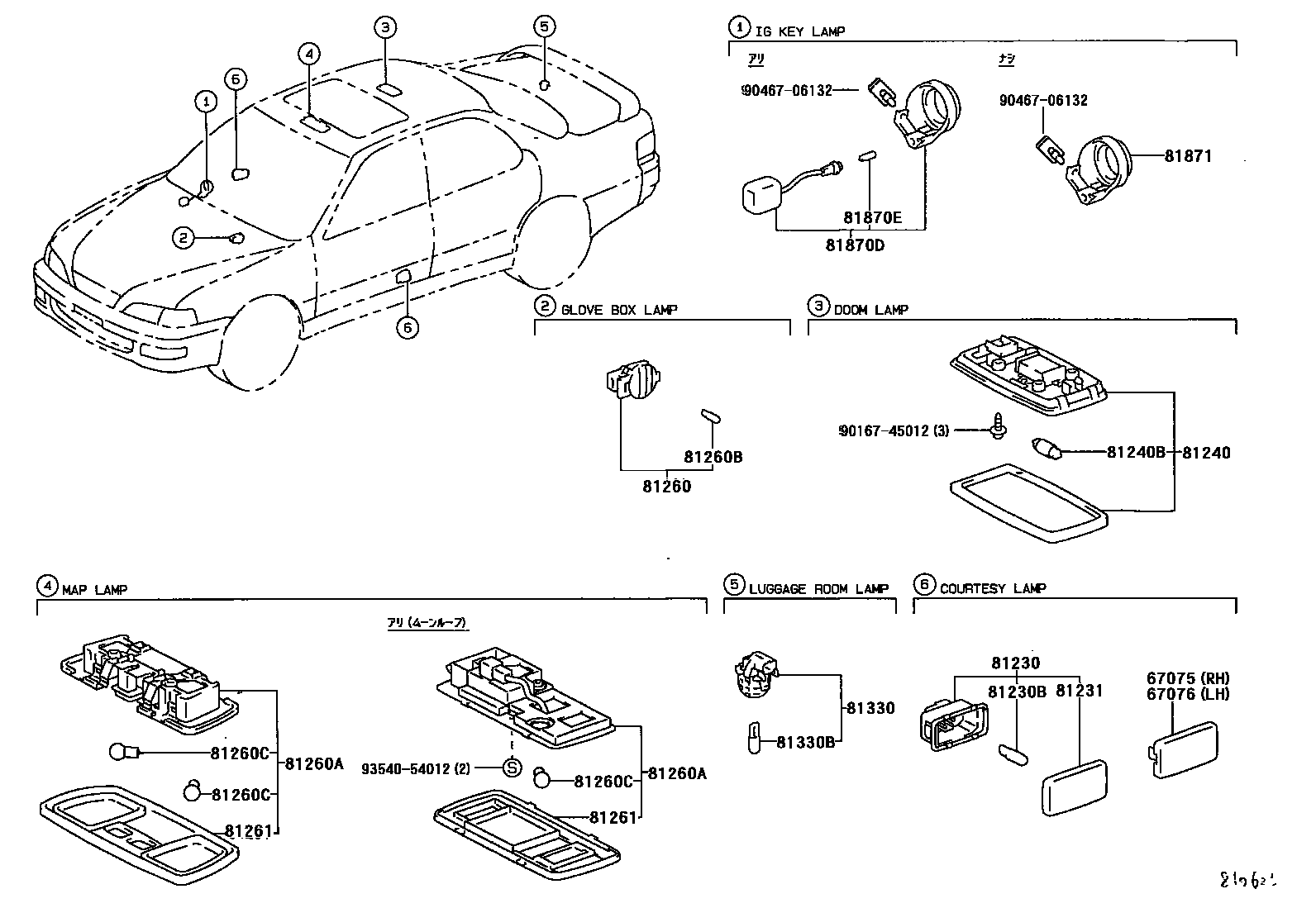

Toyota CAMRY EPC diagram 8121, 车内灯, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67075 | Right front door trim panel reflector sub-assembly | 67665-20020 |
| 67076 | Left front door trim panel reflector sub-assembly | 67665-20020 |
| 81230 | Door control light assembly | 81230-30140 |
| 81230B | Bulb (for gated lights) | 90981-11020 |
| 81231 | door control lamp shade | 81231-50010 |
| 81240B | Interior light bulb No. 1 | 90981-14004 |
| 81260 | Glove box light assembly | 81260-33010 |
| 81260B | Light bulb (for glove box) | 90981-11018 |
| 81260C | Light bulb (for reading lamp) | 90981-12014 · 90981-12020 |
| 81330 | No. 1 trunk light assembly | 81330-30090 |
| 81330B | trunk light bulb | 90981-11020 |
| 81870D | Lock core lighting assembly | 81870-22050 |
| 81870E | Lock cylinder lighting bulb | 90981-11014 |
| 81871 | Ignition lock cylinder lighting lamp cover | 81871-22020 |
