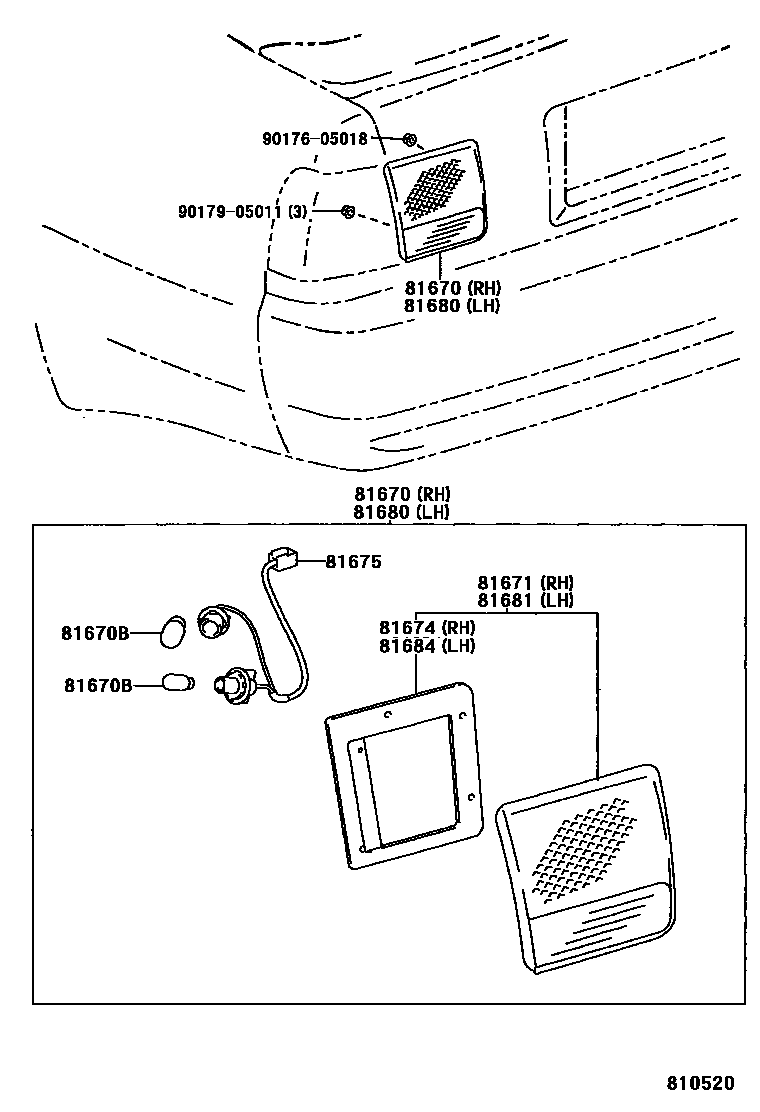

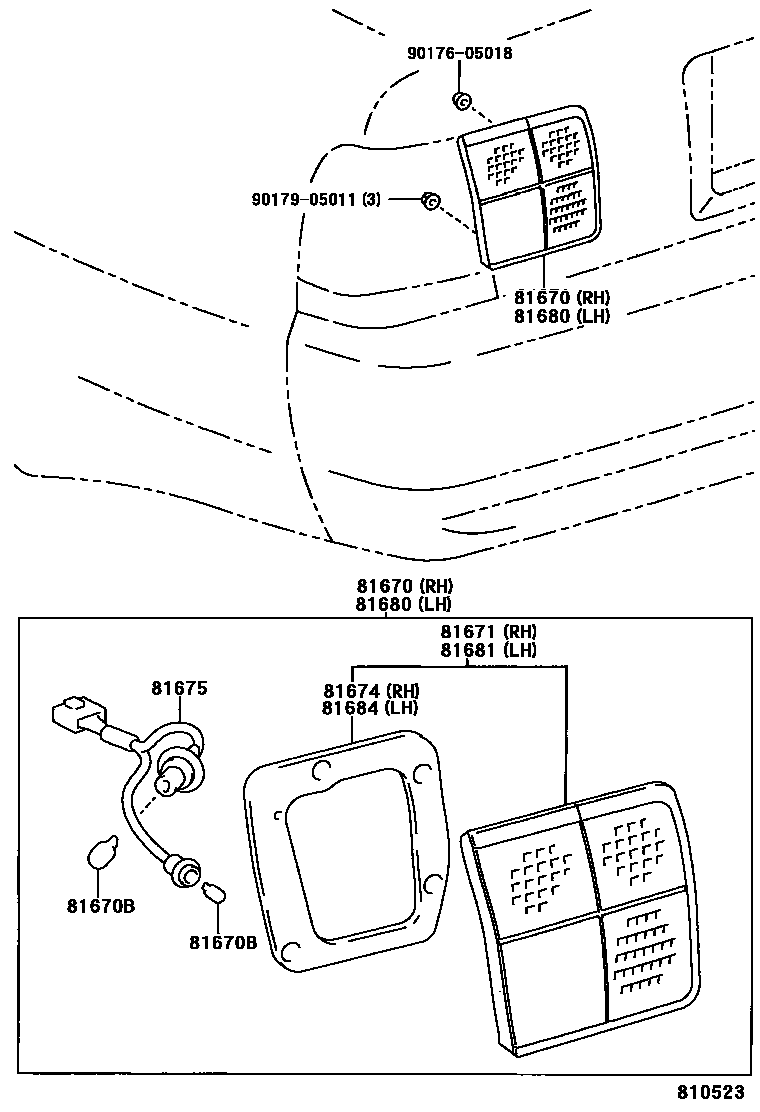

Toyota CAMRY 倒车灯 — Figure 8112
Toyota CAMRY EPC diagram 8112, 倒车灯, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81670 | Right reversing light assembly | 81670-32090 · 81670-32100 · 81670-32110 |
| 81670B | Bulb (for reversing lights) | 90981-11039 · 90981-13044 · 99132-12050 |
| 81671 | Right reversing light cover | 81671-32090 · 81671-32100 · 81671-32110 |
| 81674 | Right reversing light body gasket | 81674-32090 |
| 81675 | Reversing light holder and wiring harness | 81675-32090 · 81675-32100 |
| 81680 | Left reversing light assembly | 81680-32090 · 81680-32100 · 81680-32110 |
| 81681 | Left reversing light cover | 81681-32090 · 81681-32100 · 81681-32110 |
| 81684 | Left reversing light body gasket | 81674-32090 |
