Toyota CAMRY 后组合灯 — Figure 8111

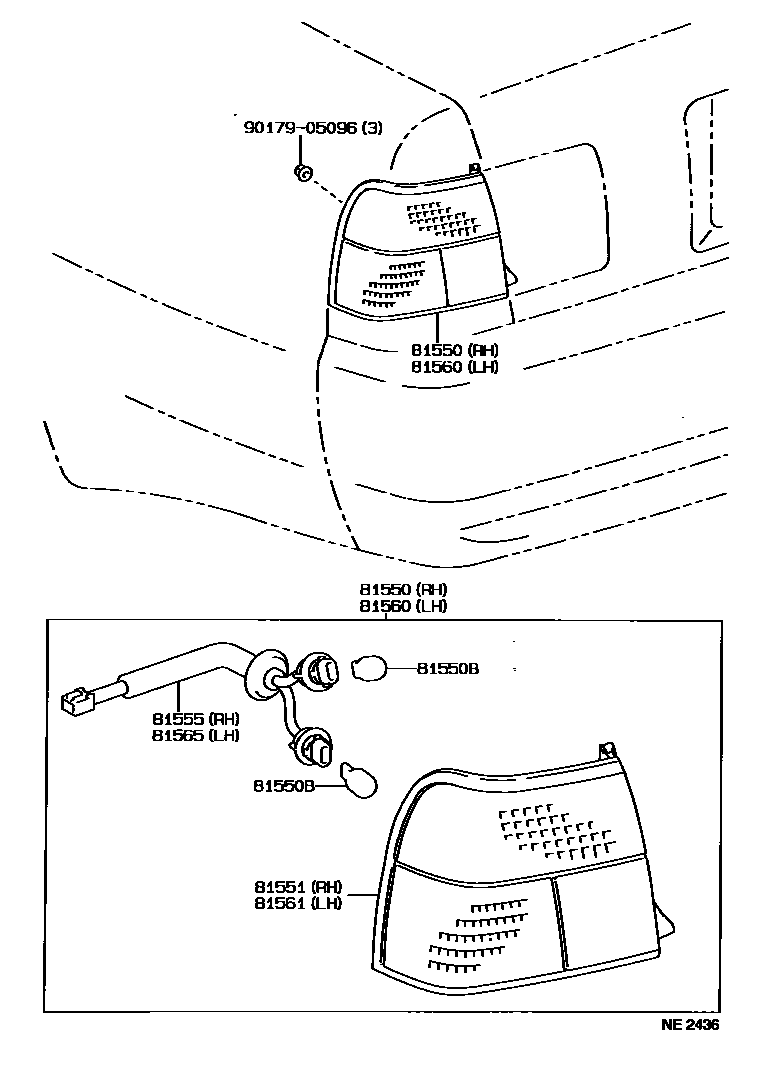

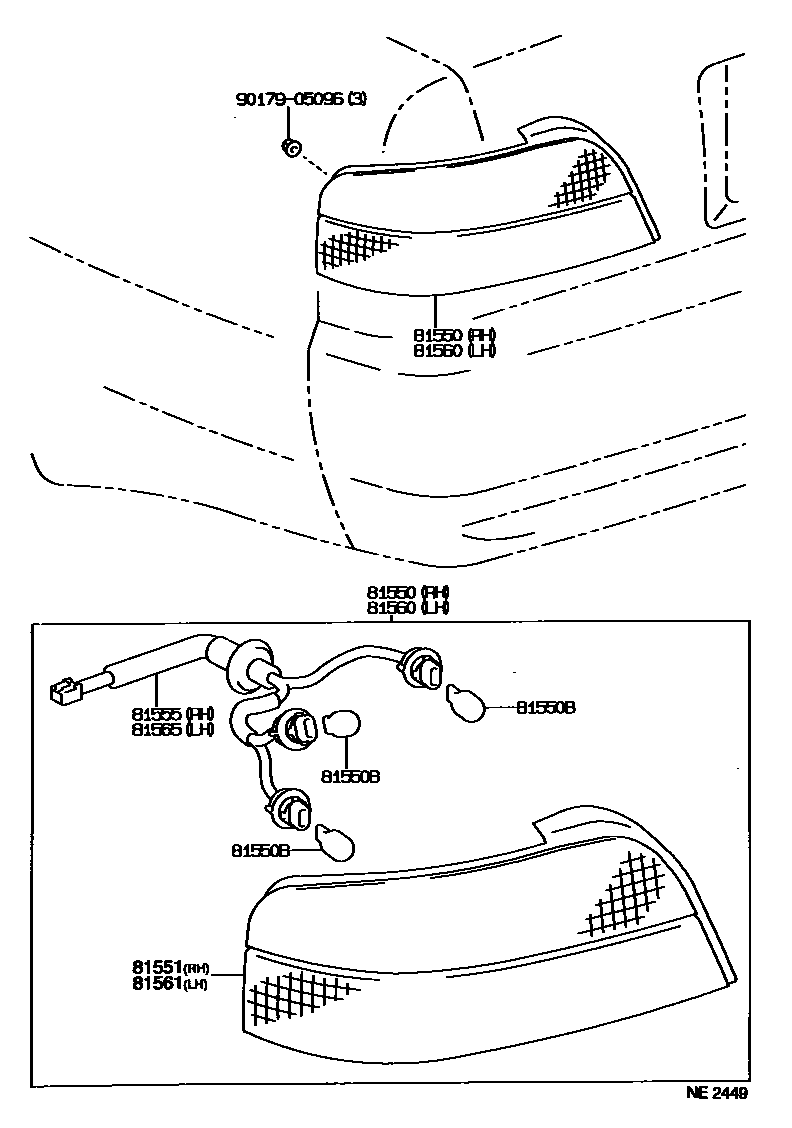

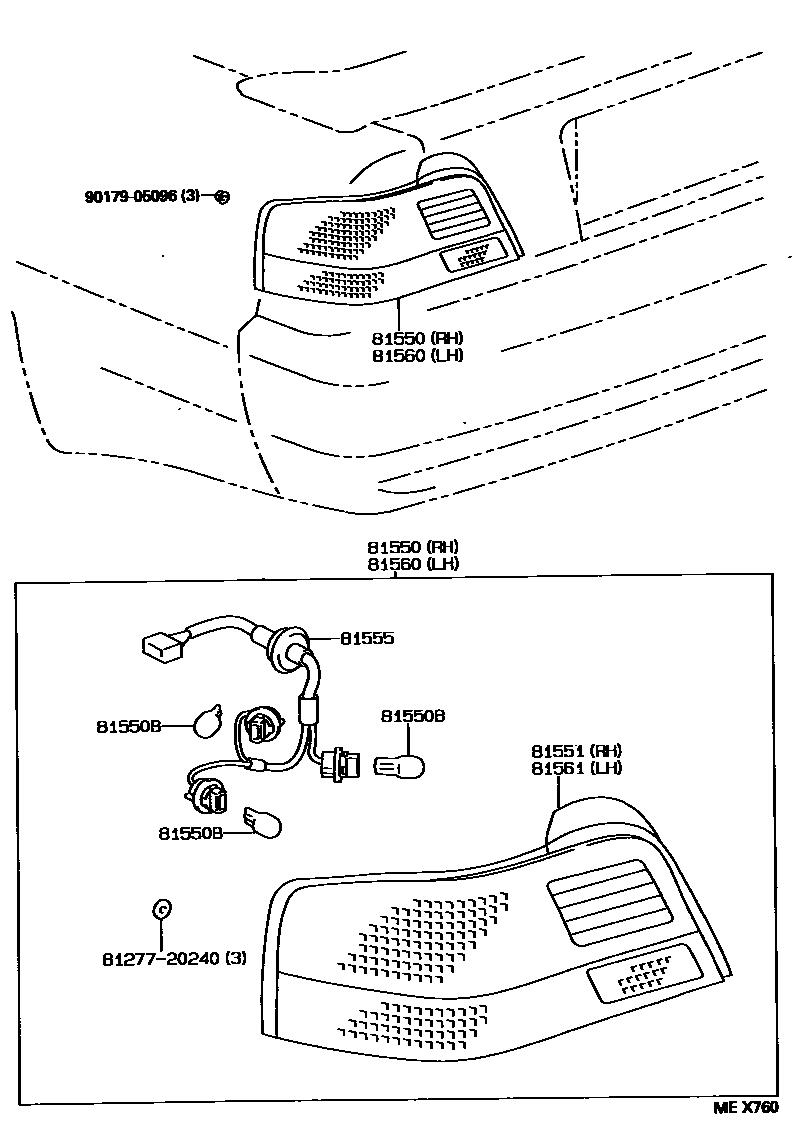

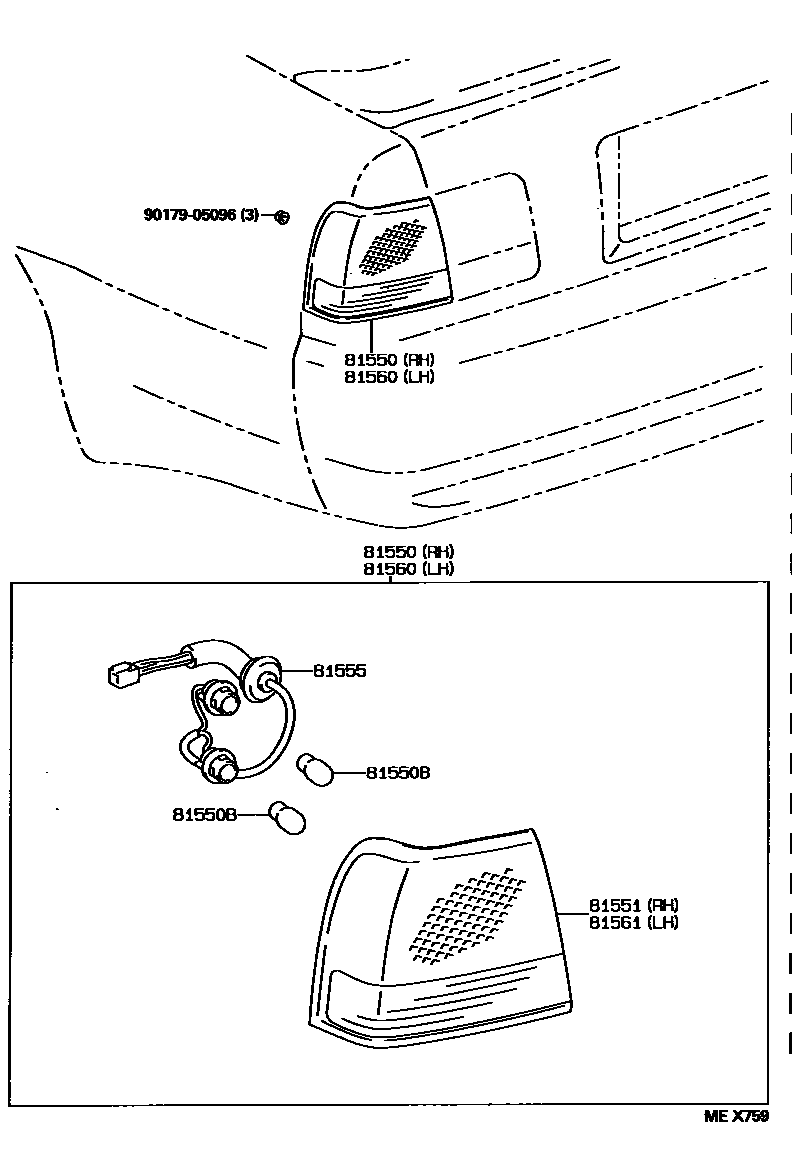

Toyota CAMRY EPC diagram 8111, 后组合灯, with 4 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-32330 · 81550-32340 · 81550-32350 · 81550-32370 · 81550-32380 |
| 81550B | Bulb (for rear combination lights) | 90981-11039 · 90981-13043 · 90981-13044 |
| 81551 | Right rear combination lamp shade | 81551-32330 · 81551-32340 · 81551-32350 · 81551-32370 · 81551-32380 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-32330 · 81555-32350 · 81555-32370 · 81555-32380 |
| 81560 | Left rear combination light assembly | 81560-32330 · 81560-32340 · 81560-32350 · 81560-32370 · 81560-32380 |
| 81561 | Left rear combination lamp shade | 81561-32330 · 81561-32340 · 81561-32350 · 81561-32370 · 81561-32380 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-32370 · 81555-32380 |
