Toyota CAMRY 前示宽灯 — Figure 8104

Toyota CAMRY EPC diagram 8104, 前示宽灯, with 1 images and 7 PNC and OE references.

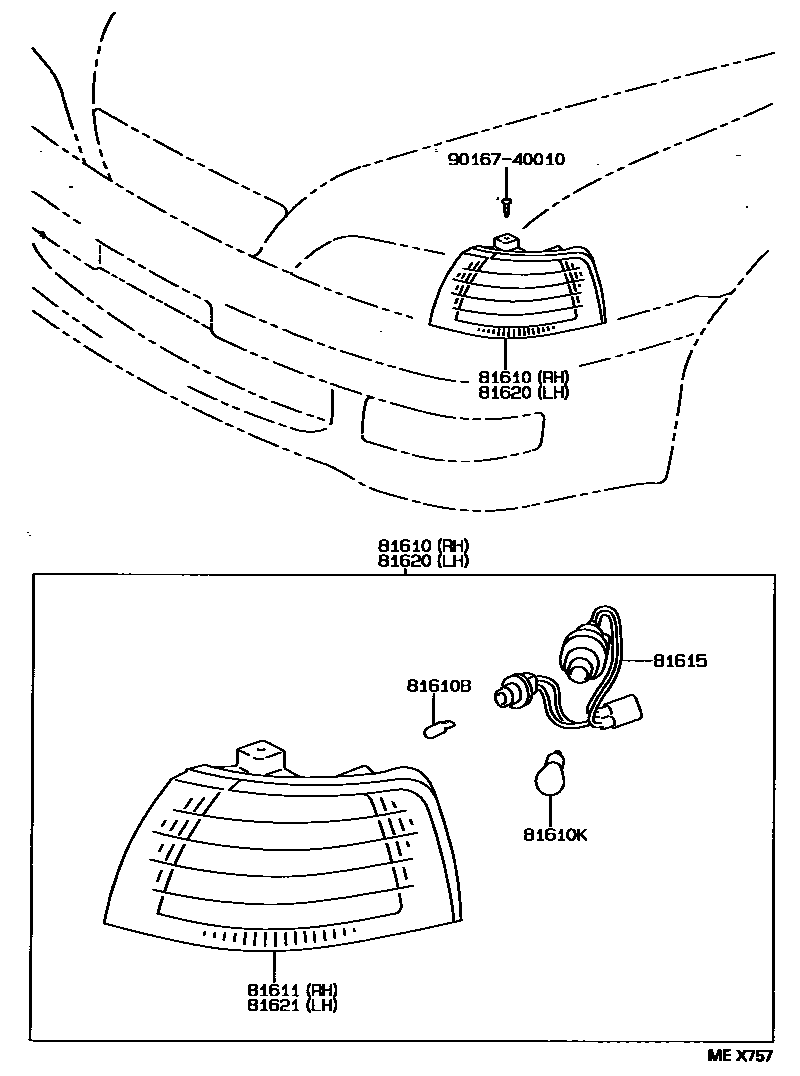

Toyota CAMRY 前示宽灯 EPC diagram — MEX757
前示宽灯 — MEX757 (199406 – 999999)

PNC and OE references

PNCPart nameOE numbers
81610Right parking light and width indicator light assembly81610-32170
81610BBulbs (for parking lights and side lights)99132-12050
81610Kturn indicator bulb99132-11210
81611Right parking light and width indicator light cover81611-32170
81615Width light lamp holder and wiring harness81615-32170
81620Left parking light and width indicator light assembly81620-32170
81621Left parking light and width indicator light cover81621-32170
