Toyota CAMRY Fog Lamp — Figure 8102

Toyota CAMRY EPC diagram 8102, Fog Lamp, with 2 images and 6 PNC and OE references.

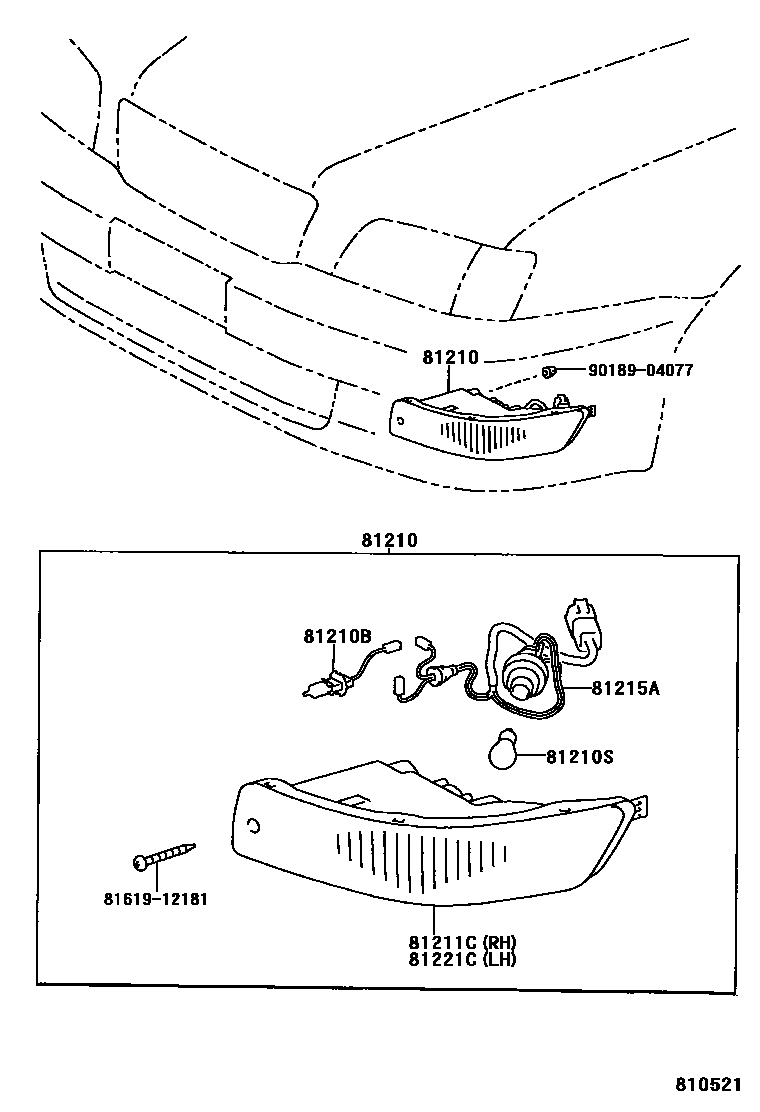

Toyota CAMRY Fog Lamp EPC diagram — 810521
Fog Lamp — 810521 (199406 – 999999)

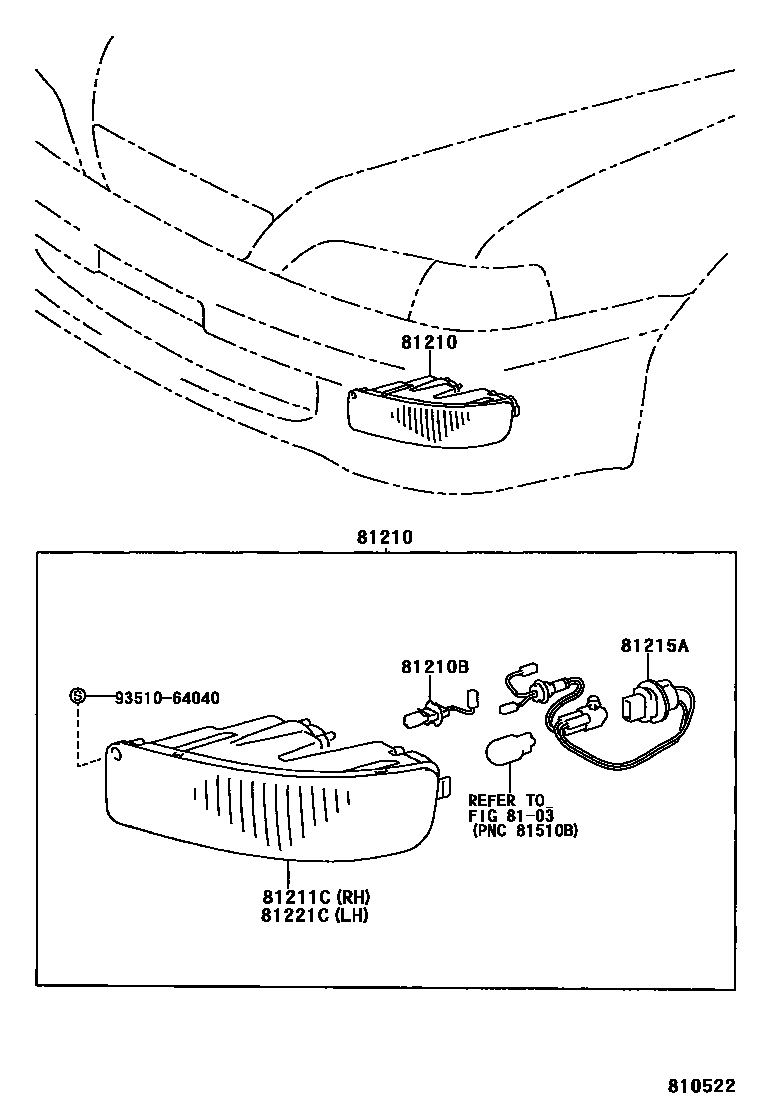

Toyota CAMRY Fog Lamp EPC diagram — 810522
Fog Lamp — 810522 (199406 – 999999)

PNC and OE references

PNCPart nameOE numbers
81210Fog light assembly81210-32060 · 81210-32070 · 81210-32090 · 81220-32060 · 81220-32070 · 81220-32090
81210Bfog light bulb90981-13018 · 90981-13048 · 90981-13049
81210Sturn indicator bulb99132-12050 · 99132-21210
81211CRight fog light assembly81211-32060 · 81211-32070 · 81211-32090
81215AFog light holder and wiring harness81215-32060 · 81215-32070 · 81215-32090
81221CLeft fog light assembly81221-32060 · 81221-32070 · 81221-32090
