Toyota CAMRY Headlamp — Figure 8101

Toyota CAMRY EPC diagram 8101, Headlamp, with 3 images and 13 PNC and OE references.

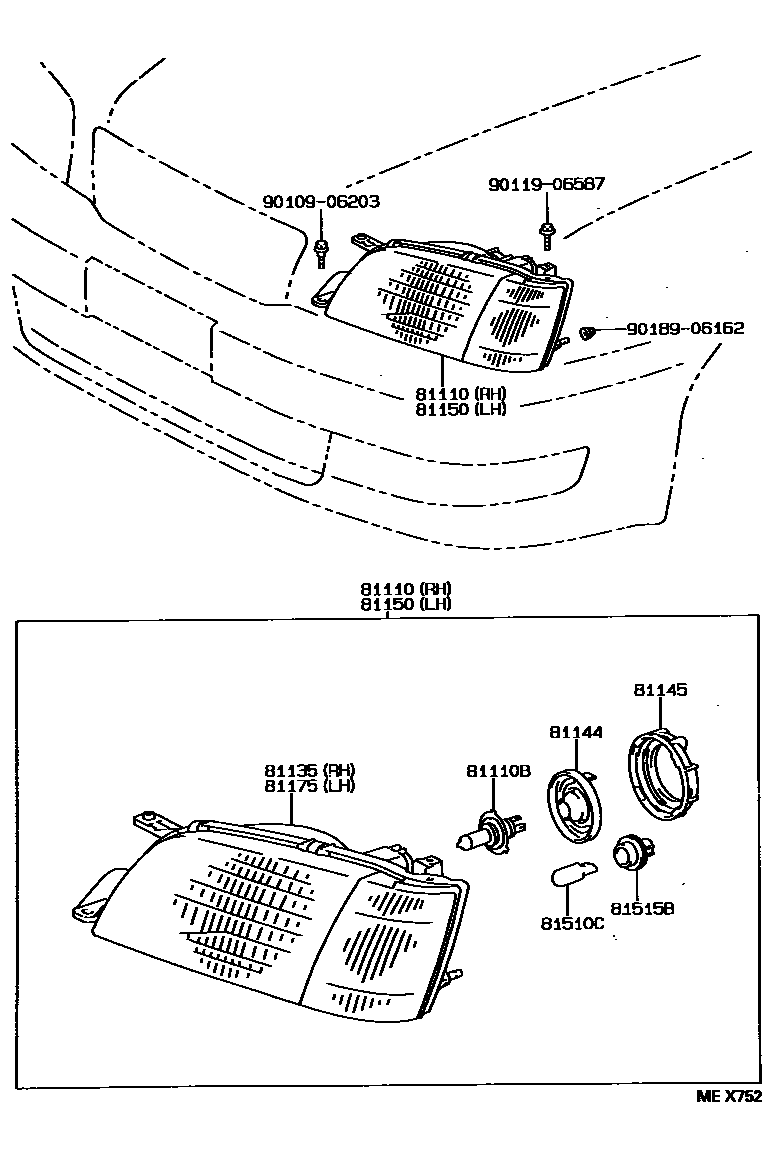

Toyota CAMRY Headlamp EPC diagram — MEX752
Headlamp — MEX752 (199406 – 199605)

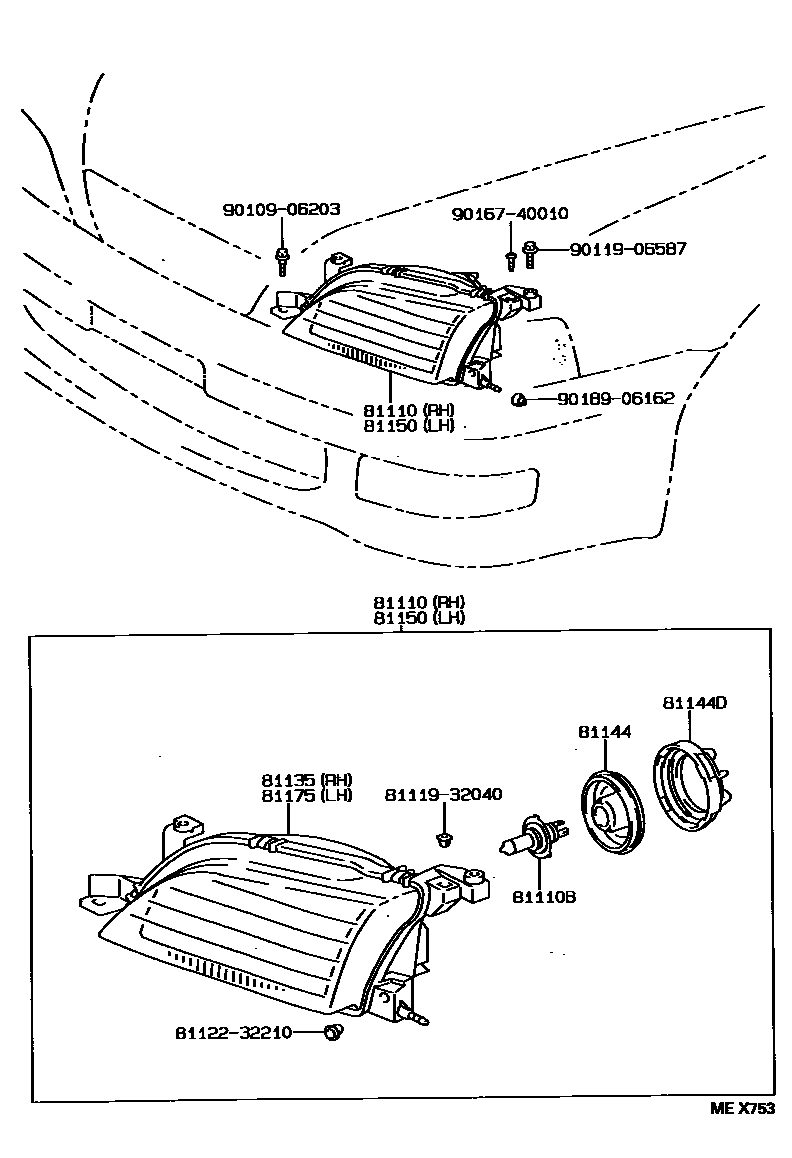

Toyota CAMRY Headlamp EPC diagram — MEX753
Headlamp — MEX753 (199406 – 999999)

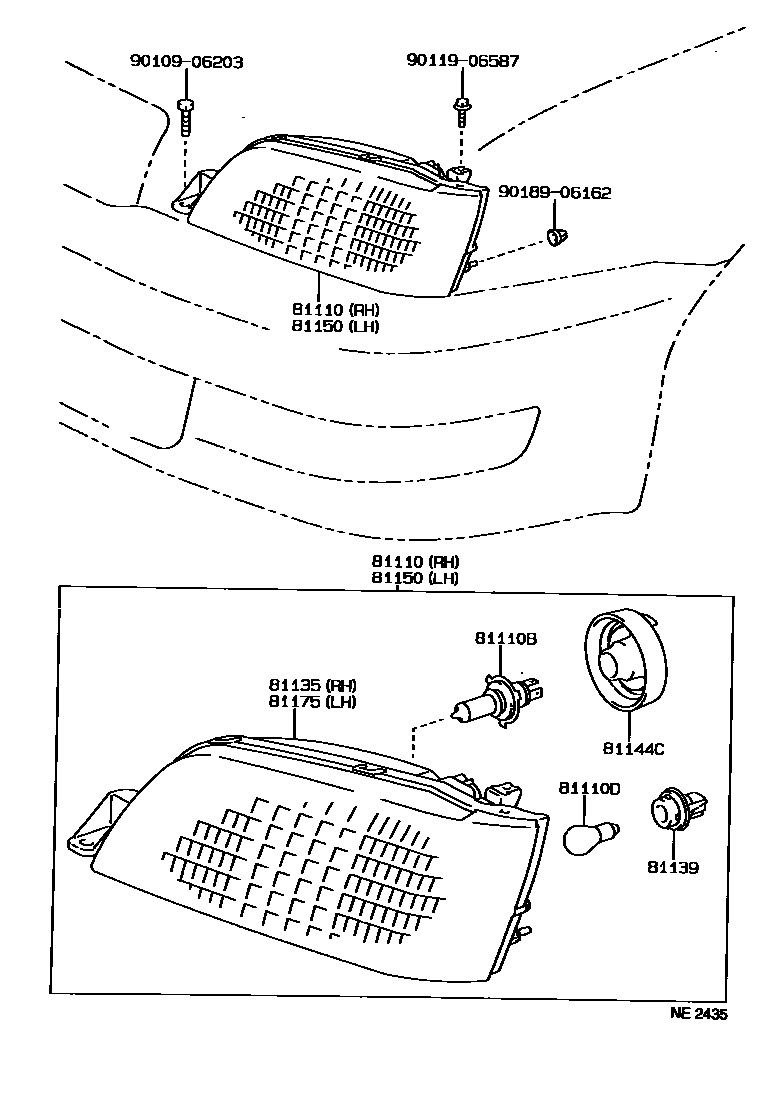

Toyota CAMRY Headlamp EPC diagram — NE2435
Headlamp — NE2435 (199605 – 999999)

PNC and OE references

PNCPart nameOE numbers
81110Right headlight assembly81110-32420 · 81110-32430 · 81110-32440
81110BBulb (for headlight No. 1)90981-22002 · 90981-22004
81110DBulb (for headlight No. 2)90981-15009
81135Right headlight assembly81130-32420 · 81130-32430 · 81130-32440
81139Headlight lamp holder cover90075-60006
81144No. 1 headlight cover81179-32430 · 90075-99058
81144CHeadlight lamp holder cover90075-65002
81144Dheadlight lock cover81122-32430
81145No. 2 headlight cover90075-99096
81150Left headlight assembly81150-32420 · 81150-32430 · 81150-32440
81175Left headlight assembly81170-32420 · 81170-32430 · 81170-32440
81510CBulb (for front turn signal lamp)90981-13043
81515BFront turn signal lamp holder90075-99080
