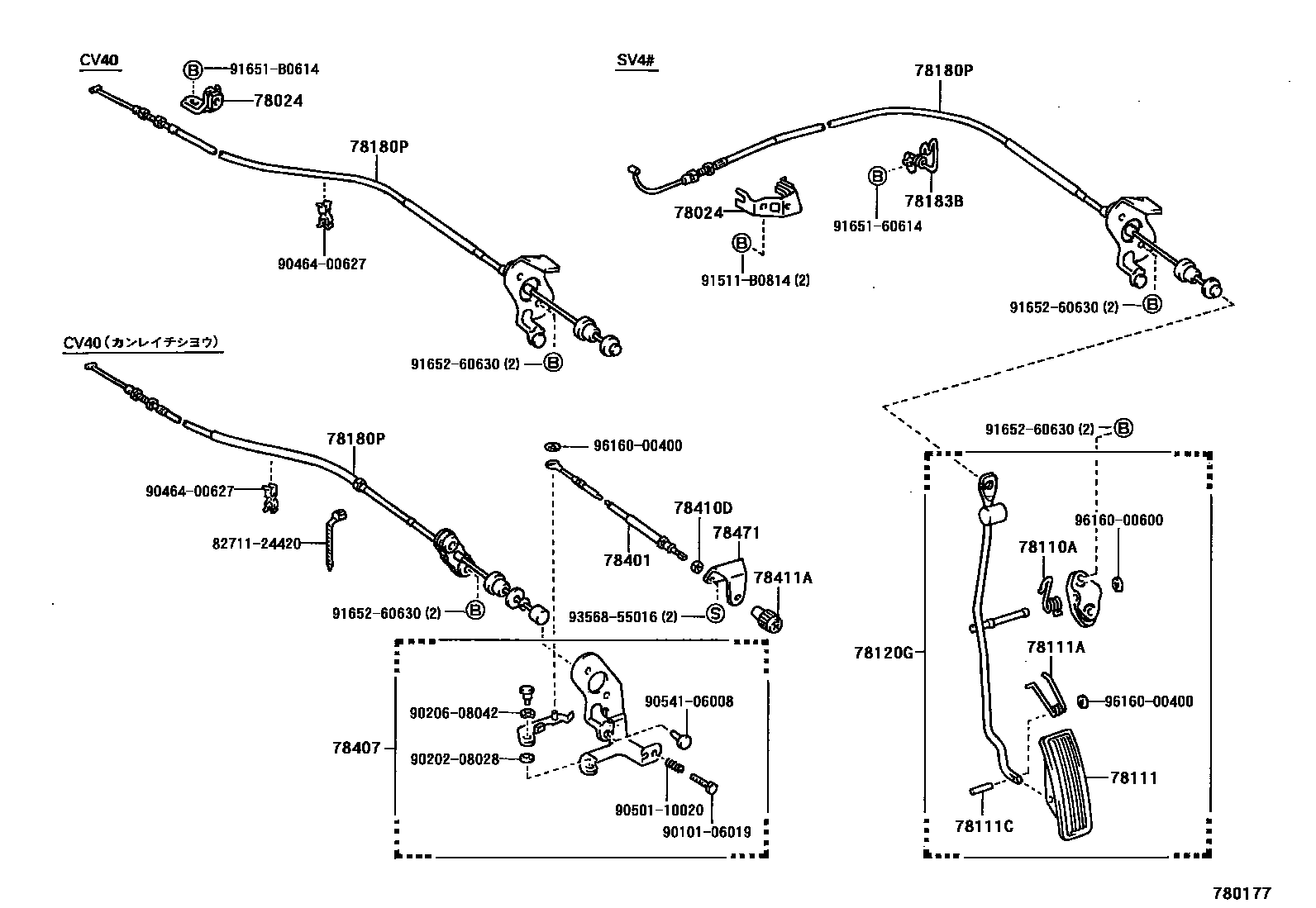

Toyota CAMRY accelerator pedal connecting rod — Figure 7801
Toyota CAMRY EPC diagram 7801, accelerator pedal connecting rod, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78024 | Accelerator pedal control cable bracket sub-assembly | 78024-20140 · 78024-32140 · 78024-44020 |
| 78110A | Spring (for accelerator pedal lever) | 90508-18025 · 90508-28004 |
| 78111 | accelerator pedal | 78111-12100 |
| 78111A | Spring (for gas pedal) | 90508-23119 |
| 78111C | pin (for gas pedal) | 90249-05001 |
| 78120G | Accelerator pedal lever assembly | 78120-32120 · 78120-32130 · 78120-32140 · 78120-32150 |
| 78180P | Accelerator pedal control cable assembly | 78180-32100 · 78180-32101 · 78180-32150 · 78180-32450 · 78180-32460 |
| 78183B | Accelerator pedal control cable clip | 78183-32030 |
| 78401 | Throttle valve control cable sub-assembly | 78401-32040 |
| 78407 | Throttle control arm sub-assembly | 78407-32020 |
| 78410D | throttle nut | 90179-11007 |
| 78411A | Throttle control cable button | 78411-22010 |
| 78471 | Throttle control cable bracket | 78471-32010 |
