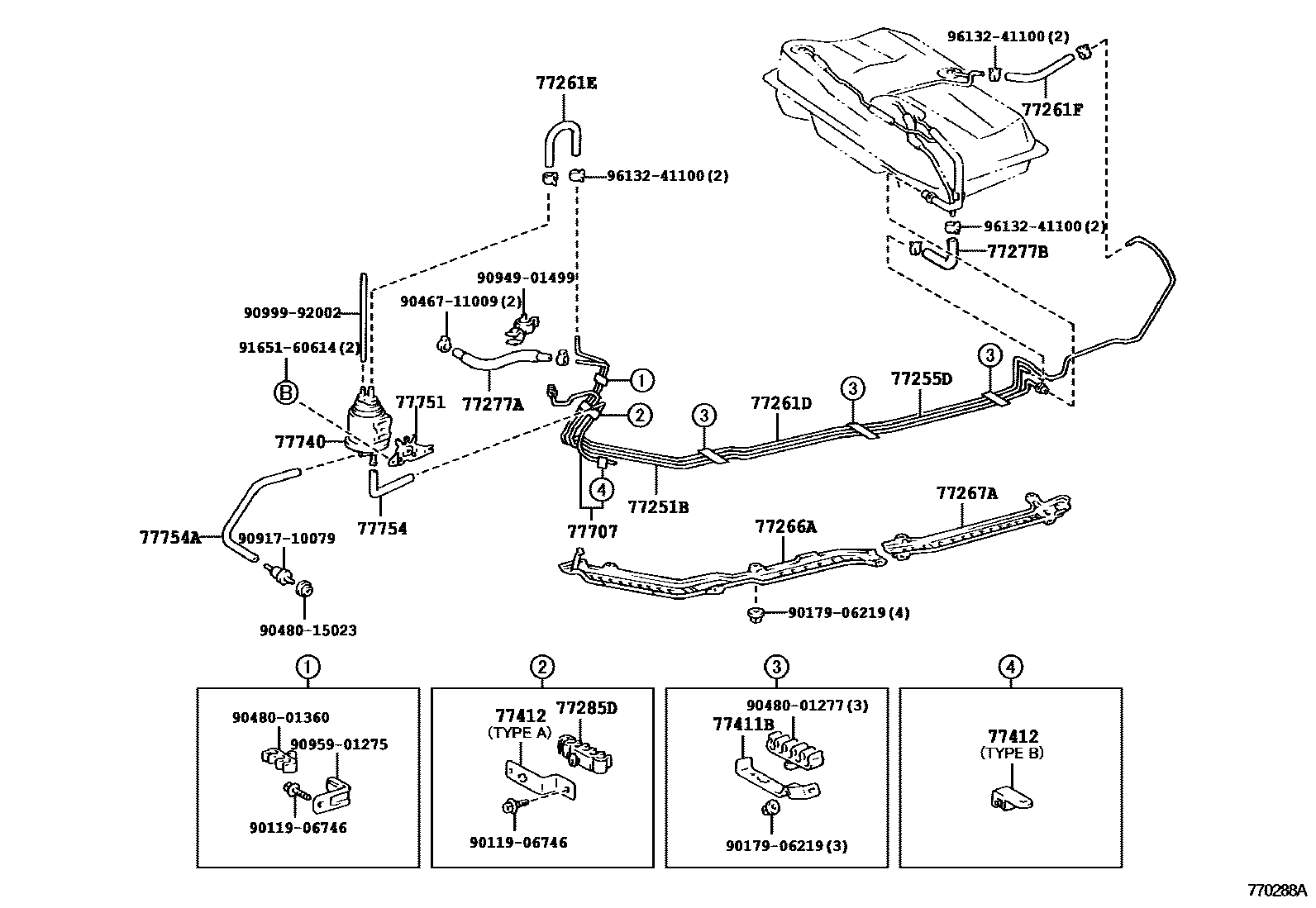

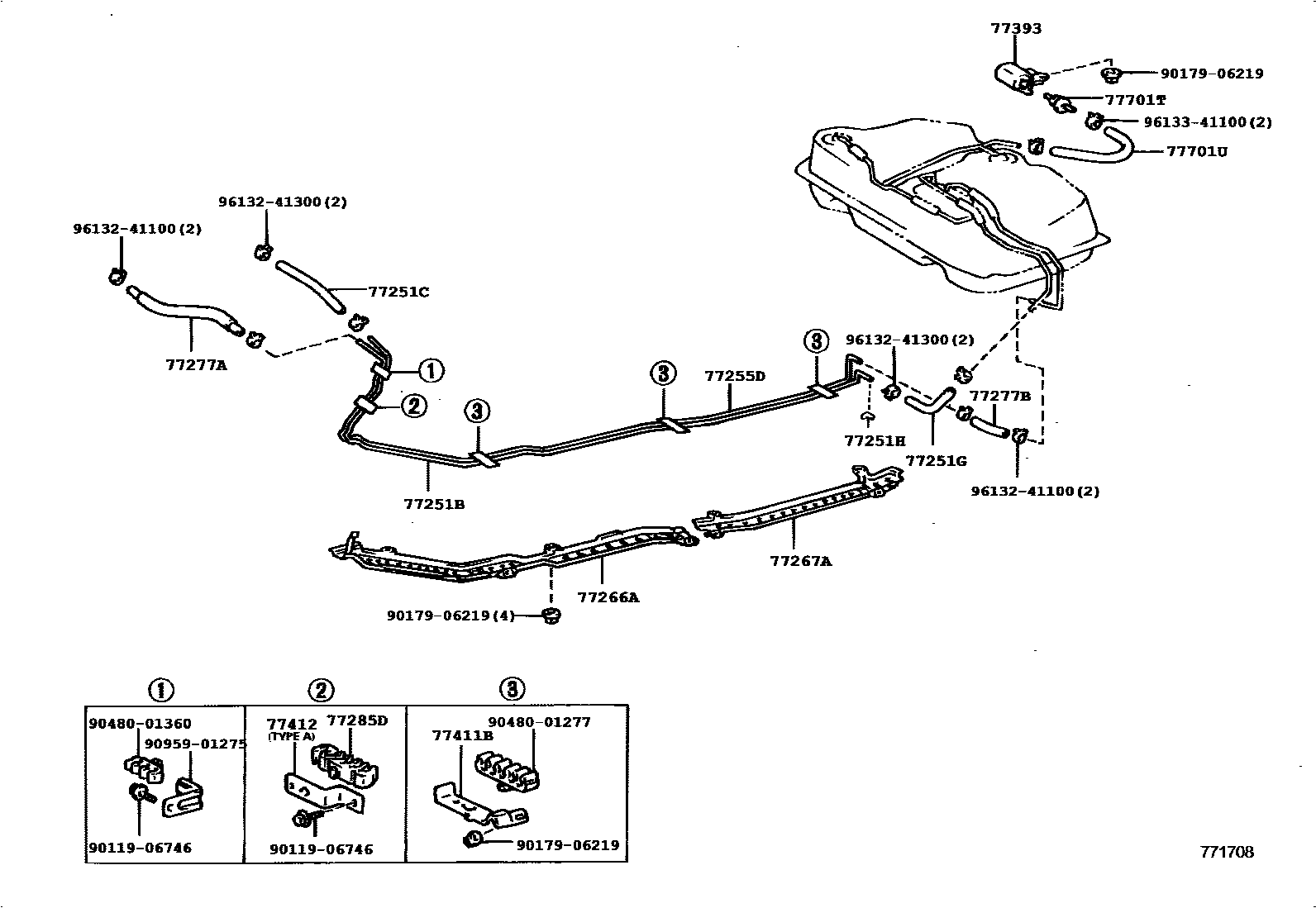

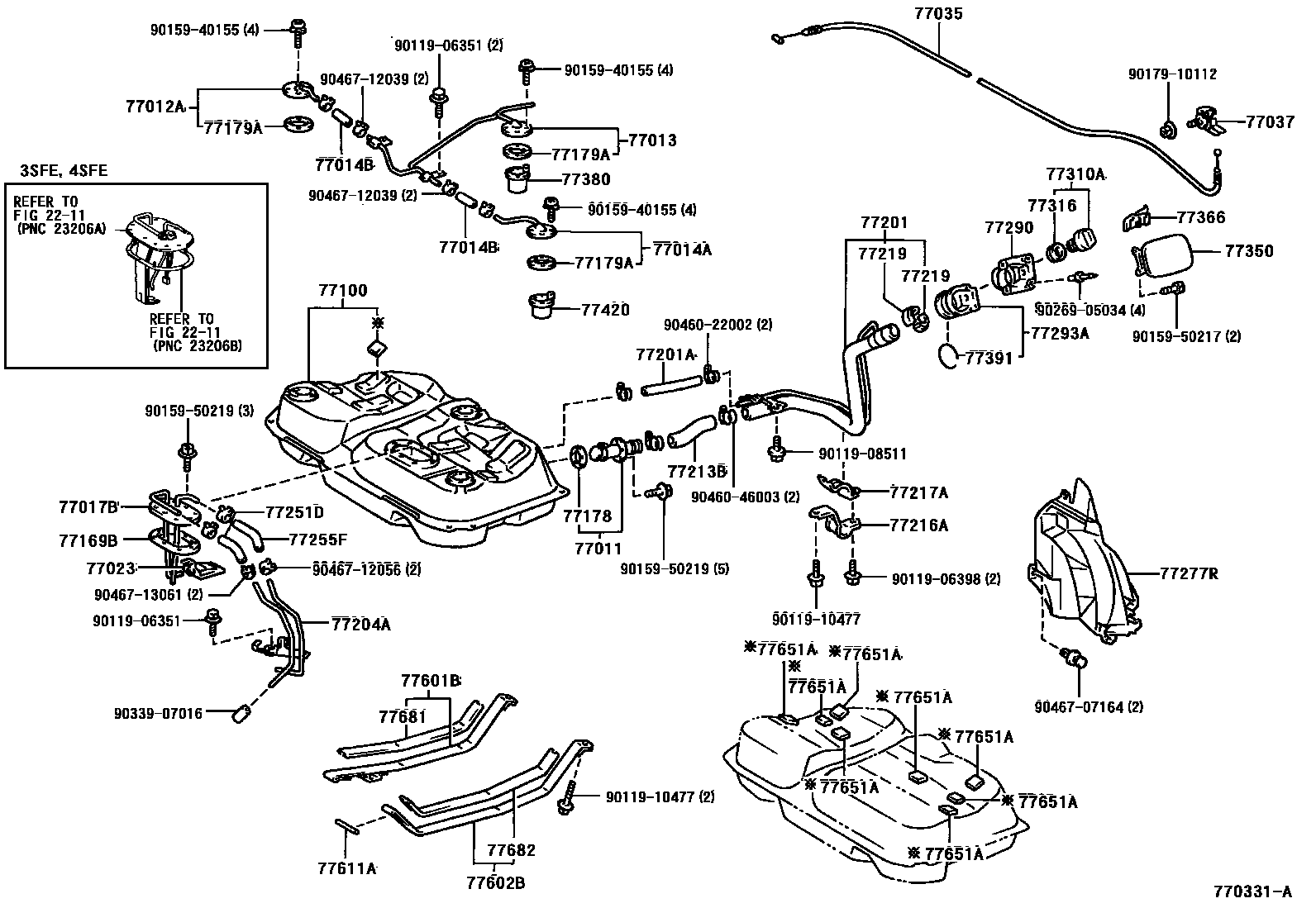

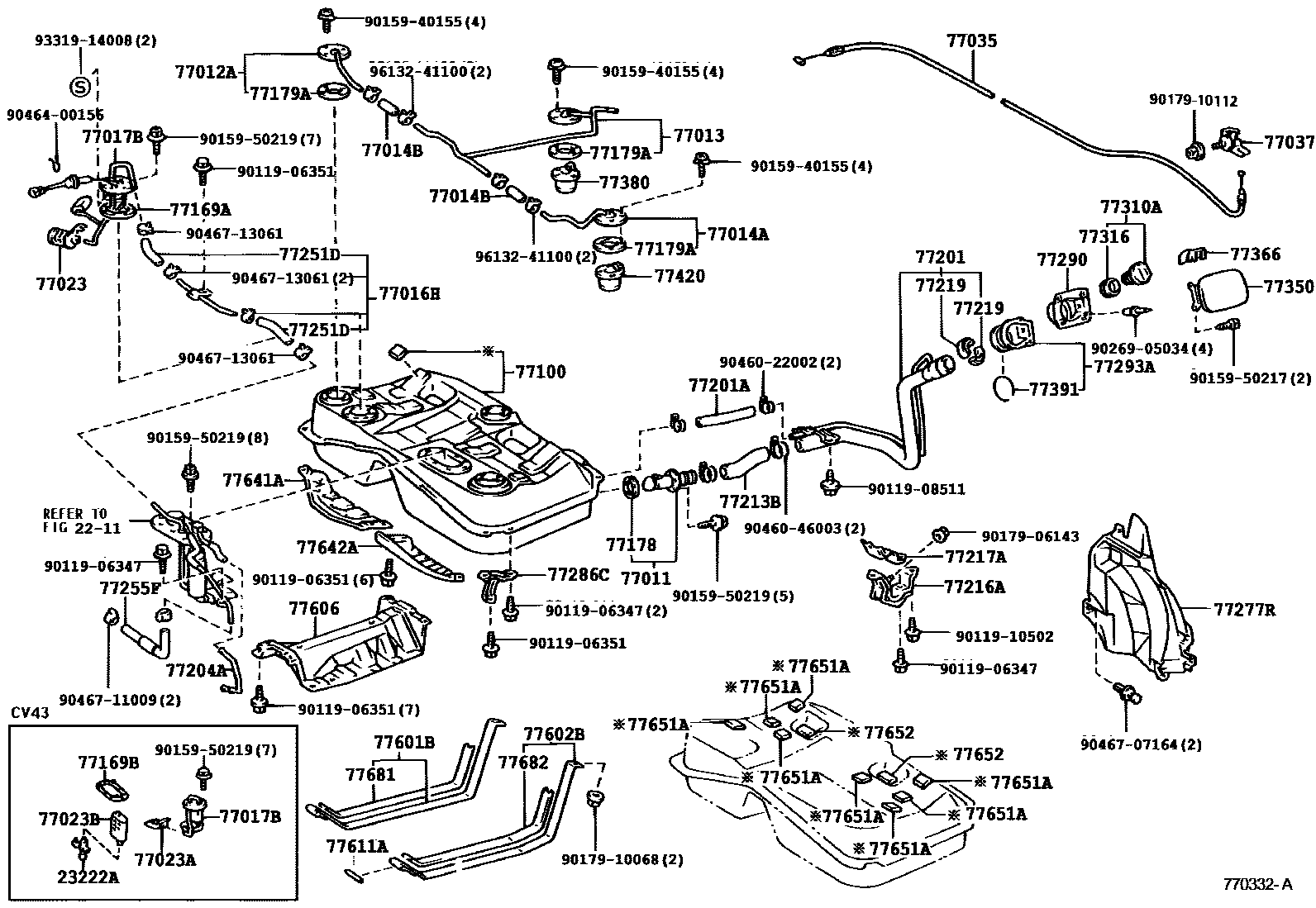

Toyota CAMRY 燃油箱和燃油管 — Figure 7701
Toyota CAMRY EPC diagram 7701, 燃油箱和燃油管, with 4 images and 67 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23222A | fuel return nozzle | 23222-64020 |
| 77011 | Filling pipe sub-assembly under fuel tank | 77011-32040 |
| 77012A | No. 1 fuel tank breather pipe sub-assembly | 77012-32050 · 77012-32070 |
| 77013 | No. 2 fuel tank breather pipe sub-assembly | 77013-20080 · 77013-32050 |
| 77014A | No. 3 fuel tank breather pipe sub-assembly | 77014-20060 · 77014-32060 |
| 77016H | Fuel return ventilation pipe sub-assembly | 77016-32010 |
| 77017B | Fuel tank vent pipe sub-assembly | 77017-32120 · 77017-32130 |
| 77023 | Fuel suction pipe filter sub-assembly | 77023-16020 · 77023-32040 |
| 77023A | Fuel suction pipe filter sub-assembly (for auxiliary fuel tank) | 77023-16020 |
| 77023B | No. 2 fuel suction pipe filter sub-assembly | 77023-20050 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-32170 · 77035-32180 |
| 77037 | Fuel filler cap lock sub-assembly | 77037-14020 · 77037-32030 |
| 77100 | fuel tank assembly | 77001-32910 · 77001-32911 · 77001-32912 · 77001-39306 |
| 77169A | Fuel suction pipe fixed gasket | 77169-14010 |
| 77169B | No. 1 fuel suction pipe fixing pad | 77169-60010 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-20030 |
| 77179A | fuel tank breather gasket | 77179-26010 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-32150 |
| 77201A | No. 1 fuel hose (for fuel tank inlet pipe) | 77019-32140 |
| 77204A | fuel tank return pipe | 77204-32020 · 77204-32030 |
| 77213B | Fuel tank to filler pipe hose | 77213-32050 · 77213-32060 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77104-32010 · 77216-33010 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-32040 · 77217-33010 |
| 77219 | Fuel tank filler pipe cap | 77219-32030 |
| 77251B | main fuel pipe | 77251-32160 · 77251-32170 · 77251-32180 |
| 77251C | No. 1 fuel hose (for main fuel line) | 77259-32060 |
| 77251D | No. 2 fuel hose (for main fuel line) | 95333-08011 |
| 77251G | No. 3 fuel hose (for main fuel line) | 95333-08020 |
| 77251H | Main fuel line cushion | 32926-22020 |
| 77255D | fuel return pipe | 77255-32120 |
| 77255F | No. 2 fuel hose (for fuel return pipe) | 77259-32040 · 77259-32070 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-32110 |
| 77266A | No. 1 fuel line protection device | 77266-32030 |
| 77267A | No. 2 fuel pipe protection device | 77267-32040 |
| 77277A | No. 1 fuel hose (for No. 1 return pipe) | 90447-12063 · 90447-12085 · 90447-12141 |
| 77277B | No. 2 fuel hose (for No. 1 return pipe) | 95334-06014 |
| 77277R | Fuel tank filler pipe protection device | 77277-32060 |
| 77285D | No. 1 fuel pipe clamp | 77285-32030 |
| 77286C | Fuel tank inlet hose protection device | 77286-20060 |
| 77290 | Fuel tank filler pipe cover assembly | 77290-32040 · 77290-32050 |
| 77293A | No. 3 fuel tank filler pipe cover | 77293-32030 · 77293-32040 |
| 77310A | Fuel tank cap assembly | 77310-12150 · 77310-16011 · 77310-32011 · 77310-48010 |
| 77316 | fuel tank cap gasket | 77316-16010 |
| 77350 | Fuel filler cap assembly | 77350-32090 · 77350-32100 |
| 77366 | Fuel filler cap hinge spring | 77360-12080 · 77360-17010 · 77360-20050 |
| 77380 | Fuel shut-off valve assembly | 77380-26010 |
| 77391 | fuel inlet ring | 77391-16011 |
| 77393 | One-way valve protection device | 77393-20010 |
| 77411B | No. 1 fuel pipe retaining ring bracket | 77411-32010 |
| 77412 | No. 2 fuel pipe retaining ring bracket | 77412-32010 · 77412-32020 |
| 77420 | No. 2 fuel shut-off valve assembly | 77420-26010 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-32090 · 77601-32100 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-32080 · 77602-32090 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-32031 |
| 77611A | Pin (for fuel tank strap) | 90250-08019 |
| 77641A | No. 1 fuel tank protective shell | 77641-32050 |
| 77642A | No. 2 fuel tank protective shell | 77642-32010 |
| 77651A | No. 1 fuel tank liner | 77651-32050 |
| 77652 | No. 1 fuel tank liner | 77651-20090 |
| 77681 | Fuel tank right side strap seat | 77681-32060 · 77681-32070 |
| 77682 | Fuel tank left side strap seat | 77681-32060 |
| 77701T | Check valve (for main fuel tank) | 90917-10082 |
| 77707 | Carbon canister outlet hose sub-assembly | 77707-32010 |
| 77740 | Carbon canister assembly | 77704-32070 · 77704-32071 |
| 77751 | Carbon canister base bracket | 77751-32081 |
| 77754 | No. 1 carbon canister outlet hose | 77754-32110 |
| 77754A | No. 2 carbon canister outlet hose | 77754-32100 |
