Toyota CAMRY 挡泥板和扰流板 — Figure 7601

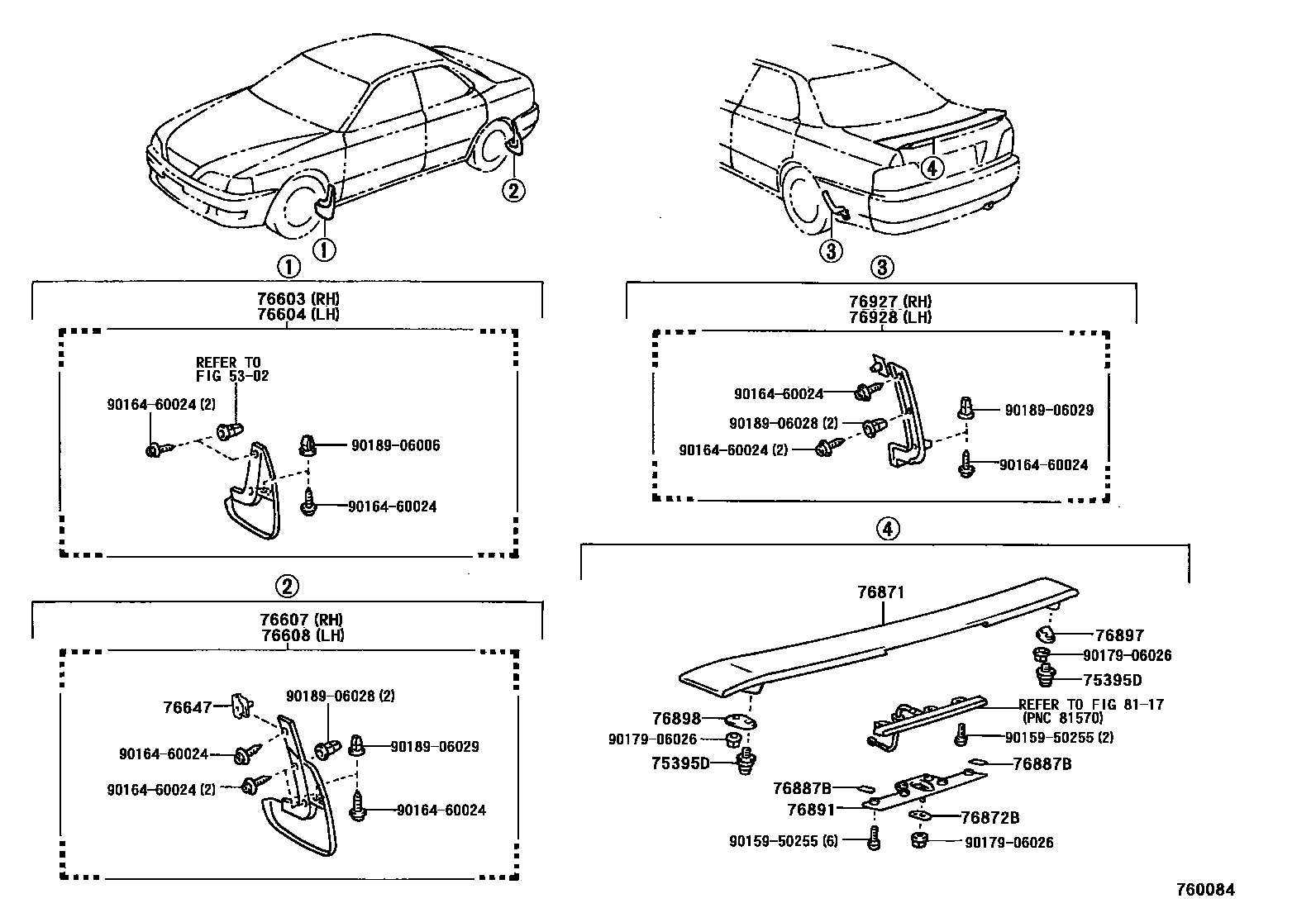

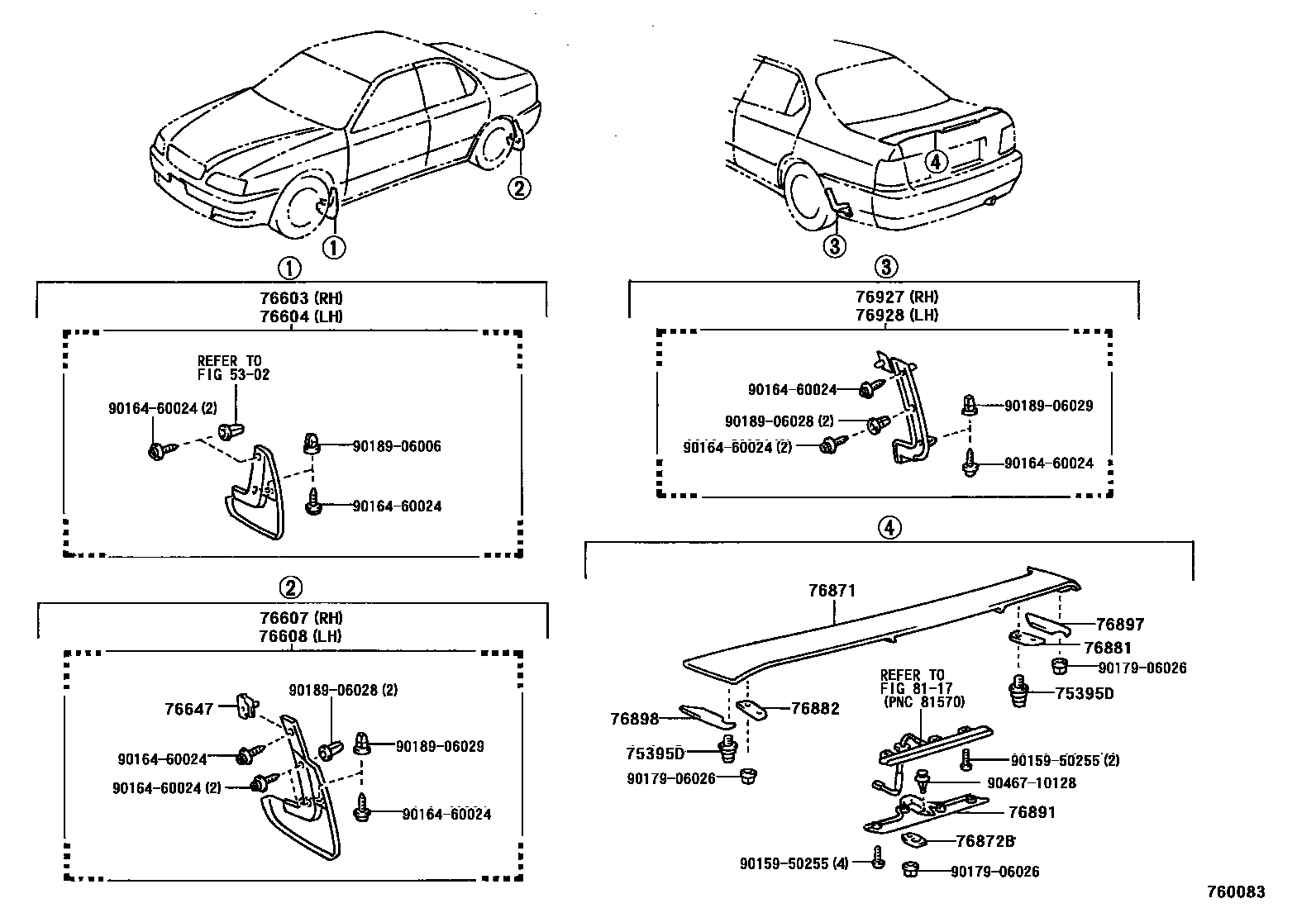

Toyota CAMRY EPC diagram 7601, 挡泥板和扰流板, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75395D | No. 1 outer protective strip clip | 75395-12090 |
| 76603 | Right front fender fender sub-assembly | 76621-39355 · 76621-39365 |
| 76604 | Left front fender fender sub-assembly | 76622-39355 · 76622-39365 |
| 76607 | Right rear side fender sub-assembly | 76625-39425 · 76625-39435 |
| 76608 | Left rear side fender sub-assembly | 76626-39425 · 76626-39435 |
| 76647 | Rear side panel fender fixings | 76647-32010 |
| 76871 | rear spoiler | 76871-32900 · 76871-32902 |
| 76872B | Rear center spoiler protective strip | 76872-32030 · 76872-32040 |
| 76881 | No. 1 right rear spoiler protective strip | 76881-32010 |
| 76882 | No. 1 left rear spoiler protective strip | 76882-32010 |
| 76887B | No. 2 rear spoiler protection strip | 76887-32010 |
| 76891 | No. 1 rear spoiler | 76891-32901 · 76891-32903 |
| 76897 | Right rear spoiler protection strip | 76897-32030 · 76897-32040 |
| 76898 | Left rear spoiler protection strip | 76898-32030 · 76898-32040 |
| 76927 | Right rear fender protection strip | 76927-39015 |
| 76928 | Left rear fender protection strip | 76928-39015 |
