Toyota CAMRY 后排座椅和座椅滑轨 — Figure 7102

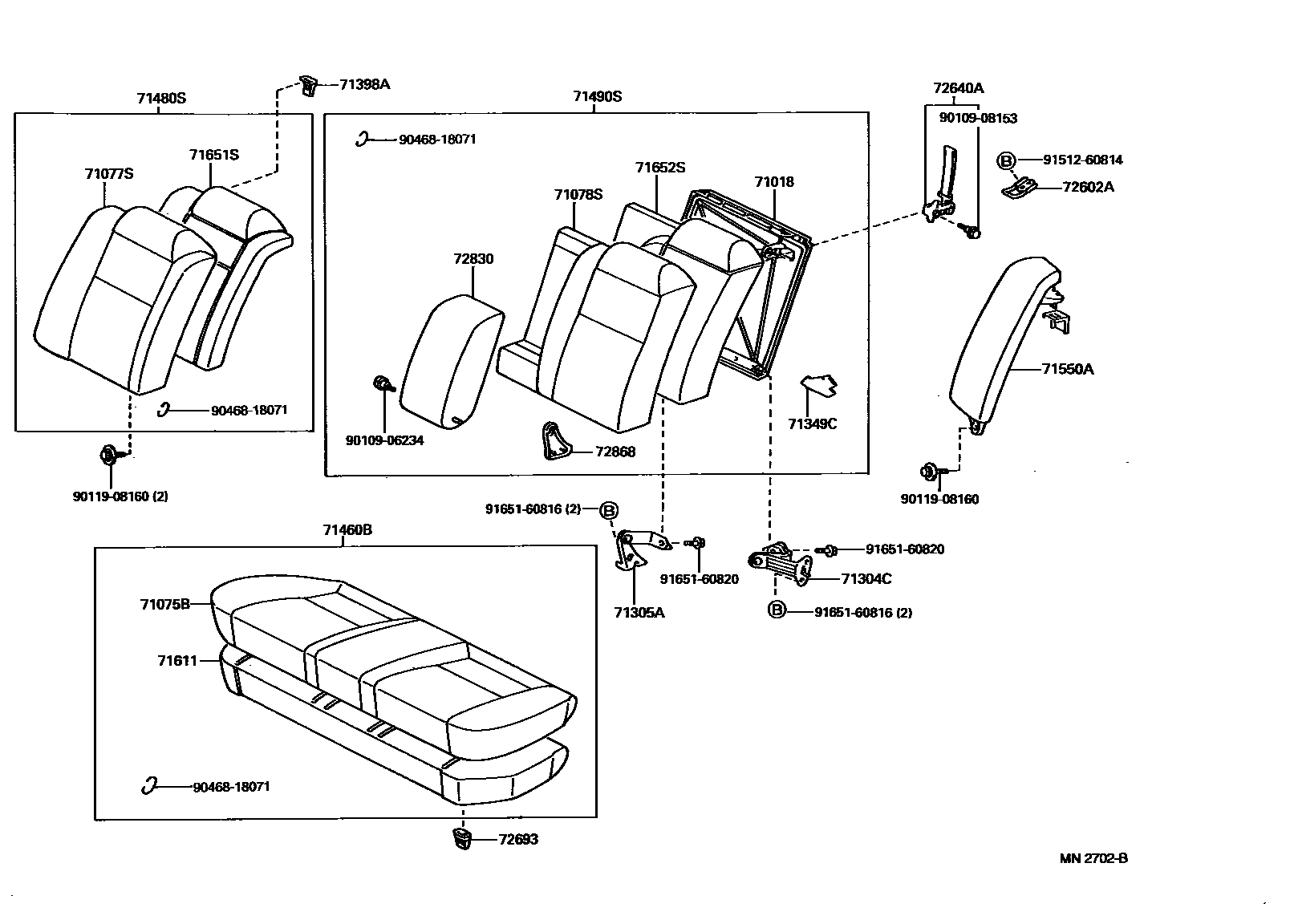

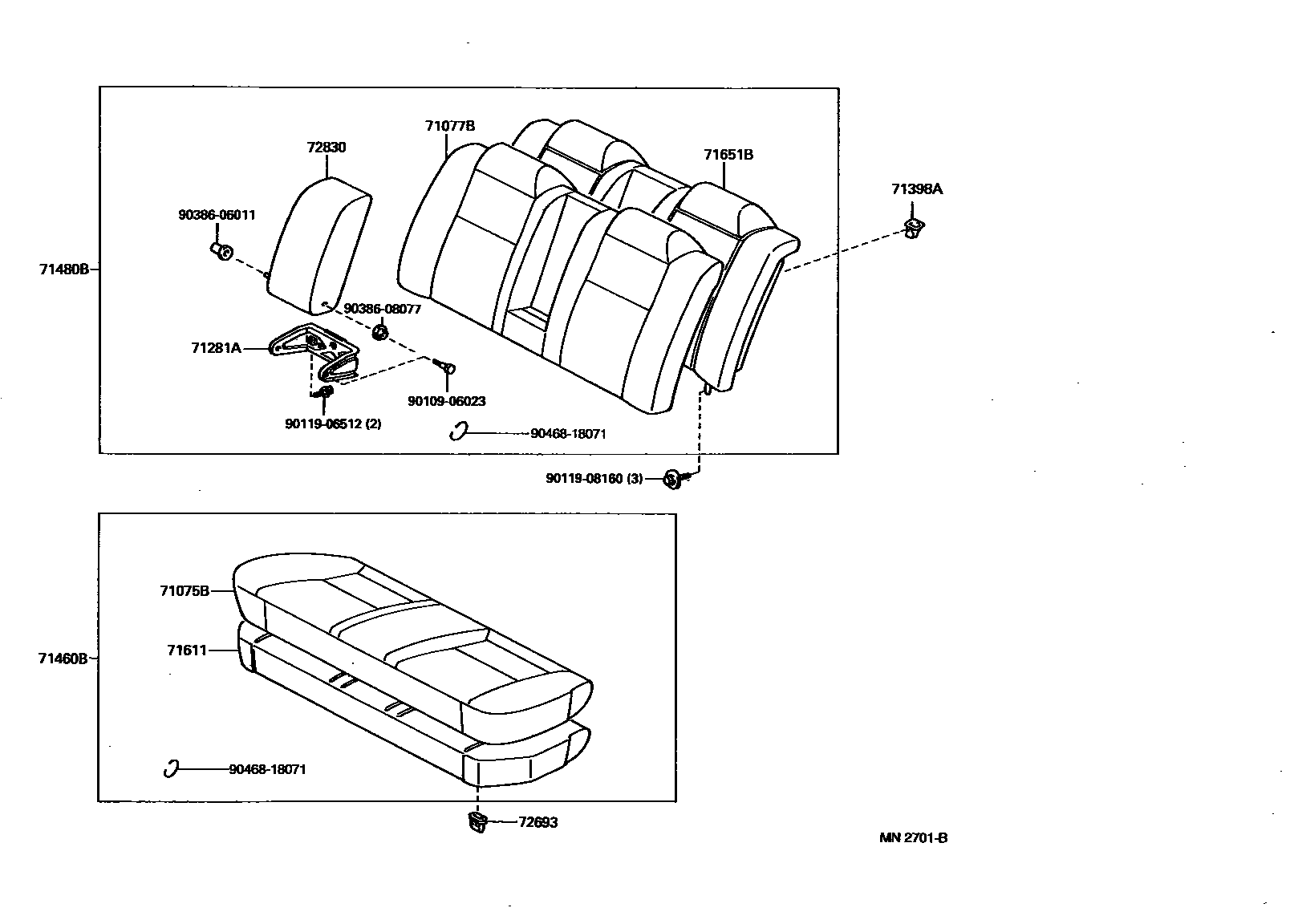

Toyota CAMRY EPC diagram 7102, 后排座椅和座椅滑轨, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71018 | Rear left seat back frame sub-assembly | 71018-32070 |
| 71281A | Rear seat center armrest hinge | 71281-12030 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-32070 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-32070 |
| 71349C | Rear seat back hinge cover | 71349-32060 |
| 71398A | Rear seat back retainer | 71398-32010 |
| 71611 | Rear seat cushion cushion | 71503-32010 · 71503-32020 |
| 71651B | Rear seat back cushions (for bench seats) | 71507-32050 · 71507-32060 · 71507-32080 |
| 71651S | Rear right seat back cushion (for split seats) | 71507-32070 · 71507-32090 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-32120 · 71652-32130 |
| 72602A | Rear left seat back lock sub-assembly | 72601-32020 |
| 72693 | Rear seat cushion hook | 72693-20040 |
| 72868 | Right center armrest hinge cover | 72868-32020 |
