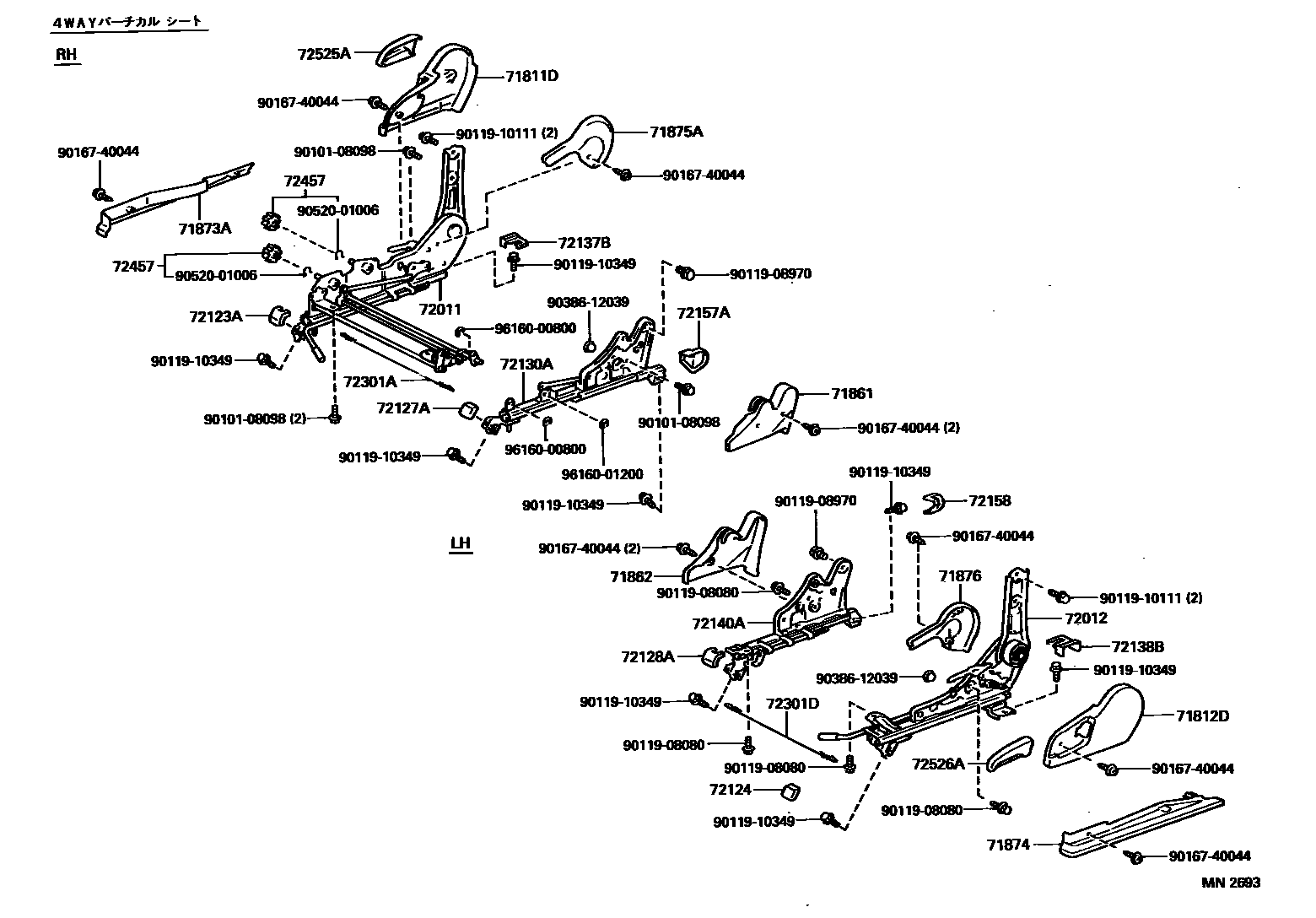

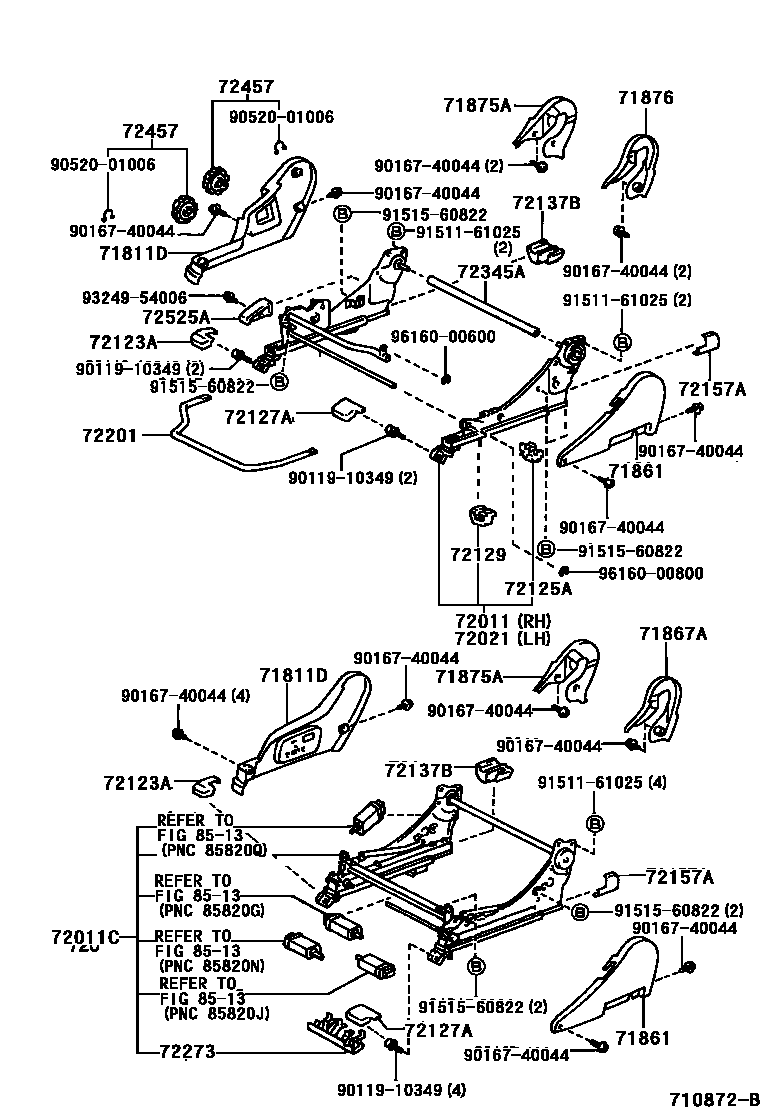

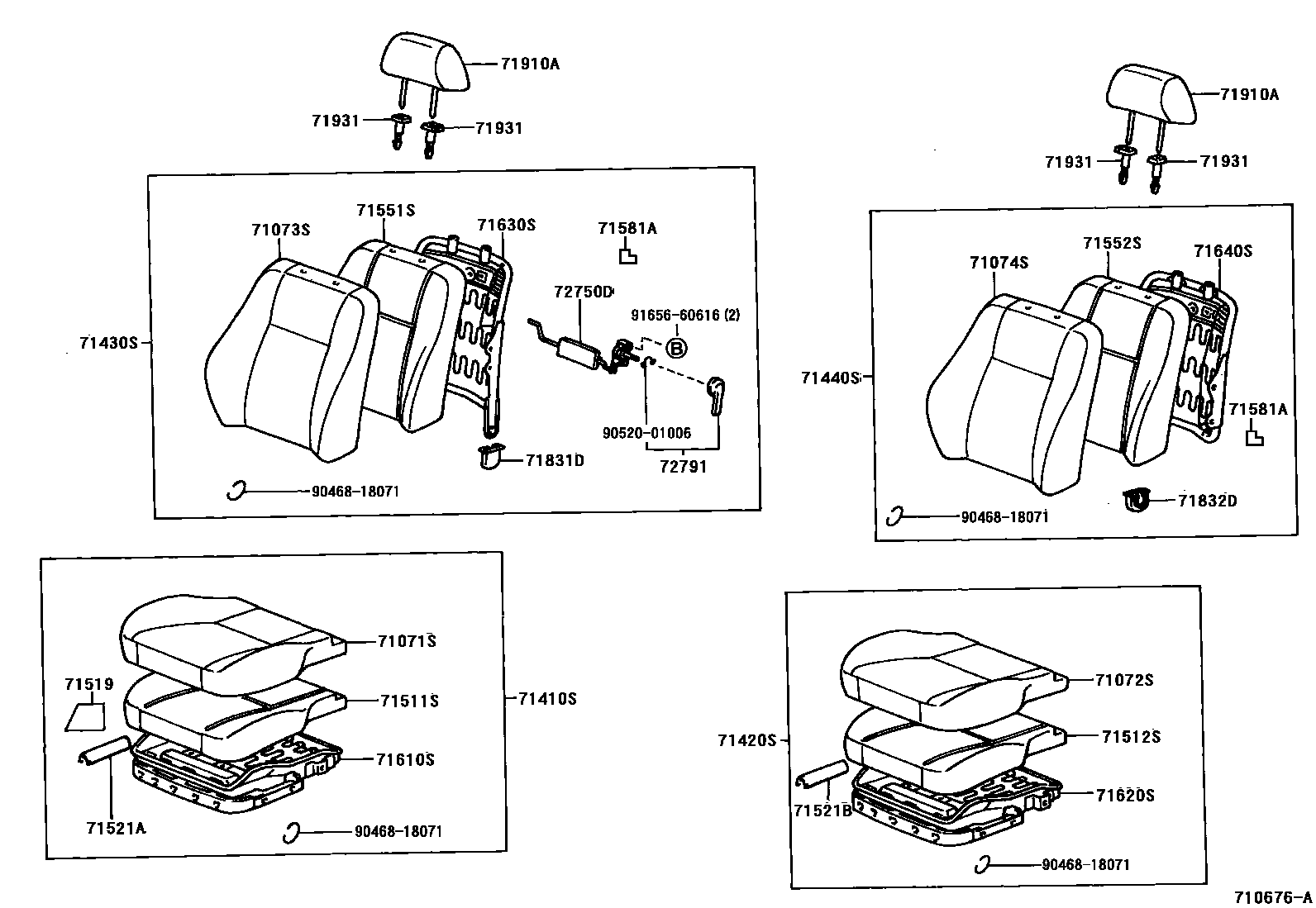

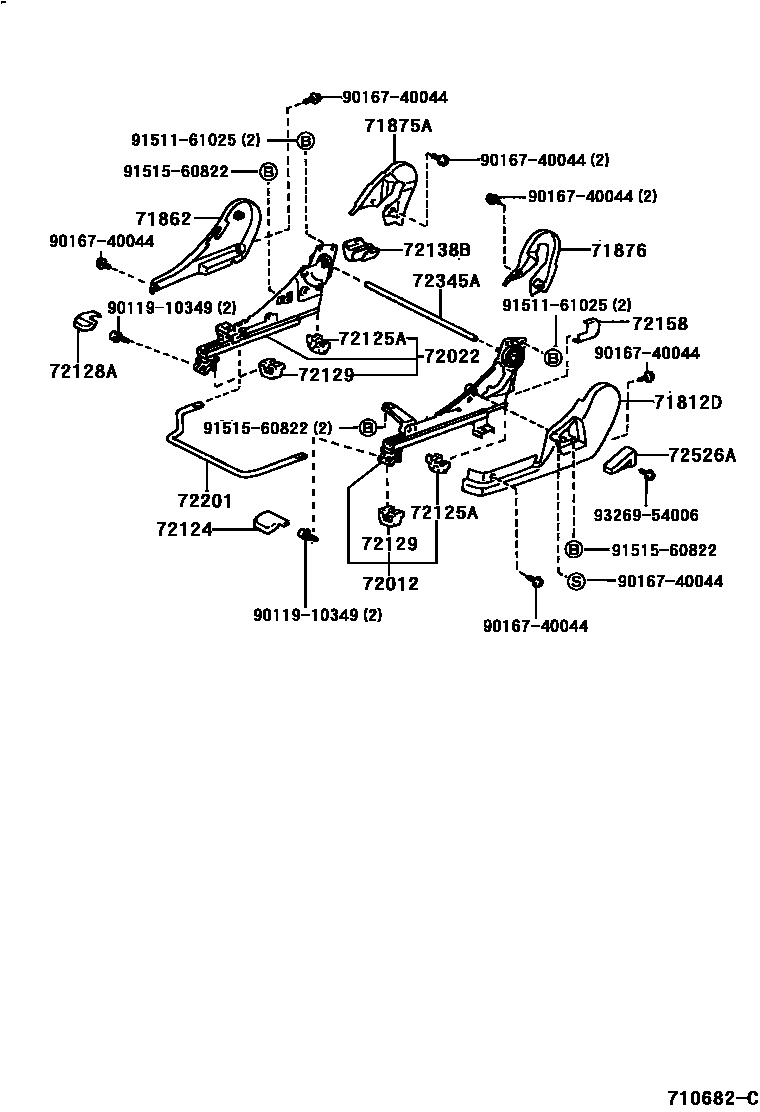

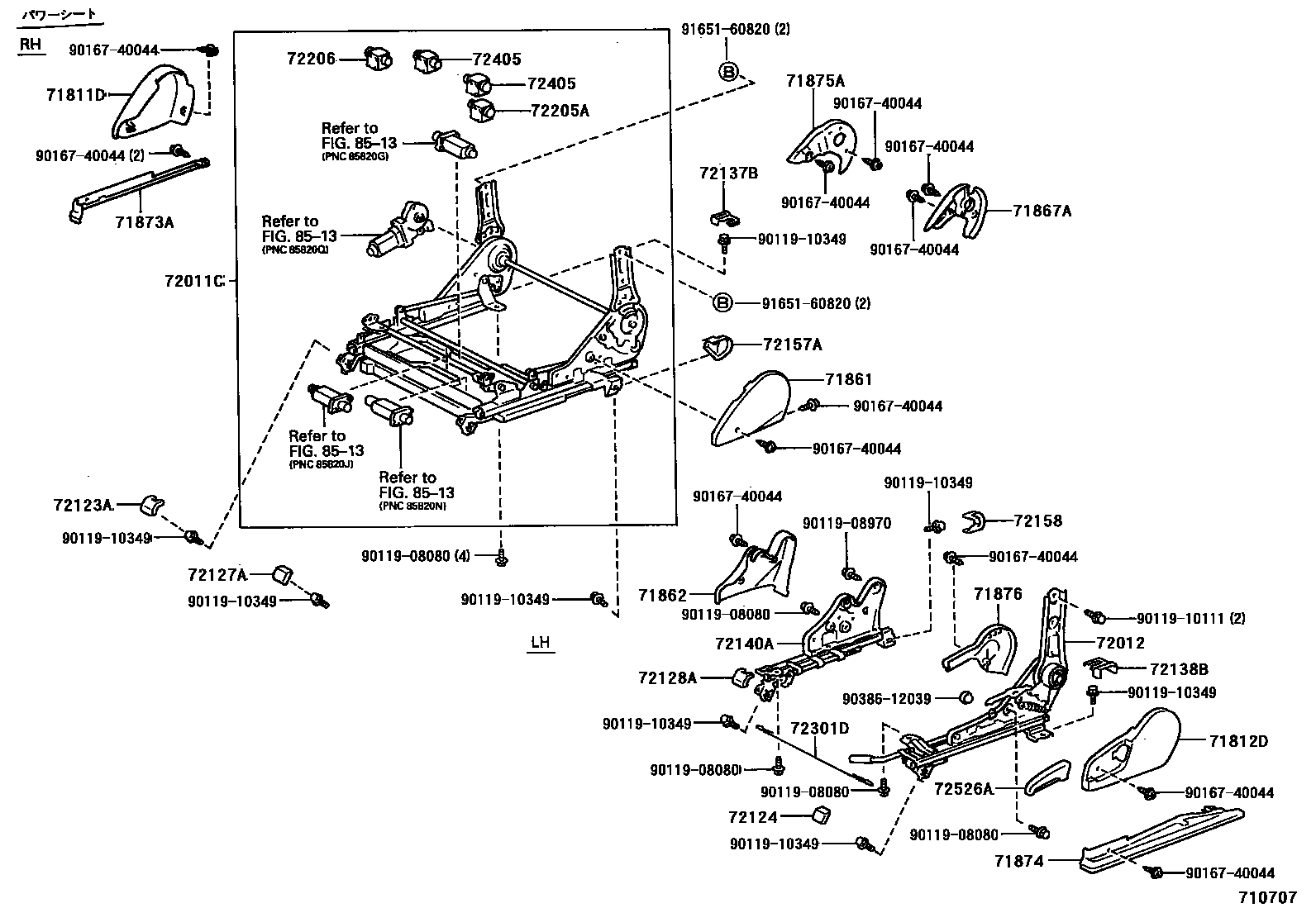

Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101
Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 5 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71511S | Front right seat cushion cushion (for split seats) | 71511-32180 · 71511-32200 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-32180 · 71511-32200 |
| 71519 | Front seat cushion side cushions | 71519-32010 |
| 71521A | Front seat cushion muffler | 71521-32020 |
| 71521B | Front seat cushion muffler | 71521-32020 |
| 71551S | Front right seat back cushion (for split seats) | 71551-32150 · 71551-32170 |
| 71552S | Front left seat back cushion (for split seats) | 71551-32150 · 71551-32170 |
| 71581A | Front A seat back corner cushions | 71581-32020 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-32100 · 71610-32120 · 71610-32130 · 71610-32140 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-32030 · 71620-32040 |
| 71630S | Front right seat back spring assembly (for split seats) | 71013-32210 · 71013-32220 · 71630-32200 · 71630-32210 · 71630-32220 |
| 71640S | Front left seat back spring assembly (for split seats) | 71013-32210 · 71640-32080 |
| 71831D | Front right seat hinge cover | 71831-16010 |
| 71832D | Front left seat hinge cover | 71831-16010 |
| 72011 | Front right seat outer adjuster sub-assembly | 72010-32070 · 72011-32100 |
| 72011C | Front right seat adjuster sub-assembly | 72010-32080 · 72010-32090 |
| 72012 | Front left seat outer adjuster sub-assembly | 72012-32110 · 72020-32050 |
| 72021 | Front right seat inner adjuster sub-assembly | 72021-32100 |
| 72022 | Front left seat inner adjuster sub-assembly | 72022-32090 |
| 72125A | Rear seat upper slide rail cover | 72125-16020 · 72125-33010 |
| 72129 | No. 1 seat slide rail lower rail protective cover | 72129-16010 · 72129-16020 · 72129-33030 |
| 72130A | Front right seat inner slide rail assembly | 72130-32050 |
| 72140A | Front left seat inner slide rail assembly | 72140-32030 |
| 72201 | Seat slide rail handle sub-assembly | 72201-32010 |
| 72205A | No. 1 electric seat shell sub-assembly | 72205-50020 |
| 72206 | No. 2 electric seat shell sub-assembly | 72206-22020 |
| 72273 | Seat slide control cable bracket | 72273-22020 |
| 72301A | Right seat slide rail balance harness sub-assembly | 72301-32030 |
| 72301D | Left seat slide rail balance harness sub-assembly | 72301-32030 |
| 72345A | Seat back recliner connecting tube | 72345-32030 |
| 72405 | Front vertical seat shell sub-assembly | 72405-24020 |
| 72750D | Right lumbar support adjuster assembly | 72750-32060 · 72750-32070 |
