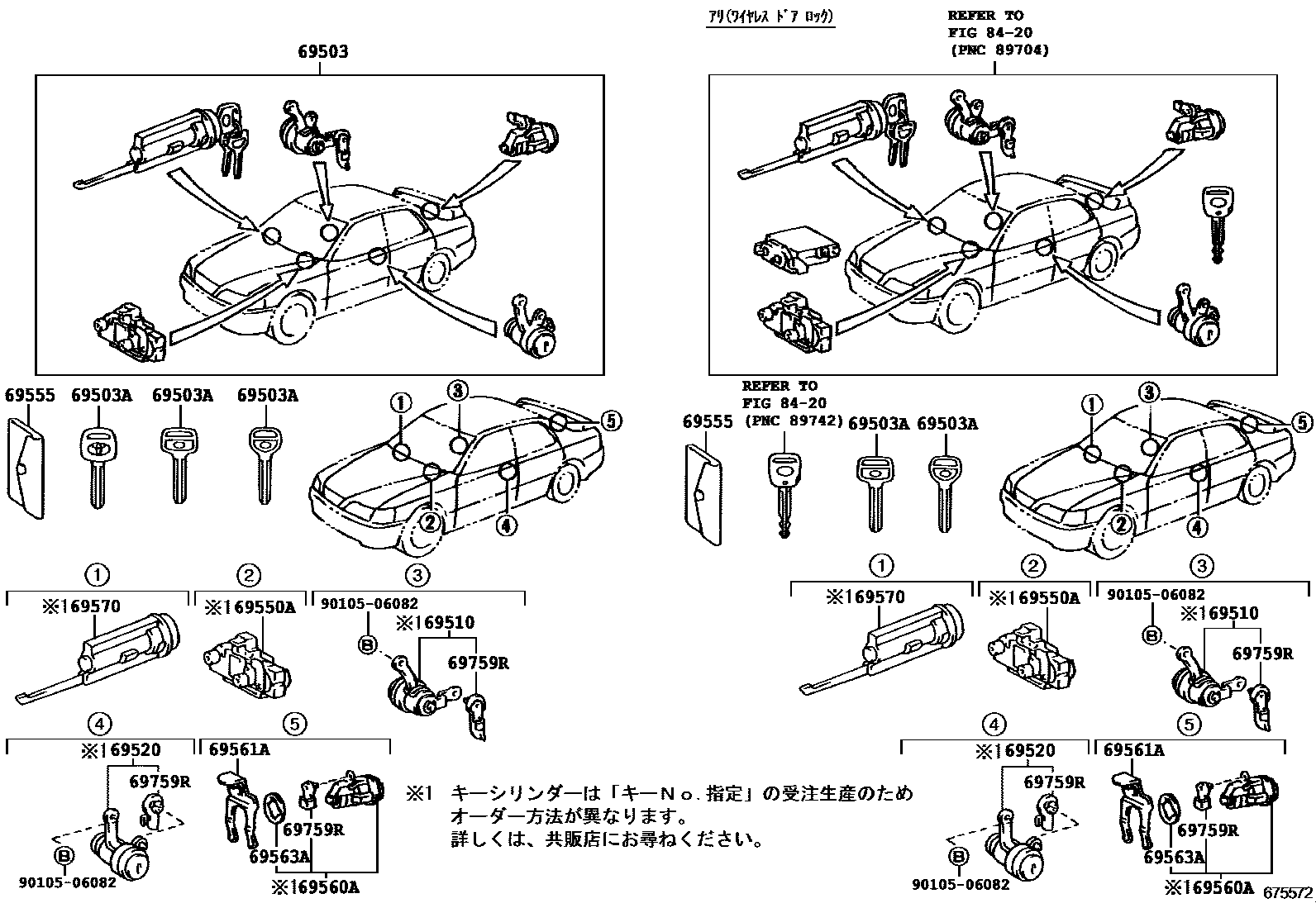

Toyota CAMRY 锁芯组件 — Figure 6712
Toyota CAMRY EPC diagram 6712, 锁芯组件, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69503 | Door lock cylinder components | 69005-32770 · 69005-32780 |
| 69503A | external tooth key | 90999-00185 · 90999-00186 · 90999-00188 |
| 69510 | Right front door lock cylinder assembly | 69510-32150 · 69510-33020 |
| 69520 | Left front door lock cylinder assembly | 69520-32150 · 69520-33030 |
| 69550A | Glove box cover lock cylinder assembly | 69550-32090 |
| 69555 | key cover | 69555-17020 |
| 69560A | Trunk door lock core assembly | 69560-32280 · 69560-32290 |
| 69561A | Luggage lock core fixing parts | 69561-32050 |
| 69563A | Trunk door lock cylinder lining | 69563-20040 |
| 69570 | Ignition switch lock cylinder assembly | 69570-32200 |
| 69759R | Front door lock cylinder buckle | 69759-20080 · 69759-20090 · 69759-32090 · 69759-32100 |
