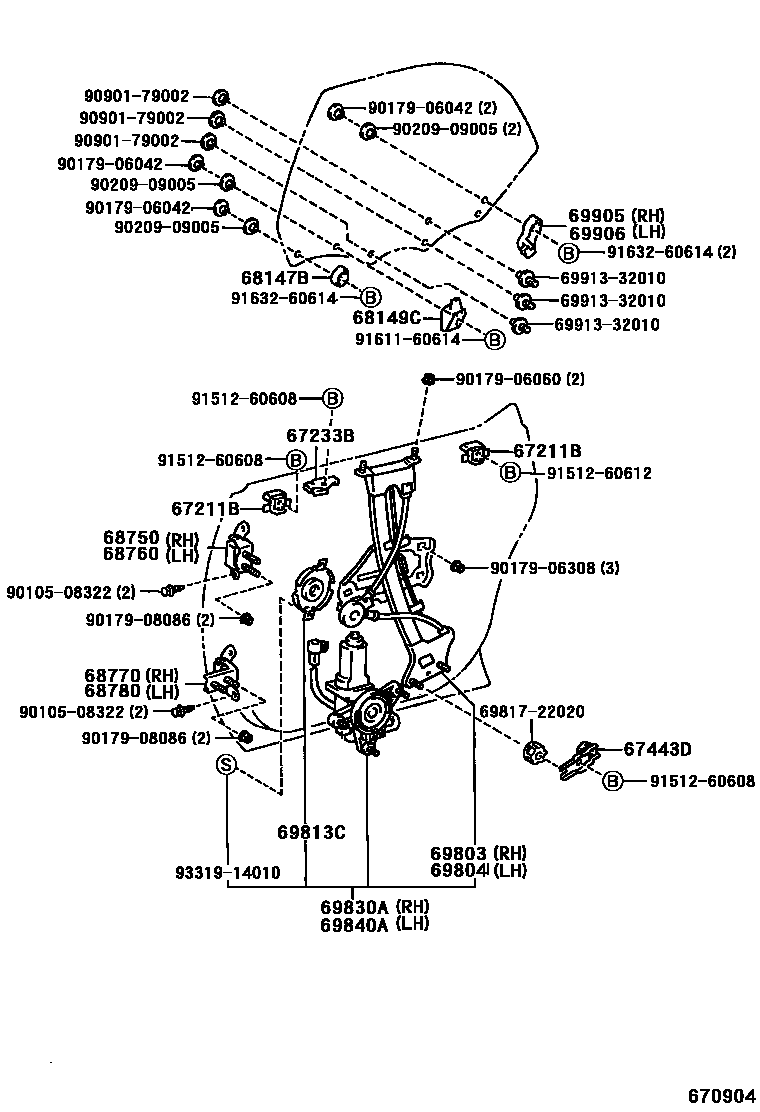

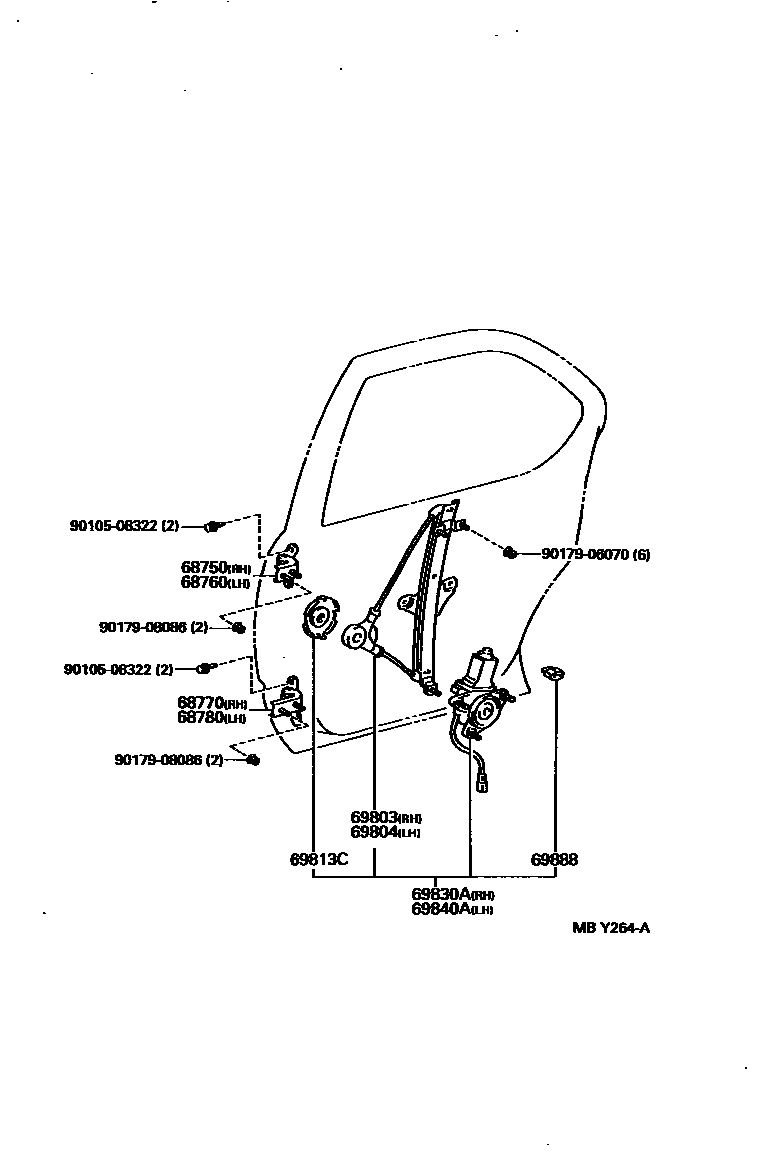

Toyota CAMRY 后门车窗升降器和合页 — Figure 6707
Toyota CAMRY EPC diagram 6707, 后门车窗升降器和合页, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67211B | Rear door window upper block | 67211-22040 |
| 67233B | Rear door trim panel bracket | 67233-32070 |
| 67443D | Rear door window glass lower guide plate | 67443-20080 |
| 68147B | Rear door glass upper stopper | 68147-32020 |
| 68149C | Rear door glass protruding stabilizer | 68149-30010 |
| 68750 | Right rear door upper hinge assembly | 68750-22050 · 68750-32060 |
| 68760 | Left rear door upper hinge assembly | 68760-22040 · 68760-32060 |
| 68770 | Right rear door lower hinge assembly | 68770-22020 · 68770-32070 |
| 68780 | Left rear door lower hinge assembly | 68780-22020 · 68780-32060 |
| 69803 | Right rear door window lifter sub-assembly | 69803-32070 · 69803-32080 |
| 69804 | Left rear door window lifter sub-assembly | 69804-32070 · 69804-32080 |
| 69813C | Rear door power window lift base plate | 69813-32020 · 69813-32040 · 69814-32010 · 69814-32020 |
| 69830A | Right rear door window lift assembly | 69830-32110 · 69830-32120 |
| 69840A | Left rear door window lift assembly | 69840-32110 · 69840-32120 |
| 69888 | No. 2 window lift glass bracket cushion pad | 69888-33011 |
| 69905 | Right rear door glass bracket sub-assembly | 69905-32050 |
| 69906 | Left rear door glass bracket sub-assembly | 69906-32040 |
