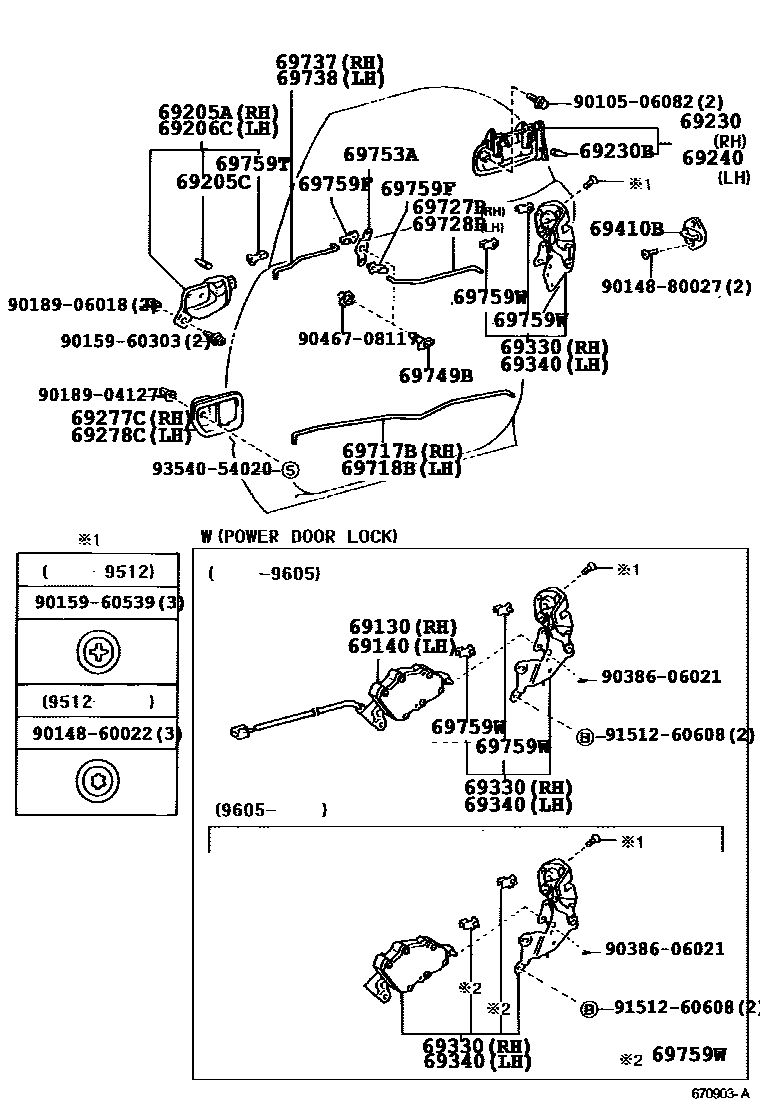

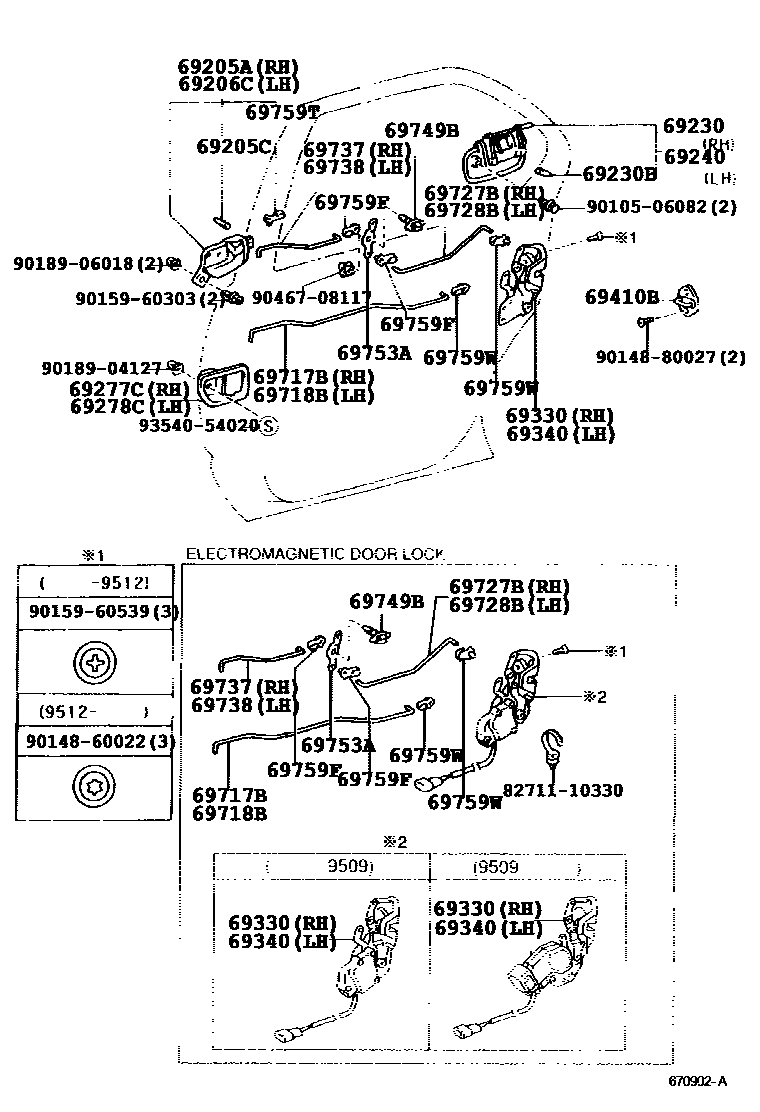

Toyota CAMRY 后门锁和后门把手 — Figure 6706
Toyota CAMRY EPC diagram 6706, 后门锁和后门把手, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69130 | Right rear door lock actuator assembly | 69130-32060 |
| 69140 | Left rear door lock actuator assembly | 69140-32060 |
| 69205C | Cushion pad (for rear door inner handle) | 90541-04014 |
| 69230B | Cushion pad (for rear door outer handle) | 90541-04014 |
| 69330 | Right rear door door lock assembly | 69050-32220 · 69305-32040 · 69305-32041 · 69305-32050 · 69305-32051 · 69305-32060 · 69305-32070 · 69330-32330 · 69330-32331 · 69330-32340 · 69330-32341 · 69330-32360 |
| 69340 | Left rear door lock assembly | 69060-32220 · 69306-32040 · 69306-32041 · 69306-32050 · 69306-32051 · 69306-32060 · 69306-32070 · 69340-32330 · 69340-32331 · 69340-32340 · 69340-32341 · 69340-32360 |
| 69410B | Rear door lock plate assembly | 69410-87001 |
| 69717B | Right rear door lock remote control lever | 69713-32080 · 69713-32090 |
| 69718B | Left rear door lock remote control lever | 69714-32080 · 69714-32090 |
| 69727B | Right rear door No. 2 inner locking link | 69727-32050 · 69727-32060 · 69727-32070 · 69727-32080 |
| 69728B | Left rear door No. 2 inner locking link | 69728-32050 · 69728-32060 · 69728-32070 · 69728-32080 |
| 69737 | Right rear door inner locking link | 69737-32080 · 69737-32100 |
| 69738 | Left rear door inner locking link | 69738-32080 · 69738-32100 |
| 69749B | Rear door lock link clamp | 69749-32030 |
| 69753A | Door lock control right angle lever | 69753-32070 |
| 69759F | Rear door lock control link buckle | 69759-20380 · 69759-24030 |
| 69759T | Rear door inner handle buckle | 69759-14050 · 69759-24070 |
| 69759W | Rear door lock control link buckle | 69759-24050 · 69759-24060 |
