Toyota CAMRY 后门板和后门玻璃 — Figure 6705

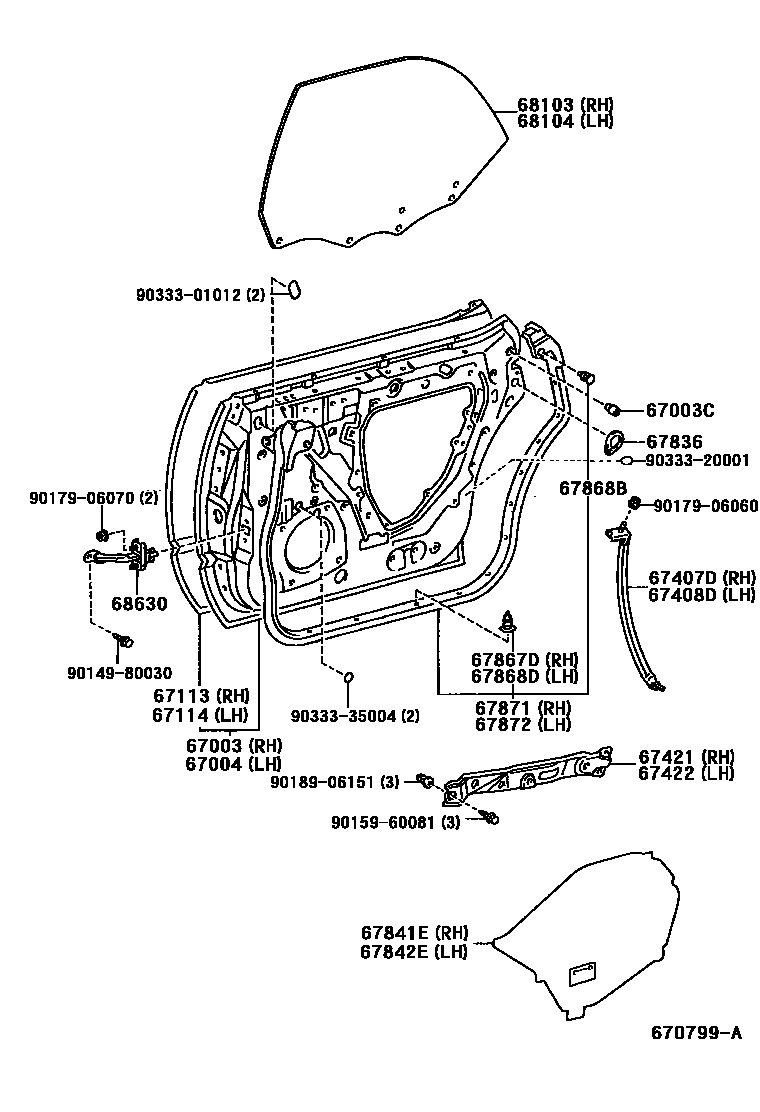

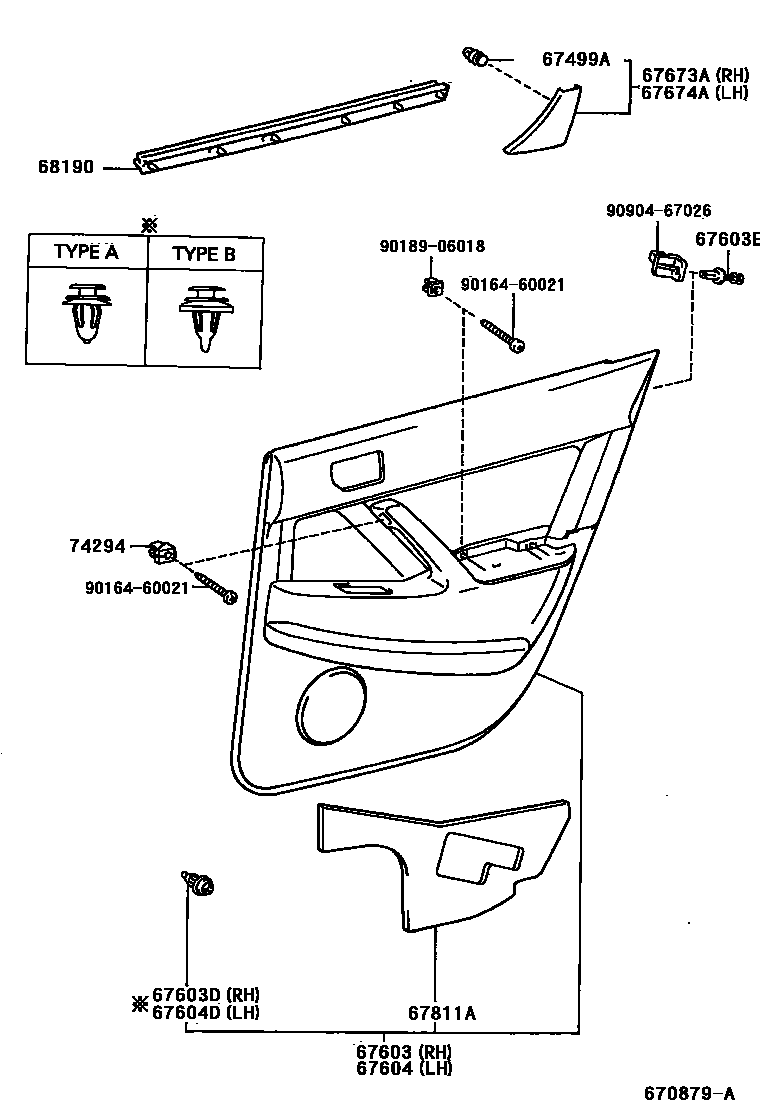

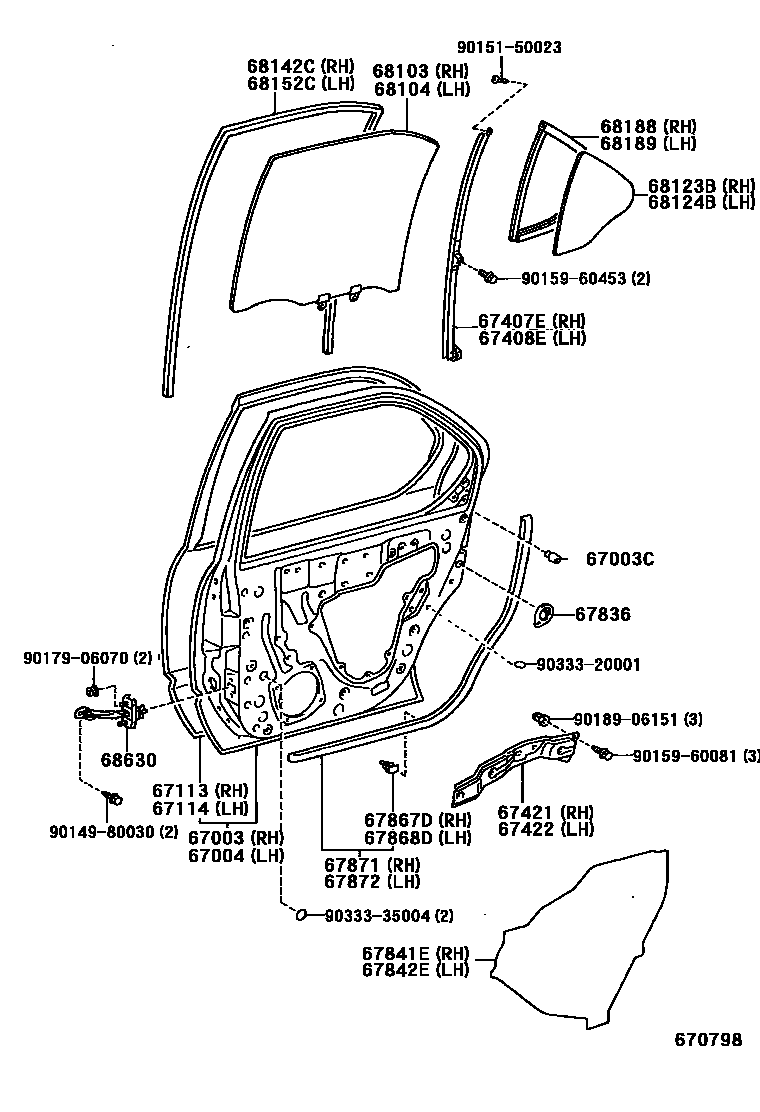

Toyota CAMRY EPC diagram 6705, 后门板和后门玻璃, with 3 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-32330 · 67003-32340 |
| 67003C | Rear door panel cushion | 90541-09006 |
| 67004 | Left rear door panel sub-assembly | 67004-32330 · 67004-32340 |
| 67113 | Right rear door outer panel | 67113-32110 · 67113-32120 |
| 67114 | Left rear door outer panel | 67114-32110 · 67114-32120 |
| 67407D | Right rear door window glass rear guide channel sub-assembly | 67407-32090 |
| 67407E | Right rear door window divider sub-assembly | 67407-32080 |
| 67408D | Left rear door window glass rear guide channel sub-assembly | 67408-32090 |
| 67408E | Left rear door window divider sub-assembly | 67408-32080 |
| 67421 | Right rear door window front upper frame | 67421-32070 · 67421-32080 |
| 67422 | Left rear door window front upper frame | 67422-32070 · 67422-32080 |
| 67499A | Rear door lower door frame bracket trim strip fixing | 67771-17020 |
| 67603D | Right rear door trim panel fixing | 67771-12050 · 67771-32140 |
| 67604D | Left rear door trim panel fixing | 67771-12050 · 67771-32140 |
| 67673A | Right rear door frame decorative strip | 67673-32010 |
| 67674A | Left rear door frame decorative strip | 67674-32010 |
| 67811A | Rear door silencer pad | 67812-32030 |
| 67836 | Right rear door lock child restraint cover | 67836-32010 |
| 67841E | Right rear door access hole cover | 67841-32110 · 67841-32120 |
| 67842E | Left rear door access hole cover | 67842-32080 · 67842-32090 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868B | Door glass seal strip clip (for rear door) | 67869-30020 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-32110 · 67871-32120 |
| 67872 | Left rear door sealing strip | 67872-32110 · 67872-32120 |
| 68103 | Right rear door glass sub-assembly | 68103-32170 · 68103-32180 · 68103-32190 · 68103-32200 · 68103-32220 · 68103-32240 |
| 68104 | Left rear door glass sub-assembly | 68104-32170 · 68104-32180 · 68104-32190 · 68104-32200 · 68104-32220 · 68104-32240 |
| 68123B | Right rear door corner window glass | 68123-32040 · 68123-32050 · 68123-32070 |
| 68124B | Left rear door corner window glass | 68124-32040 · 68124-32050 · 68124-32070 |
| 68142C | Right rear door glass lift slot | 68142-32080 |
| 68152C | Left rear door glass lift slot | 68152-32040 |
| 68188 | Right rear door corner window seal | 68188-32020 |
| 68189 | Left rear door corner window seal | 68189-32020 |
| 68190 | Rear door glass inner sealing strip assembly | 68173-32010 · 68190-32070 · 68240-32050 |
| 68630 | Rear door opening limiter assembly | 68630-32080 · 68630-32090 · 68640-32020 · 68640-32050 |
| 74294 | No. 2 rear door armrest panel | 74294-32010 |
