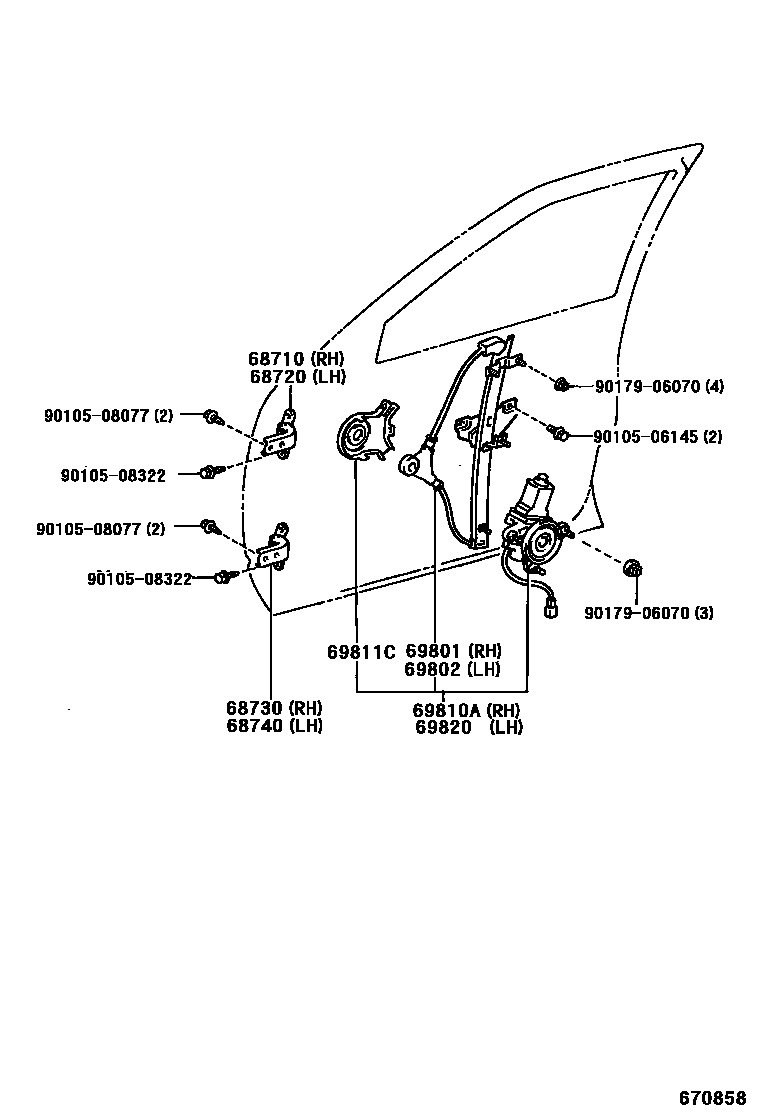

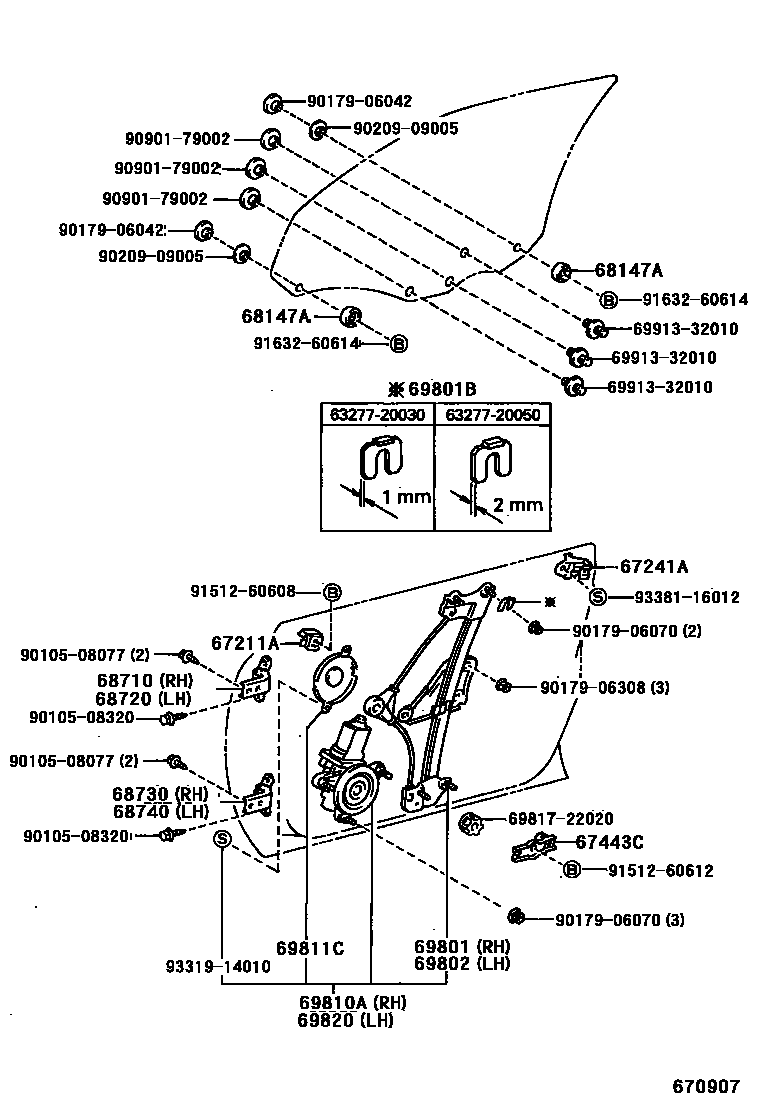

Toyota CAMRY 前门车窗升降器和合页 — Figure 6704
Toyota CAMRY EPC diagram 6704, 前门车窗升降器和合页, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67211A | Front door window upper block | 67211-22040 |
| 67241A | Door glass inner stabilizer | 67235-32030 · 67236-32010 |
| 67443C | Front door window glass guide channel lower panel | 67443-20080 |
| 68147A | Front door glass upper stopper | 68147-20040 |
| 68710 | Right front door upper hinge assembly | 68710-32060 |
| 68720 | Left front door upper hinge assembly | 68720-32060 |
| 68730 | Right front door lower hinge assembly | 68720-32060 |
| 68740 | Left front door lower hinge assembly | 68710-32060 |
| 69801 | Right front door window lifter sub-assembly | 69801-32080 · 69801-32090 |
| 69801B | Window lift gasket | 63277-20030 · 63277-20050 |
| 69802 | Left front door window lifter sub-assembly | 69802-32080 · 69802-32090 |
| 69810A | Right front door window lift assembly | 69810-32130 · 69810-32140 · 69810-32150 · 69810-32160 |
| 69811C | Front door power window lift base plate | 69811-22120 · 69811-32050 · 69812-22030 |
| 69820 | Left front door window lift assembly | 69820-32130 · 69820-32140 |
