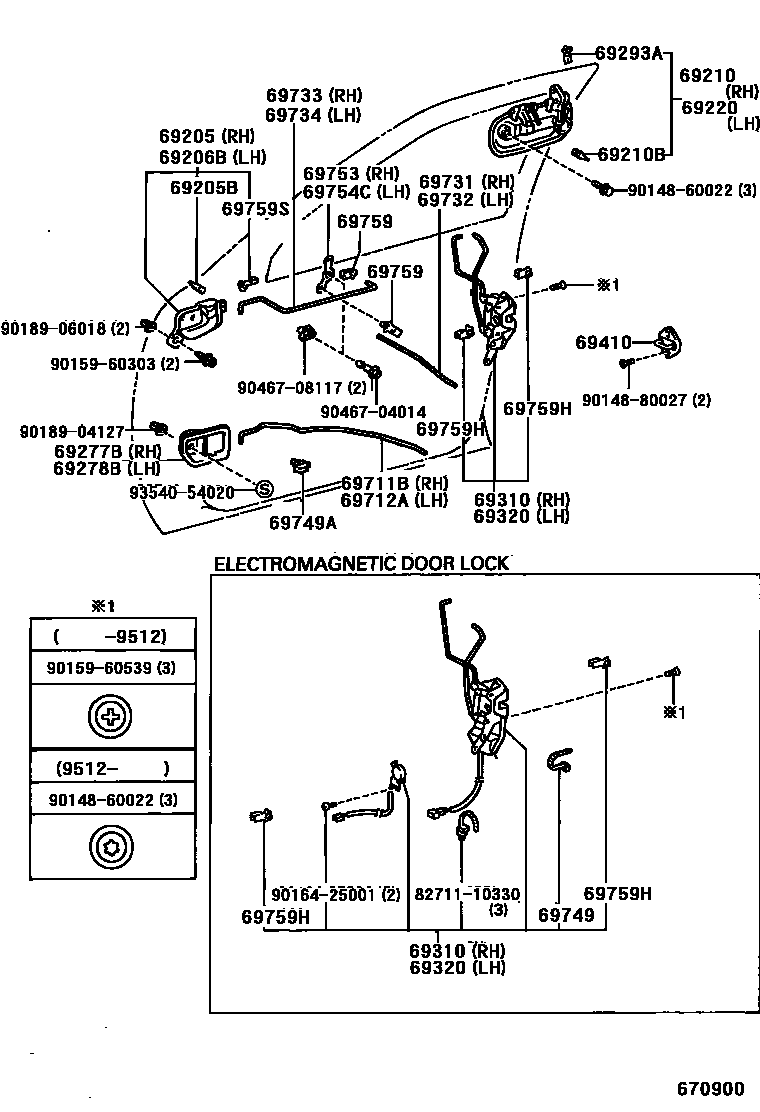

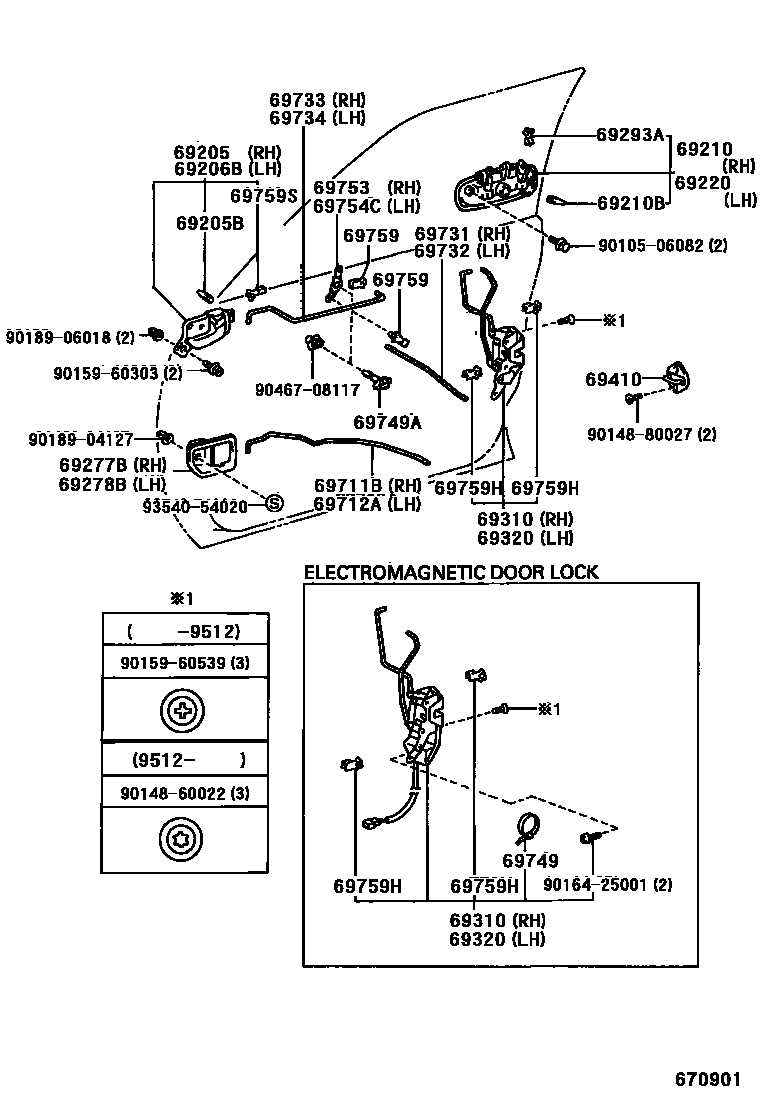

Toyota CAMRY 前门锁和车门把手 — Figure 6703
Toyota CAMRY EPC diagram 6703, 前门锁和车门把手, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69205B | Cushion pad (for inner front door handle) | 90541-04014 |
| 69210B | Cushion pad (for front door outer handle) | 90541-04014 |
| 69293A | Front door outer handle buckle | 69293-12030 · 69293-12040 · 69293-12050 · 69293-12060 |
| 69310 | Right front door lock assembly | 69030-32270 · 69030-32280 · 69310-32410 · 69310-32420 |
| 69320 | Left front door lock assembly | 69040-32260 · 69040-32270 · 69320-32400 · 69320-32410 |
| 69410 | Front door lock plate assembly | 69410-87001 |
| 69711B | Right front door lock remote control lever | 69711-32080 · 69711-32090 |
| 69712A | Left front door lock remote control lever | 69712-32070 · 69712-32080 |
| 69731 | Right front door No. 1 inner locking link | 69731-32020 · 69731-32040 |
| 69732 | Left front door No. 1 inner locking link | 69732-32020 · 69732-32040 |
| 69733 | Right front door inner locking link | 69733-32070 · 69733-32080 |
| 69734 | Left front door inner locking link | 69734-32070 · 69734-32080 |
| 69749 | Front door lock link clip | 69749-32020 |
| 69749A | Front door lock No. 1 link clamp | 69749-32030 · 69749-50010 |
| 69753 | Right-hand door lock control right-angle lever | 69753-20070 · 69753-32040 |
| 69754C | Left door lock control right angle lever | 69753-20070 · 69754-32040 |
| 69759 | Rear door lock No. 1 control link buckle | 69759-20380 · 69759-24030 · 69759-24040 |
| 69759H | Rear door lock No. 2 control link buckle | 69759-24010 · 69759-24020 · 69759-24050 · 69759-24060 |
| 69759S | Front door inner handle buckle | 69759-14050 · 69759-24070 |
