Toyota CAMRY 前门板和前门玻璃 — Figure 6701

Toyota CAMRY EPC diagram 6701, 前门板和前门玻璃, with 3 images and 37 PNC and OE references.

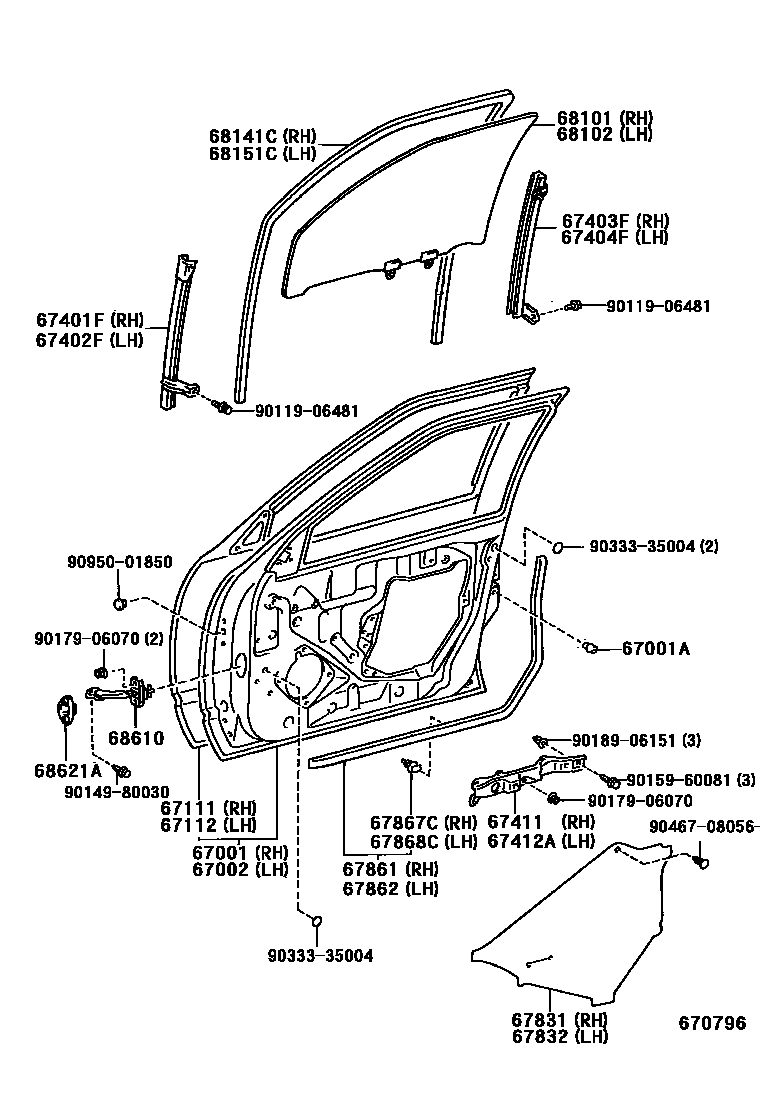

Toyota CAMRY 前门板和前门玻璃 EPC diagram — 670796
前门板和前门玻璃 — 670796 (199406 – 999999)

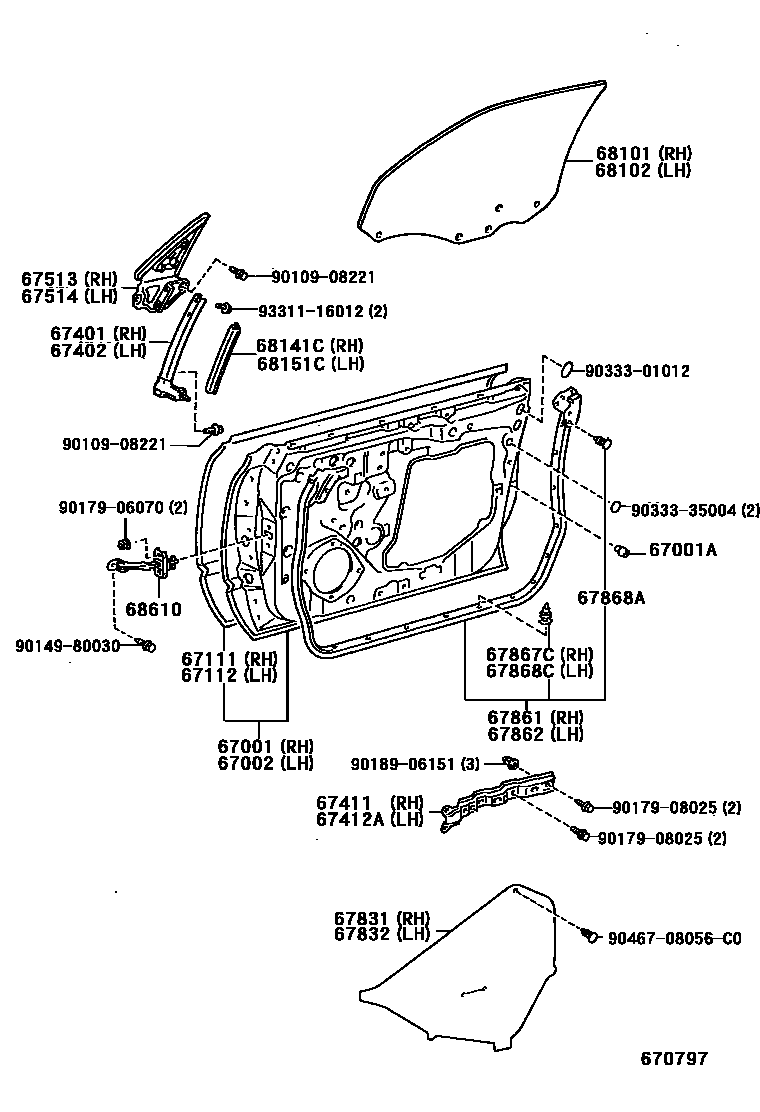

Toyota CAMRY 前门板和前门玻璃 EPC diagram — 670797
前门板和前门玻璃 — 670797 (199406 – 999999)

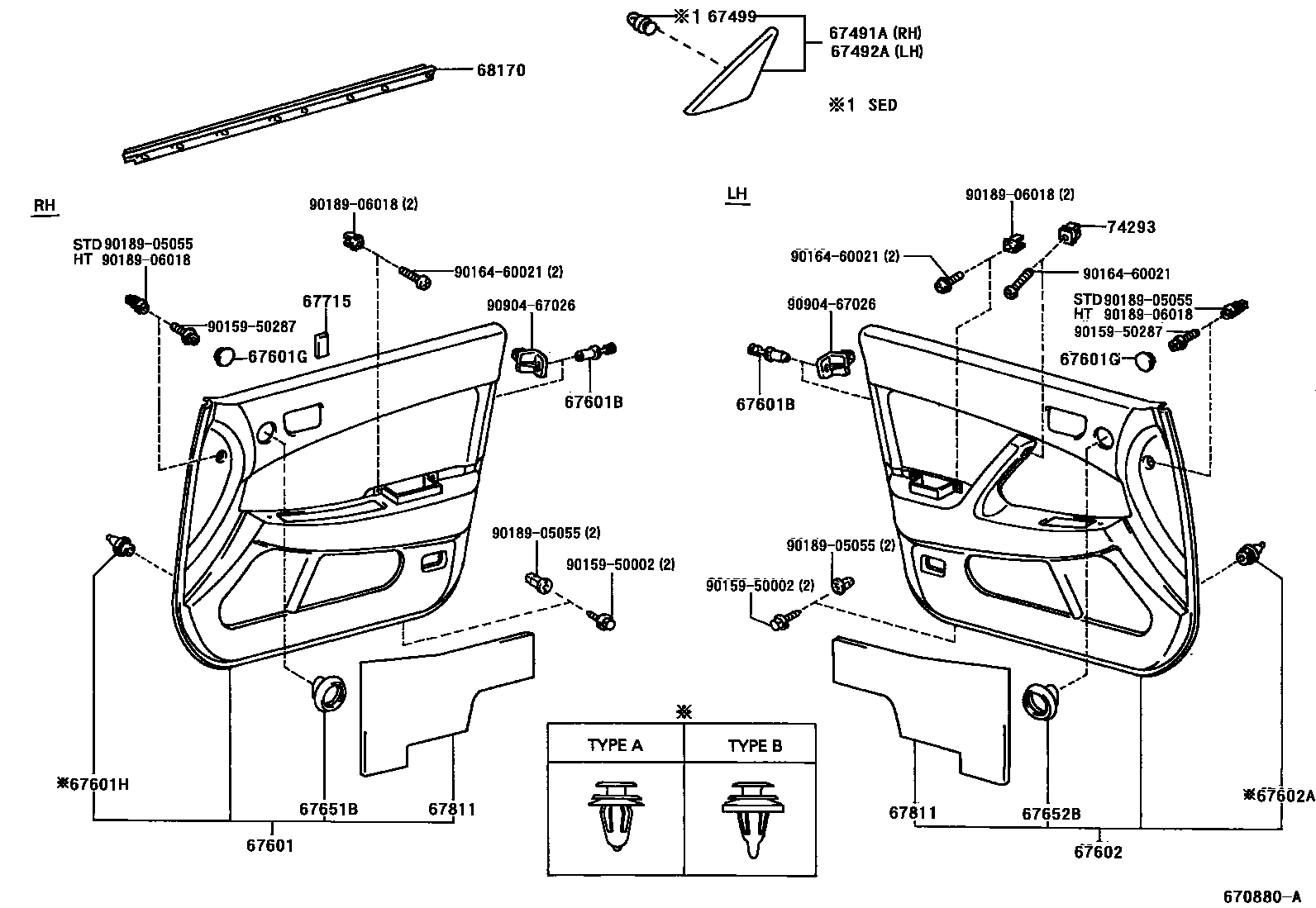

Toyota CAMRY 前门板和前门玻璃 EPC diagram — 670880A
前门板和前门玻璃 — 670880A (199406 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-32340 · 67001-32341 · 67001-32342 · 67001-32350 · 67001-32351
67001AFront door panel cushion90541-09006 · 90541-09091
67002Left front door panel sub-assembly67002-32290 · 67002-32300
67111Outer right front door panel67111-32110 · 67111-32120
67112Outer left front door panel67112-32110 · 67112-32120
67401Right front door window front stay sub-assembly67401-32140
67401FRight front door front lower door frame sub-assembly67401-32130 · 67401-32131
67402Left front door window front stay sub-assembly67402-32140
67402FLeft front door front lower door frame sub-assembly67402-32130 · 67402-32131
67403FRight front door rear lower door frame sub-assembly67403-32070
67404FLeft front door rear lower door frame sub-assembly67404-32070
67411Right front door window upper frame67411-32060 · 67411-32061 · 67411-32070
67412ALeft front door upper window frame67412-32060 · 67412-32070
67491ARight front door lower door frame bracket decorative strip67491-32130 · 67491-32140
67492ALeft front door lower door frame bracket decorative strip67492-32130 · 67492-32140
67499Front door lower door frame bracket trim strip fixing67771-30070
67513Right front door mirror bracket67513-32040 · 67513-32041
67514Left front door mirror bracket67514-32040
67601HRight door trim panel fixing67771-12050 · 67771-32140
67602ALeft door trim panel fixing67771-12050 · 67771-32140
67715Door decorative mat No. 167713-32040
67811Front door silencer pad67811-32040
67831Right front door access hole cover67831-32140 · 67831-32150
67832Left front door access hole cover67832-32120 · 67832-32130
67861Right front door seal67861-32150 · 67861-32160
67862Left front door seal67862-32150 · 67862-32160
67867CRight front door seal strip fixing67867-12150
67868ADoor glass seal strip clip (for front door)67869-30020
67868CLeft front door seal strip fixing67867-12150
68101Right front door glass sub-assembly68101-32140 · 68101-32150 · 68101-32160 · 68101-32170 · 68101-32190 · 68101-32210
68102Left front door glass sub-assembly68102-32140 · 68102-32150 · 68102-32160 · 68102-32170 · 68102-32190 · 68102-32210
68141CRight front door glass lift channel68141-32110 · 68141-32120
68151CLeft front door glass lift channel68141-32120 · 68151-32040
68170Front door glass inner sealing strip assembly68170-32100 · 68171-32020 · 68172-32020 · 68220-32110
68610Front door opening limiter assembly68610-32090 · 68610-32091 · 68620-32020 · 68620-32021
68621ARight front door opening limiter cover68621-32020
74293No. 1 front door armrest panel74294-32010
